* Storage: 1x 5.25" ODD & 1x 3.5" F/HDD at front, 1x 3.5" HDD or 2x 2.5" SSD at rear

* The main structure of the sheet metal is made of 1.0mm thick SGCC patternless

* Four USB 2.0 ports at front bezel

* Support 1U FlexATX 250W~600W power supply with PFC (max. PSU depth at 150mm)

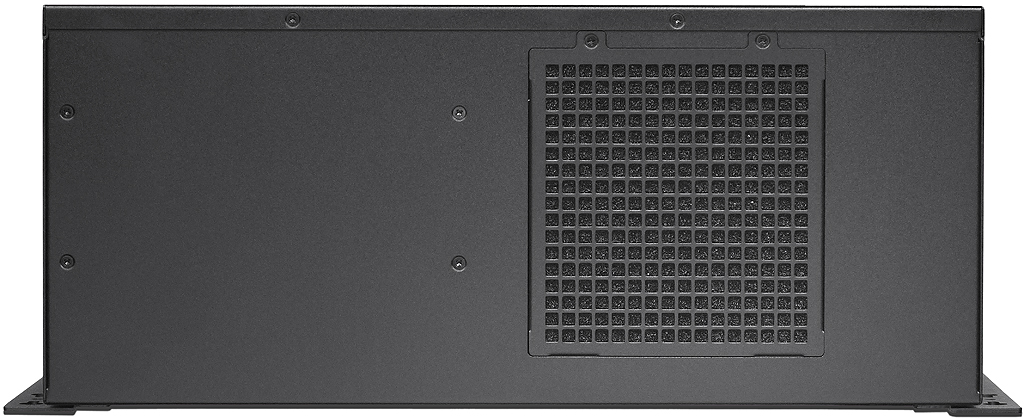

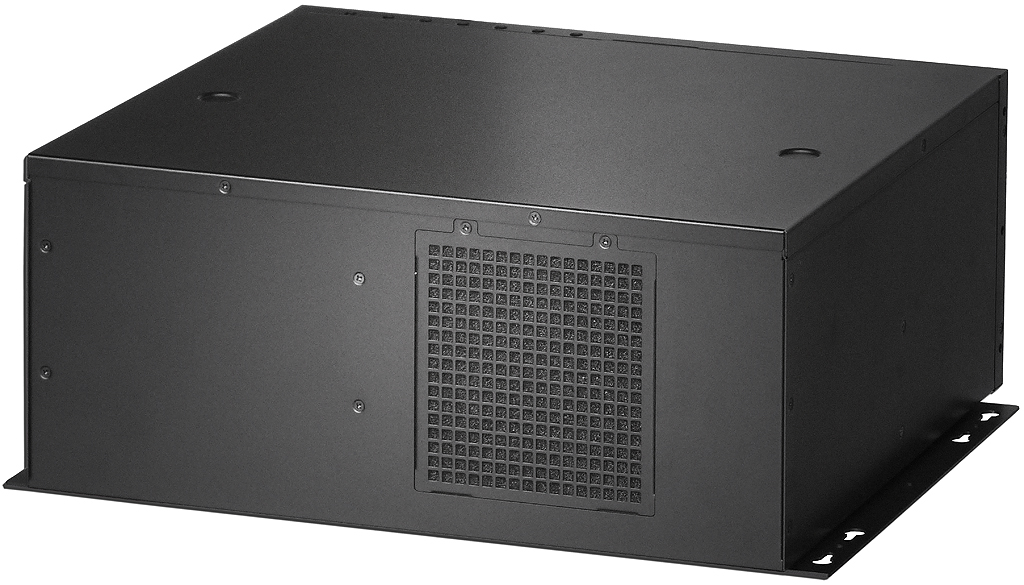

* Equipped with removable dust filter & shield at rear panel as standard

* One intake 120mmx25mm fan at rear (fan part# D12SM-12, CFM @59)

* Maximum 270mm deep 7 cards installable if one 3.5" HDD installed at rear

* Maximum 280mm deep 7 cards installable if two 2.5" SSD installed at rear

* Compatible MB: ATX(12"x9.6"), MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")

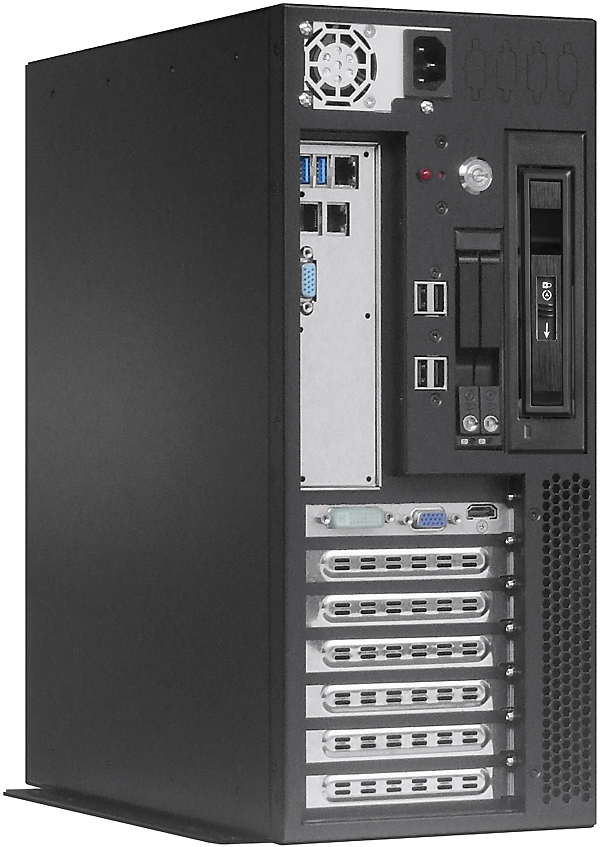

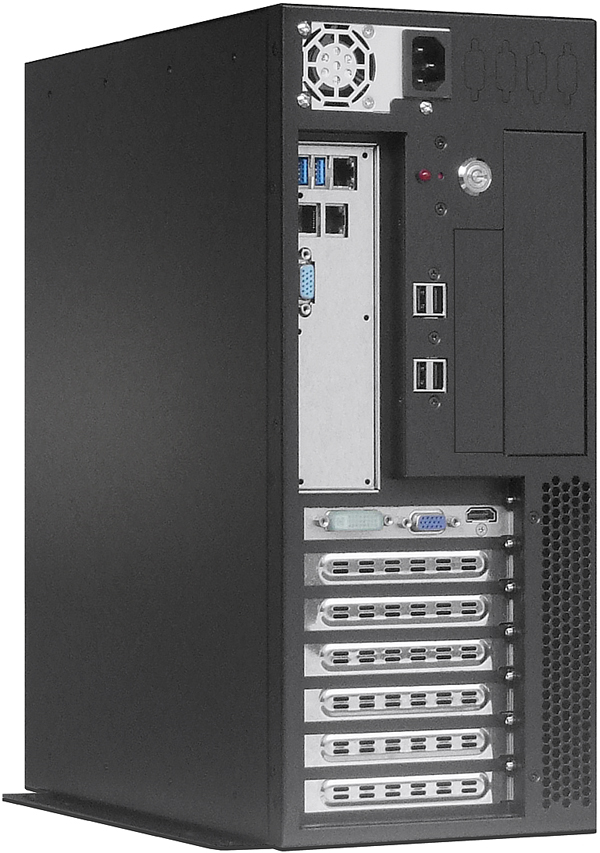

* Compatible with DeskTop, MiniTower, and wall-mounted platform solution

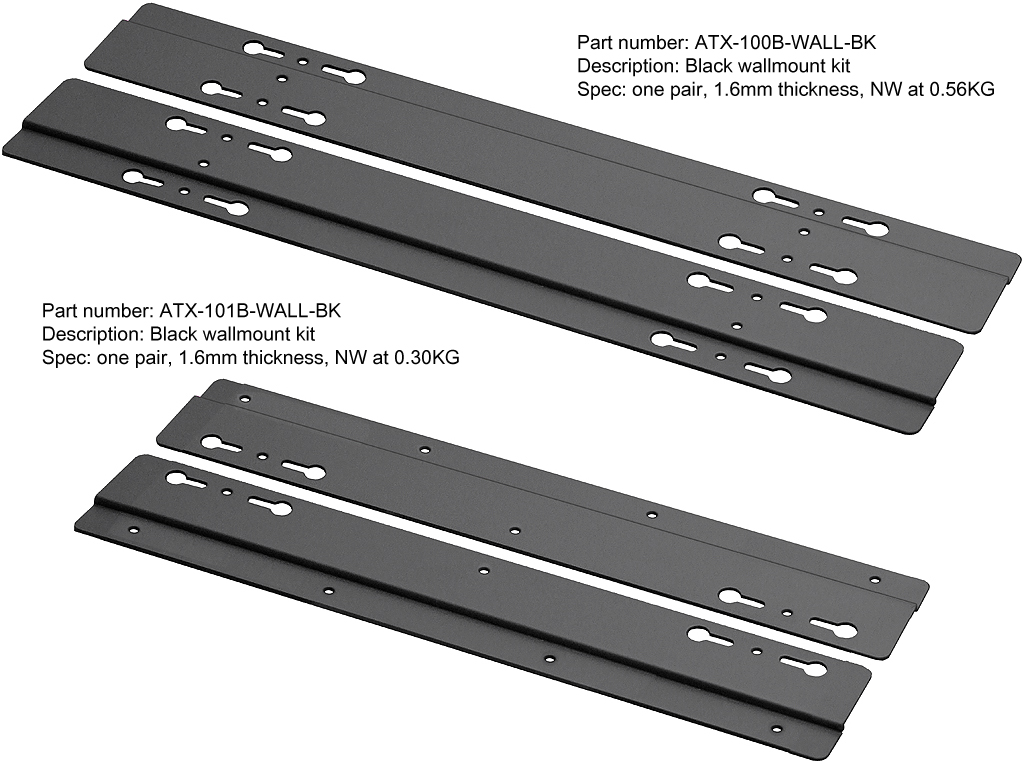

* Black wallmount kit as option (part# ATX-101B-WALL-BK, one pair)

* Standard paint: scratch-resistant Black textured paint on surface of chassis
* Genesys Group chassis with build-in electronics in global 3 years warranty
* Chassis dimension: D.320 x W.375 x H.160 /mm

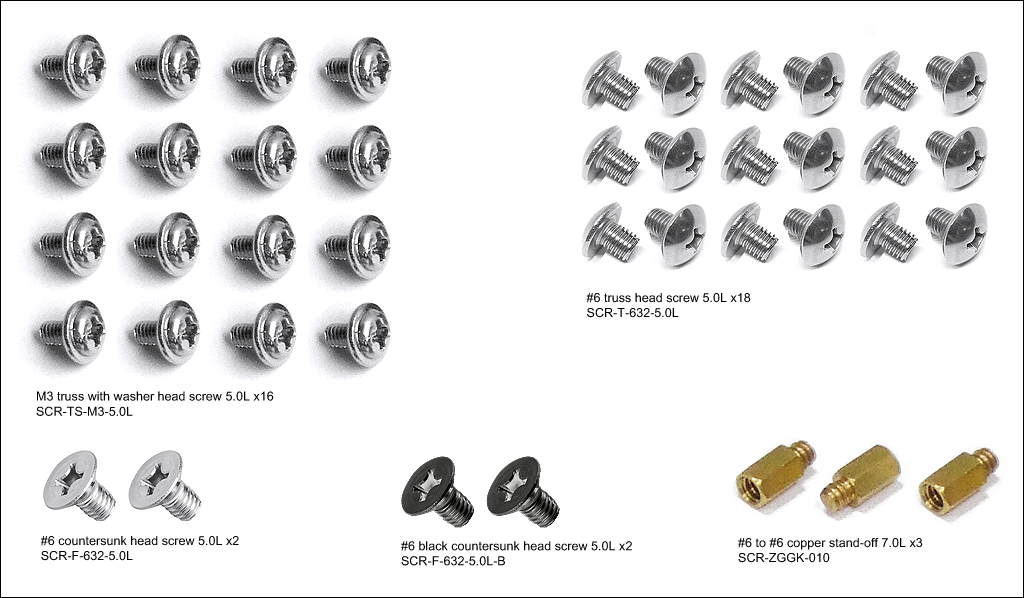

* Accessory: various screw x38, #6 MB copper stand-off x3

* Package: NW 5 KGM, GW 7 KGM, 1.97 CUFT (carton size at 51x45.5x24cm)

Model#

:

ATX-101B

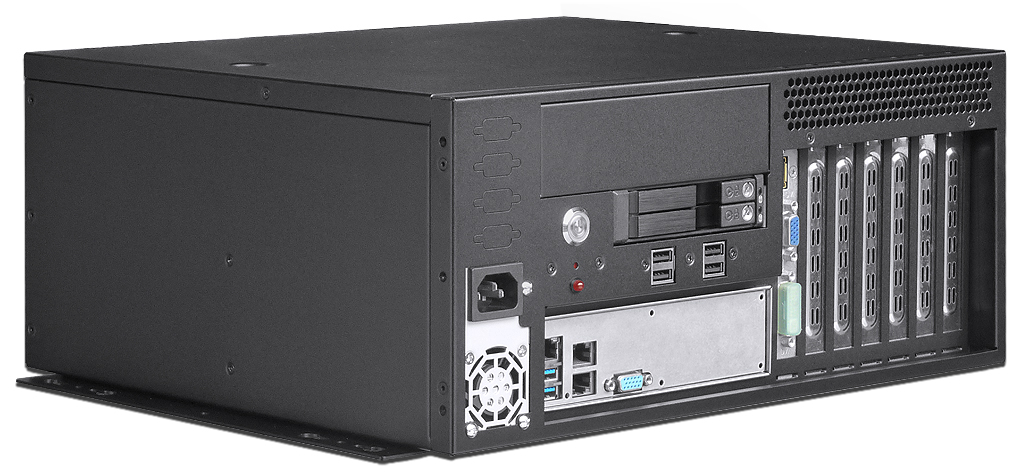

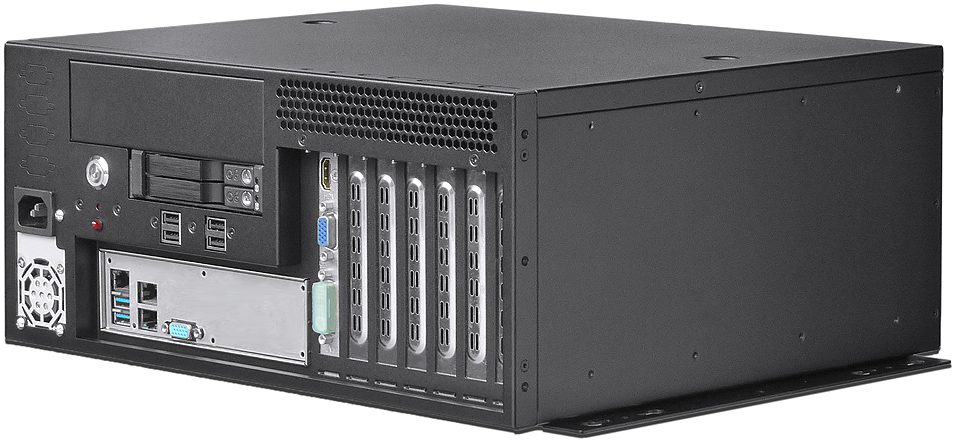

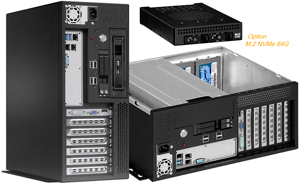

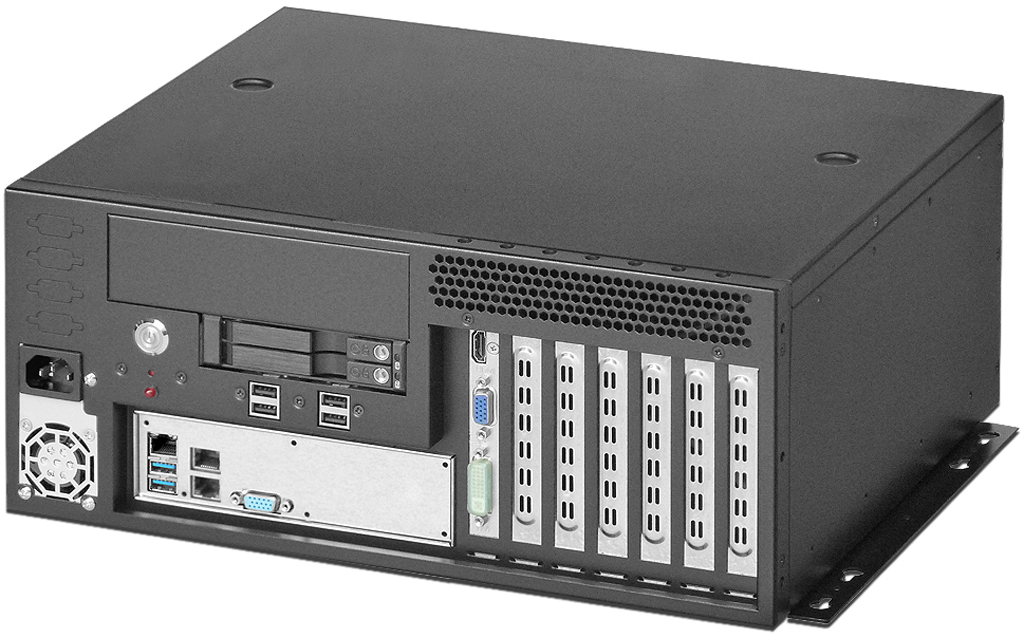

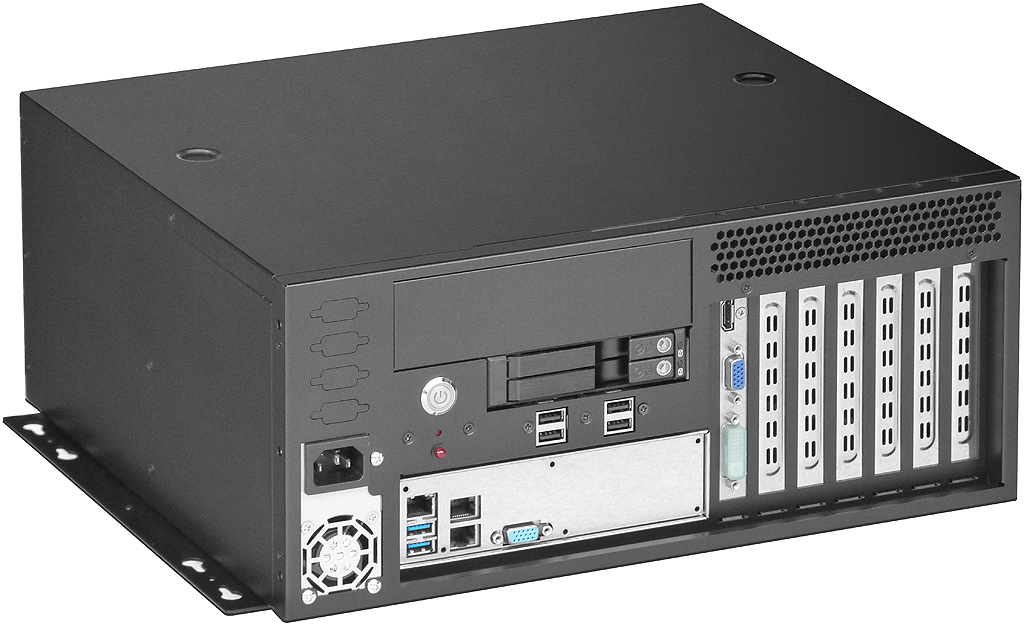

GPU ATX desktop-minitower-wallmount chassis

Option A

:

Option B-1

:

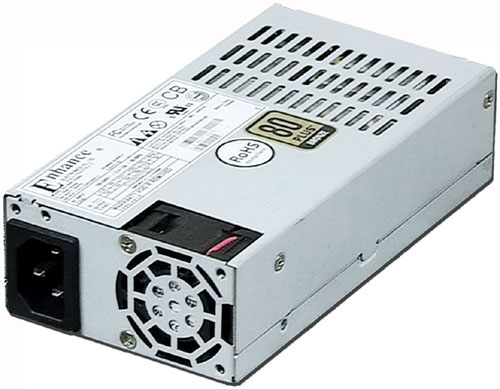

ENP-7025B

1U FlexATX 250W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option B-2

:

ENP-7130B

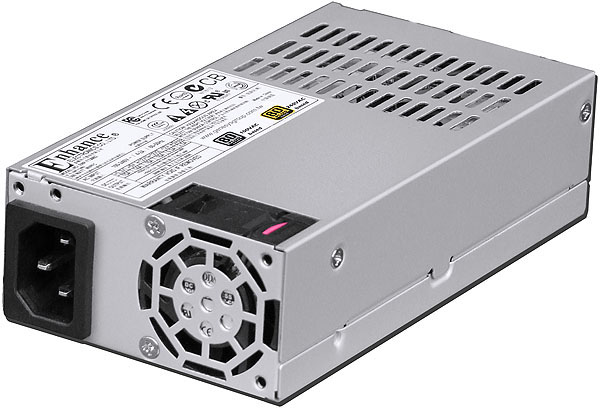

1U FlexATX 300W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option B-3

:

ENP-7140B

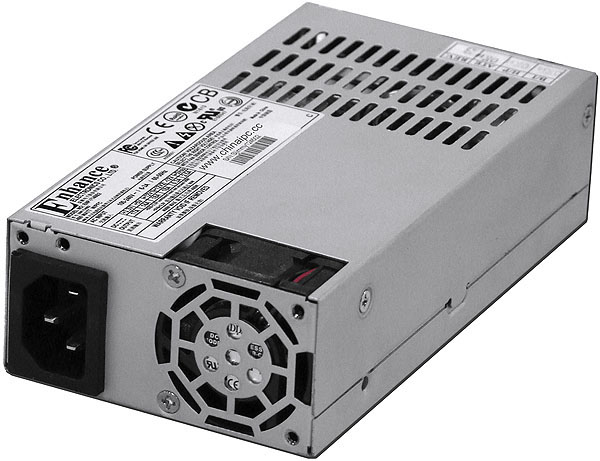

1U FlexATX 400W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option B-4

:

1U FlexATX 500W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option B-5

:

1U FlexATX 600W power supply with PFC (psu size at W.81.5 x H.40.5 x L.150/mm)

Option C

:

RW125-12G-FH

1 Full Height expansion slot space to 1x2.5" HotSwap Cage SATA/SAS 12G

Option D-1

:

RW225-M2

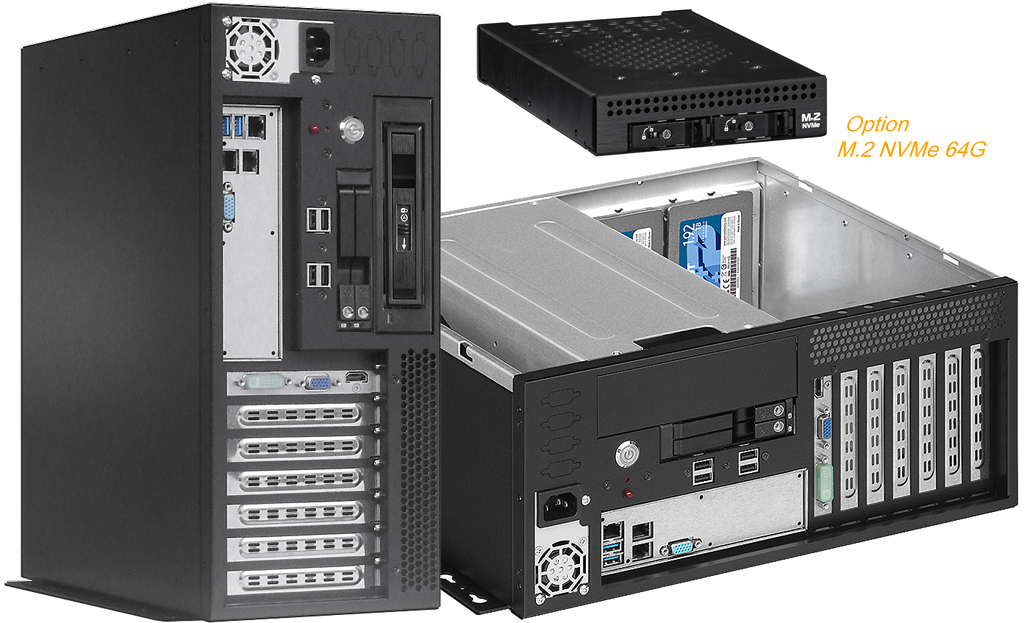

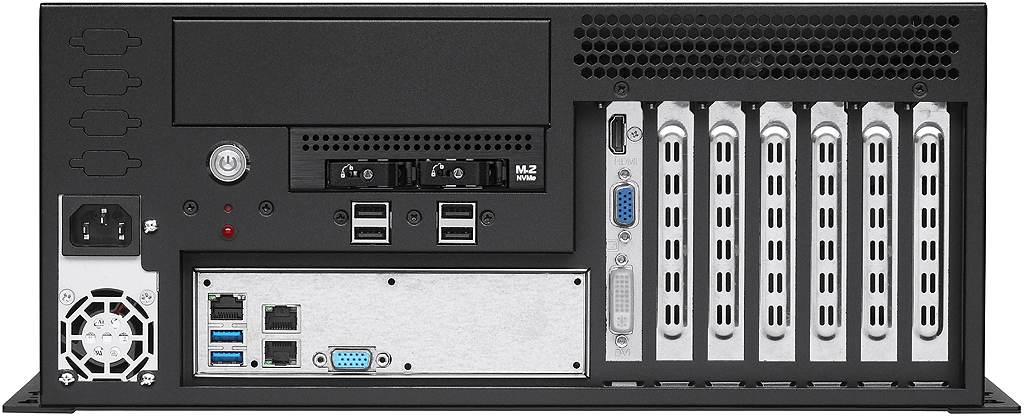

1x3.5" FDD to 2 x M.2 SSD Removable Cage M.2 NVMe 64G

Option D-2

:

RW125-NVMe

1x3.5" FDD to 1x2.5" SSD Removable Cage U.2 NVMe 32G

Option D-3

:

RW125-12G

1x3.5" FDD to 1x2.5" HotSwap Cage SATA/SAS 12G

Option D-4

:

TL125-12G

1x3.5" FDD to 1x2.5" TrayLess HotSwap Cage SATA/SAS 12G

Option D-5

:

TL225

1x3.5" FDD to 2x2.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-1

:

RW135-12G

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 12G

Option E-2

:

TL135-12G

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-3

:

RW225-NVMe-U

1x5.25" to 2xUSB3 2x2.5" SSD Removable Cage U.2 NVMe 32G

Option E-4

:

RW225-NVMe

1x5.25" to 2x2.5" SSD Removable Cage U.2 NVMe 32G

Option E-5

:

RW225-12G

1x5.25" to 2x2.5" HotSwap Cage SATA/SAS 12G

Option E-6

:

RW625-12G

1x5.25" to 6x2.5" HotSwap Cage SATA/SAS 12G

Option E-7

:

RW825-1525

1x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option E-8

:

RW425-NVMe

1x5.25" to 4x2.5" SSD Removable Cage U.2 NVMe 32G

Option E-9

:

RW425-12G-MS

1x5.25" to 4x2.5" HotSwap Cage SFF-8643 12G

Option E-10

:

RW425-12G

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 12G

Option E-11

:

RW425

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 6G

Option F-1

:

1MSAS-4SATA-500MM

SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option F-2

:

SFF-8643-500MM

SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option F-3

:

4SATA-SFF-8643-500MM

Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option F-4

:

SFF-8643-4SATA-500MM

SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable

Option G-1

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (2U 3U 4U chassis compatible)

Option G-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option G-3

:

2U115XA

2U Intel LGA115x Xeon 1230 active CPU cooler (2U 3U 4U chassis compatible)

Option G-4

:

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3 (2U 3U 4U chassis compatible)

Option G-5

:

2U1331A-AM4

2U AMD LGA1331 active CPU cooler AM4 (2U 3U 4U chassis compatible)

Option G-6

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (2U 3U 4U chassis compatible)

Option G-7

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option G-8

:

2U4189A-M82

2U Intel LGA4189 active CPU cooler (2U 3U 4U chassis compatible)

Option G-9

:

2U1700A-V15

2U Intel LGA1700 active CPU cooler (2U 3U 4U chassis compatible)

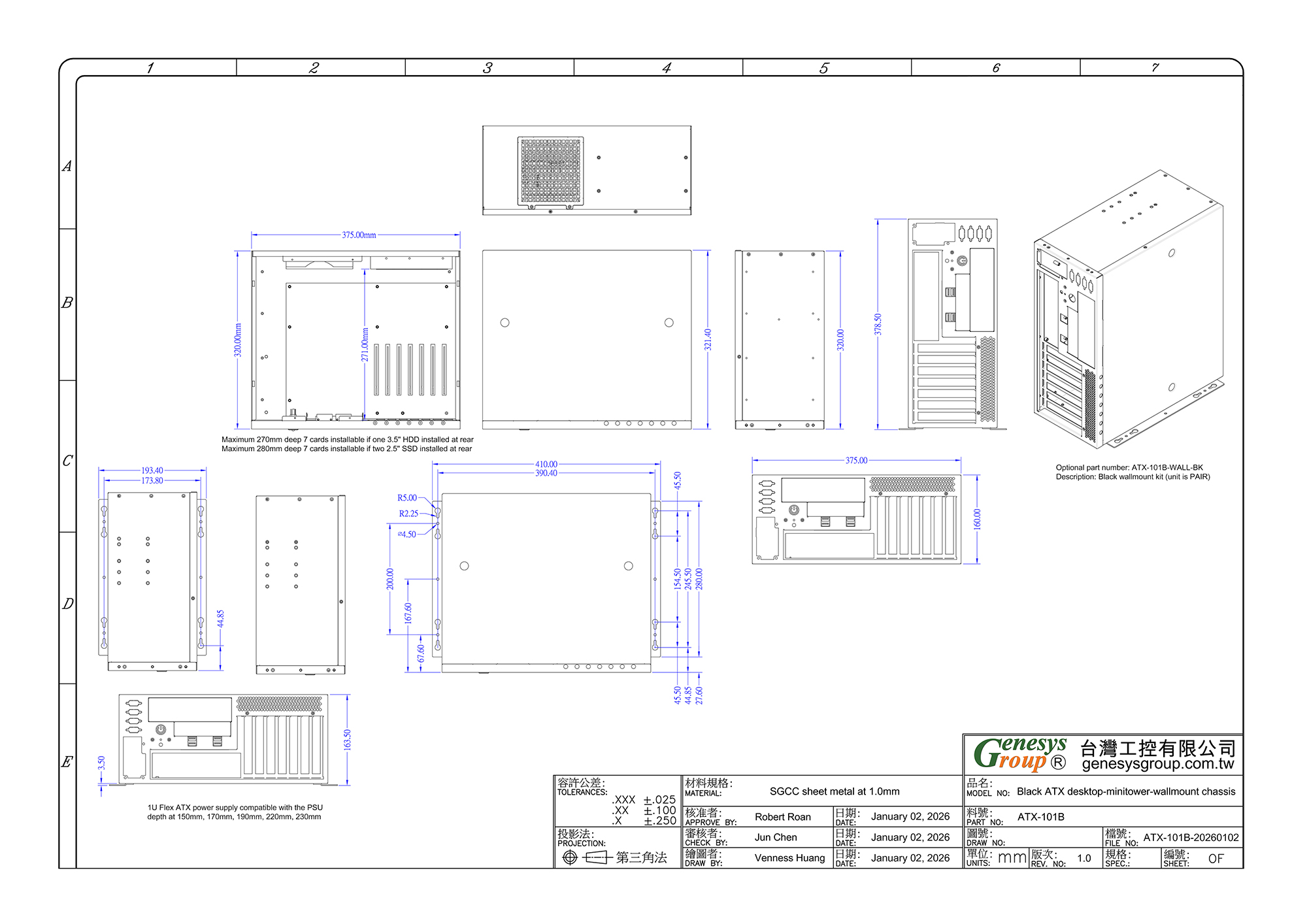

Catalogue          Dimension Drawing
