1U I/O SHIELD

..........................................................................................................................................................................................................................................................................................

台灣工控標準規格1U I/O擋板(選配)
* 如果您需要1U I/O擋板以符合您欲安裝的主機板，請按這裡以尋找您所需要的1U I/O擋板型號
* 正式出貨時1U I/O擋板型號後面若標示-B時則代表此為黑色烤漆之擋板，例: 1UIOD945GCLF2-B
* 如果您還是未找到符合您需求的1U I/O擋板，請告知您的主機板型號，由我司馬上特別為您製作並生產之

1U 2U 3U 4U SLIDE RAIL或者1U 2U 3U 4U REAR MOUNTING KIT

..........................................................................................................................................................................................................................................................................................

NJ-600

600mm 2-layer 3-travel universal slide rail * 獨特萬用設計，可相容於機箱寬度422mm~430mm，以及機箱高度1234U，以及機箱深度300mm~700mm * 機箱兩側滑軌孔位不同者亦相容，採3節3段式設計，未伸展前之長度約為600mm，全展後之長度為1100mm * 採用超耐重雙層滑軌設計(65公斤)，如需安裝說明請參考此文件 * 包裝明細: 1雙/盒，NW.2.9KG, GW.3.1KG, 0.12 CUFT (60cm x 5.5cm x 10cm single box packed) * 5盒/箱, NW.15.5KG, GW.16.5KG, 0.75 CUFT (60.5cm x 28cm x 12.5cm single carton packed) * 每單位零件包: 4個2U/4U相容墊片‧16顆固定機殼用平頭M4螺絲‧8顆備用M4螺帽‧8顆固定機櫃用圓頭M5螺絲‧    8顆固定機櫃用平頭M6螺絲‧8顆固定機櫃用圓頭M6螺絲‧8片固定機櫃用M6墊圈

..........................................................................................................................................................................................................................................................................................

1234U-RMK	1234U rear mounting kit * 獨特設計，可相容於機箱寬度428mm~430mm，以及相容於機箱高度1234U * 機箱兩側滑軌孔位不同者亦相容，支架深度300mm * 每套單位為雙(2隻支架‧2個墊片‧零件包) * 每單位零件包: 2個墊片‧4顆固定機殼用平頭M4螺絲‧4顆平頭M5螺絲 x 12mm‧2顆平頭M6螺絲 x 12mm * 包裝明細: 1雙/盒，NW.0.40KG, GW.0.44KG, 0.02 CUFT (35.3cm x 5.1xcm x 3.0cm single box packed)

1U RISER CARD PCI 32bit, 64bit之5V或3.3V區分

..........................................................................................................................................................................................................................................................................................

1U1PCIE1XL	1U 1PCI-Express 1X left angle riser card * 金手指直接插入主機板第6根PCI-Express 1X slot位置 * 12V或3.3V皆相容
..........................................................................................................................................................................................................................................................................................

1U1PCIE4XL	1U 1PCI-Express 4X left angle riser card * 金手指直接插入主機板第6根PCI-Express 4X slot位置 * 12V或3.3V皆相容
..........................................................................................................................................................................................................................................................................................
1U1PCIE8XL	1U 1PCI-Express 8X left angle riser card * 金手指直接插入主機板第6根PCI-Express 8X slot位置 * 12V或3.3V皆相容
..........................................................................................................................................................................................................................................................................................
1U1PCIE16XL 尺寸說明	1U 1PCI-Express 16X left angle riser card * 金手指直接插入主機板第6根PCI-Express 16X slot位置 * 12V或3.3V皆相容
..........................................................................................................................................................................................................................................................................................
1U1PCIE16XL-EXT	1U 1PCI-Express 16X left angle riser card extender * 可延伸至主機板第5根位置之12V或3.3V PCI-Express 16X slot * 注意需配合1U1PCIE16XL使用 (放大顯示)
..........................................................................................................................................................................................................................................................................................
1U1PCIE1XLC	1U 1PCI-Express 1X left angle riser card * 位於主機板第6根slot位置 * 可延伸至主機板第1~7根PCI-Express 1X slot位置 (cable線長105mm) * 12V或3.3V皆相容
..........................................................................................................................................................................................................................................................................................
1U1PCIE4XLC	1U 1PCI-Express 4X left angle riser card * 位於主機板第6根slot位置 * 可延伸至主機板第2~7根PCI-Express 4X slot位置 (cable線長90mm) * 12V或3.3V皆相容
..........................................................................................................................................................................................................................................................................................
1U1PCIE8XLC	1U 1PCI-Express 8X left angle riser card * 位於主機板第6根slot位置 * 可延伸至主機板第2~7根PCI-Express 8X slot位置 (cable線長85mm) * 12V或3.3V皆相容
..........................................................................................................................................................................................................................................................................................
1U1PCIE16XLC	1U 1PCI-Express 16X left angle riser card * 位於主機板第6根slot位置 * 可延伸至主機板第4~7根PCI-Express 16X slot位置 (cable線長60mm) * 12V或3.3V皆相容
..........................................................................................................................................................................................................................................................................................
1U1PCI32L 尺寸說明	1U 1PCI 32bit left angle riser card * 金手指直接插入主機板第6根32bit PCI 5V slot位置
..........................................................................................................................................................................................................................................................................................
1U1PCI32R 尺寸說明	1U 1PCI 32bit right angle riser card * 金手指直接插入主機板第1根32bit PCI 5V slot位置 * 需搭配使用特殊訂製1U右插式後窗之1U伺服器例如E100B
..........................................................................................................................................................................................................................................................................................

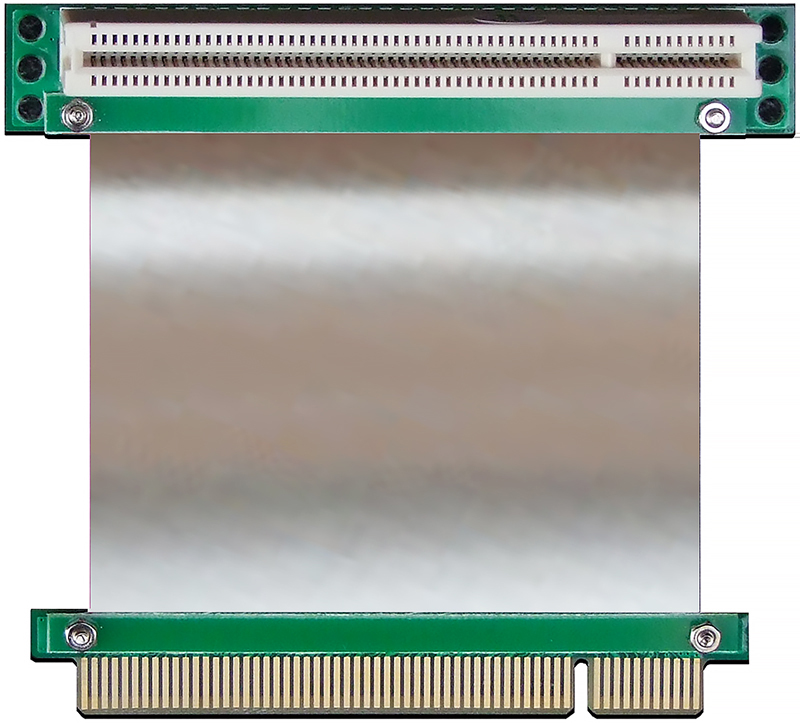

1U1PCI32LC	1U 1PCI 32bit left angle riser card * 位於主機板第6根slot位置 * 可延伸至主機板第4~7根32bit PCI 5V slot位置 (cable線長60mm)
..........................................................................................................................................................................................................................................................................................
1U1PCI64L	1U 1PCI 64bit left angle riser card * 金手指直接插入主機板第6根64bit PCI 3.3V slot位置
..........................................................................................................................................................................................................................................................................................
1U1PCI64LC	1U 1PCI 64bit left angle riser card * 位於主機板第6根slot位置 * 可延伸至主機板第3根64bit PCI 3.3V slot位置 (cable線長85mm)
..........................................................................................................................................................................................................................................................................................
1U1PCI64R	1U 1PCI 64bit right angle riser card * 金手指直接插入主機板第1根64bit PCI 3.3V slot位置 * 需搭配使用特殊訂製1U右插式後窗
..........................................................................................................................................................................................................................................................................................
1U1PCI32L-EXT 尺寸說明	1U 1PCI 32bit riser card extender * 可延伸至主機板第5根位置之33 MHz PCI 32bit 5V slot * 注意需配合1U1PCI32L使用 (放大顯示)
1U SLIM ACTIVE CPU COOLER AND PASSIVE HEATSINK 由於主機板上之電容會干涉到散熱片之可能性，訂購前請告知主機板型號以便事先查詢相容性或修改散熱片
.......................................................................................................................................................................................................................................................................................... JA01C 1U AMD AM3/AM2 active CPU cooler * 散熱片含鼓風機尺寸: 114Lx74Wx27H (mm) * 鼓風機尺寸: 75L x 75W x 15H(mm), blower specification: 5500rpm / 10.48 CFM * 散熱片材質: Copper C1000系列 * 重量: 490g * 固定扣具: 螺絲+彈簧+CPU散熱片扣具底座 .......................................................................................................................................................................................................................................................................................... JB18C 1U Intel LGA1155 LGA1156 passive heatsink * 散熱片尺寸: 88Lx88Wx24H(mm) * 散熱片材質: Copper C1000系列 * 重量: 457g * 固定扣具: 螺絲+彈簧+CPU散熱片扣具底座 .......................................................................................................................................................................................................................................................................................... JB18A 1U Intel LGA1155 LGA1156 active CPU cooler * 散熱片含鼓風機尺寸: 83Lx84.6x28H(mm) * 鼓風機尺寸: 75L x 75W x 15H(mm)、 鼓風機規格: 5000rpm / 10.75 CFM * 散熱片材質: Copper C1000系列 * 重量: 405g * 固定扣具: 螺絲+彈簧+CPU散熱片扣具底座 .......................................................................................................................................................................................................................................................................................... JB04C 1U Intel LGA1366 LGA2011 passive heatsink * 散熱片尺寸: 88Lx88Wx24H(mm) * 散熱片材質: Copper C1000系列 * 重量: 485g * 固定扣具: 螺絲+彈簧+CPU散熱片扣具底座 .......................................................................................................................................................................................................................................................................................... JB15C 1U Intel LGA1366 LGA2011 active CPU cooler * 散熱片含鼓風機尺寸: 88Lx89.6Wx28H(mm) * 鼓風機尺寸: 75Lx75Wx15H(mm)、 鼓風機規格: 5500rpm / 10.48 CFM * 散熱片材質: Copper C1000系列 * 重量: 455g * 固定扣具: 螺絲+彈簧+CPU散熱片扣具底座 .......................................................................................................................................................................................................................................................................................... J04DC 1U Intel LGA775 passive heatsink * 散熱片尺寸: 87Lx83Wx26.5H(mm) * 散熱片材質: Copper C1000系列 * 重量: 595g * 固定扣具: 螺絲+彈簧+CPU散熱片扣具底座 * 適合1U機箱: 例如C136B, C155LB, E100B, S104LB .......................................................................................................................................................................................................................................................................................... J72LC 1U Intel LGA775 active CPU cooler * 散熱片含鼓風機尺寸: 80.5Lx83Wx29H(mm) * 鼓風機尺寸: 75L x 75W x 15H(mm)、 鼓風機規格: 5000rpm / 10.75 CFM * 散熱片材質: Copper C1000系列 * 重量: 386g * 固定扣具: 螺絲+彈簧+CPU散熱片扣具底座 * 適合1U機箱: 例如C125B, E125B, C136B, C155B, C155LB, E100B, S104LB     1U POWER SUPPLY .......................................................................................................................................................................................................................................................................................... ENP-7025B 1U Flex ATX 250W power supply with PFC * AC input: full range 100V~240V * one 4cm ball bearing fan * 80Plus銅牌(高效率82%) * dimensions: D.150 x W.81 x H.40 /mm * 備註: 推薦適用於1U C125B與E125B chassis * 出線定義圖 * 標準配備power supply固定支架 (支架料號360220037-00) .......................................................................................................................................................................................................................................................................................... FLEX0130B 1U Flex ATX 300W power supply with PFC * AC input: full range 100V~240V * one 4cm ball bearing fan * 80Plus白牌(高效率80%) * dimensions: D.150 x W.81 x H.40 /mm * 備註: 推薦適用於1U C136B chassis * 出線定義圖 * 標準配備power supply固定支架 (支架料號360220037-00) .......................................................................................................................................................................................................................................................................................... ENP-7025D 1U 250W power supply with PFC * AC input: full range 100V~240V * one 4cm ball bearing fan * dimensions: D.180 x W.100 x H.40.5 /mm * 備註: 推薦適用於1U C155B，E100B chassis * 出線定義圖 * 標準配備power supply固定支架 (支架料號360220032-02) .......................................................................................................................................................................................................................................................................................... ENH-1930 1U 300W power supply with PFC * AC input: full range 100V~240V * one 4cm ball bearing fan * dimensions: D.180 x W.100 x H.40.5 /mm * 備註: 推薦適用於1U C155B，E100B chassis * 出線定義圖 * 標準配備power supply固定支架 (支架料號360220032-02) .......................................................................................................................................................................................................................................................................................... P1G-6300P 1U 300W power supply with PFC * AC input: full range 90V~264V * two 4cm ball bearing fans * dimensions: D.205 x W.100 x H.40.5 /mm * 備註: 推薦適用於1U C155B，E100B chassis * 出線定義圖 .......................................................................................................................................................................................................................................................................................... P1M-6350P P1M-6400P 1U 350W/400W power supply with PFC * AC input: full range 90V~264V * two 4cm ball bearing fans * dimensions: D.250 x W.100 x H.40.5 /mm * 備註: 推薦適用於1U C155LB，S104LB chassis * 350W出線定義圖    400W出線定義圖 .......................................................................................................................................................................................................................................................................................... H1H-6507P 1U 500W power supply with PFC * AC input: full range 90V~264V * two 4cm ball bearing fans * dimensions: D.250 x W.100 x H.40.5 /mm * 備註: 推薦適用於1U C155LB，S104LB chassis * 出線定義圖 .......................................................................................................................................................................................................................................................................................... ENH-1655 1U 550W power supply with PFC * AC input: full range 100V~240V, 8-4A, 60-50Hz * two 40mm x 28mm ball bearing fans * 80Plus金牌(高效率88%)以及標準內建溫控裝置 * dimensions: D.245 x W.100 x H.40.5 /mm * 備註: 推薦適用於1U C155LB，S104LB chassis (標準配備固定支架，亦可相容於250mm深度的電源供應器) * 出線定義圖
