C136B 1U BLACK MICROATX SERVER CHASSIS
Product announcement & 1st production dated on October 09, 2009, webpage updated on June 27, 2022

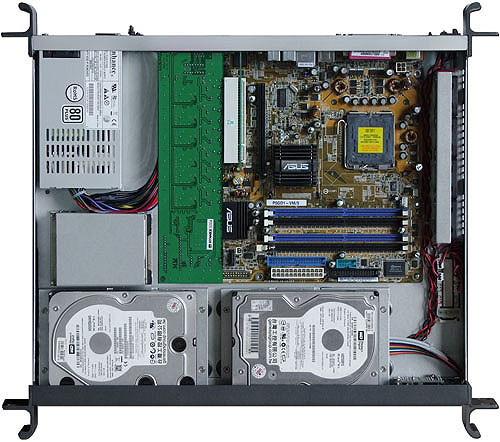

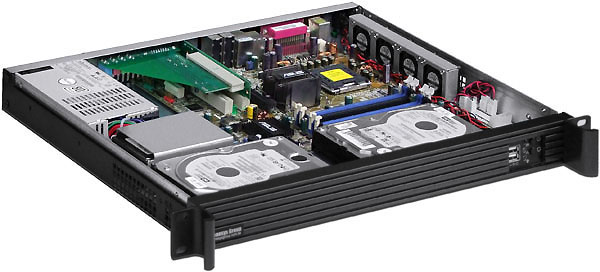

Compatible with 9.6"x9.6" MicroATX MB structure, and meet the newest LGA115x and LGA1700 multi-core processor platform, the 1U C136 chassis designed by aluminum extrusion front bezel with invisible intake air vent holes, that can keep away overheating from this 1U server platform. It supports two 3.5" and two 2.5" HDD capacity as well as two USB 2.0 ports at the front side which can make your storage and master or slave OS system to be the best system construction. As regards to the power supply assembly, it supports standard 1U FlexATX 300W power supply installation (option) that saves much cost for your system integration. Also it provides I/O front access or traditional I/O rear access solution which is without extra mounting bracket needed, welcome world wide distribution.

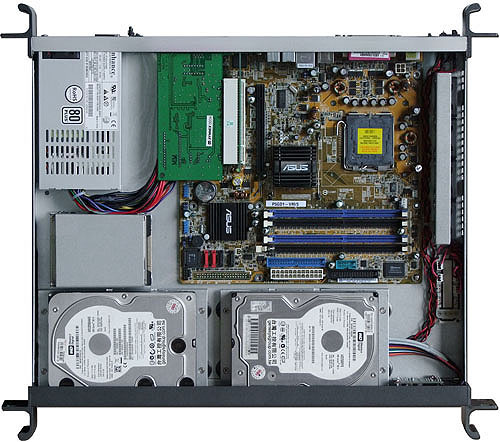

* Totally 4 drive bay: 2 x 3.5" HDD bay and 2 x 2.5" SSD bay
* Drive bay equipped with anti-vibration function

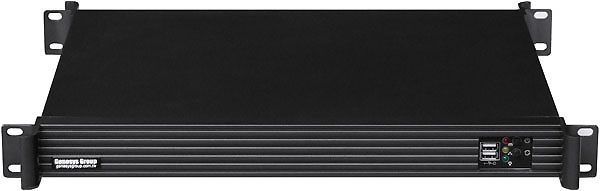

* Two USB 2.0 ports at front bezel

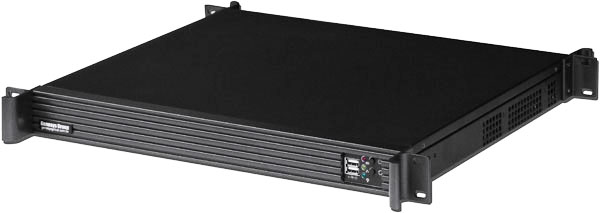

* Aluminum extrusion front bezel with invisible intake air vent holes

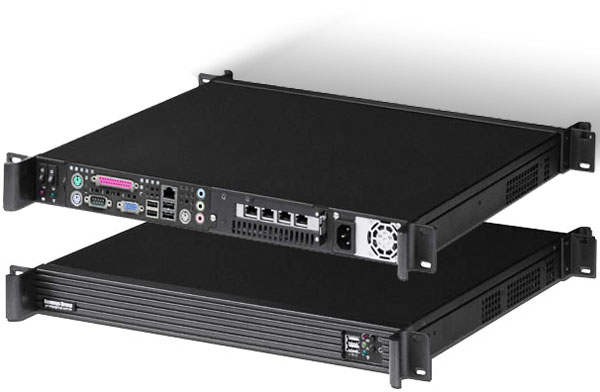

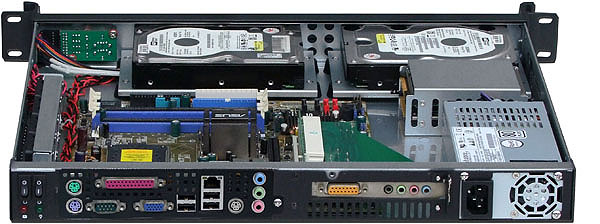

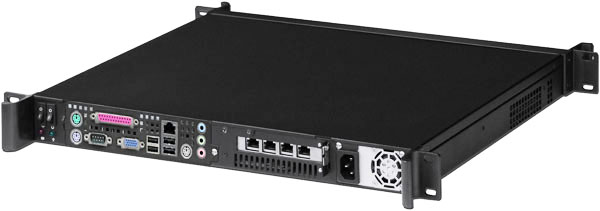

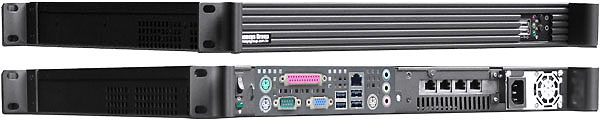

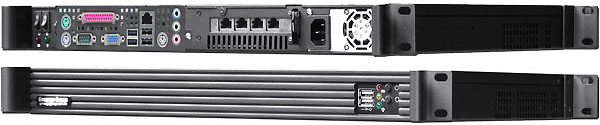

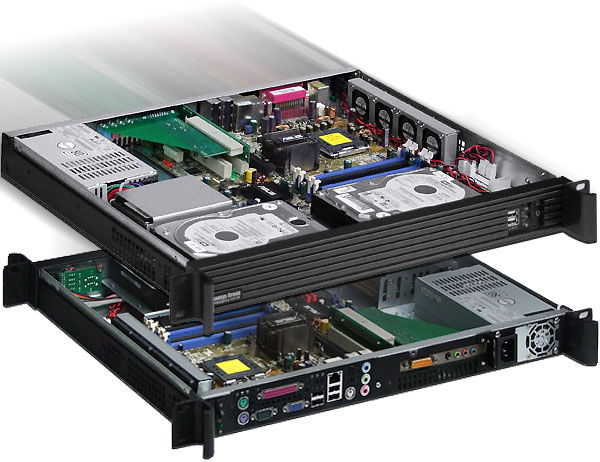

* Both I/O front-access or I/O rear-access compatible

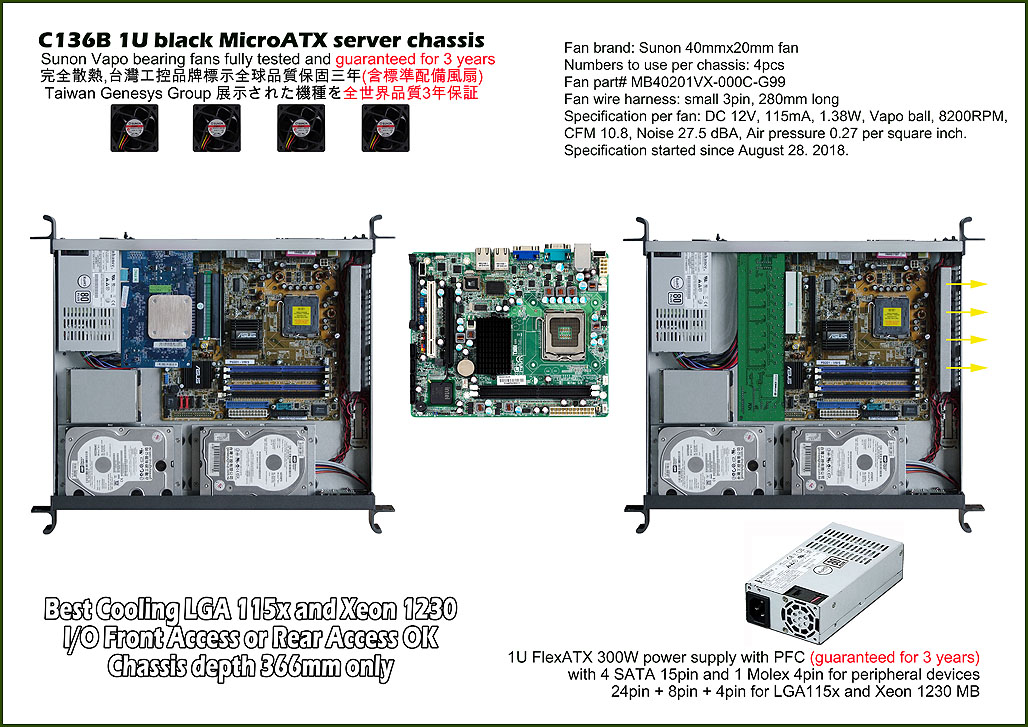

* Four brand new SUNTAi 40mm x 20mm exhaust 2-ball bearing fans at side bezel
* All in one fan wire PCB to keep fast system maintenance
* Compatible motherboard: MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")
* Support standard 1U FlexATX 300W psu (max. psu depth: 150mm)

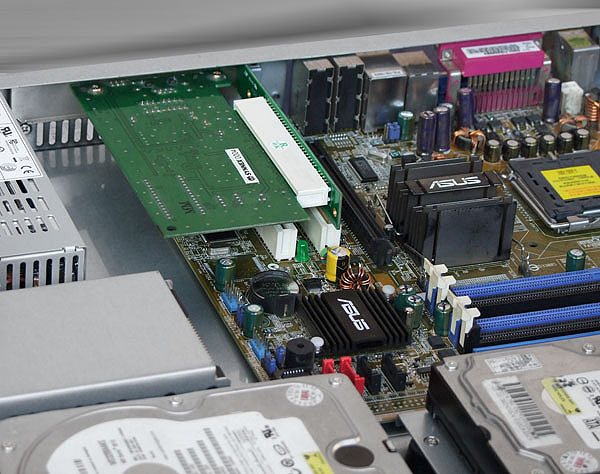

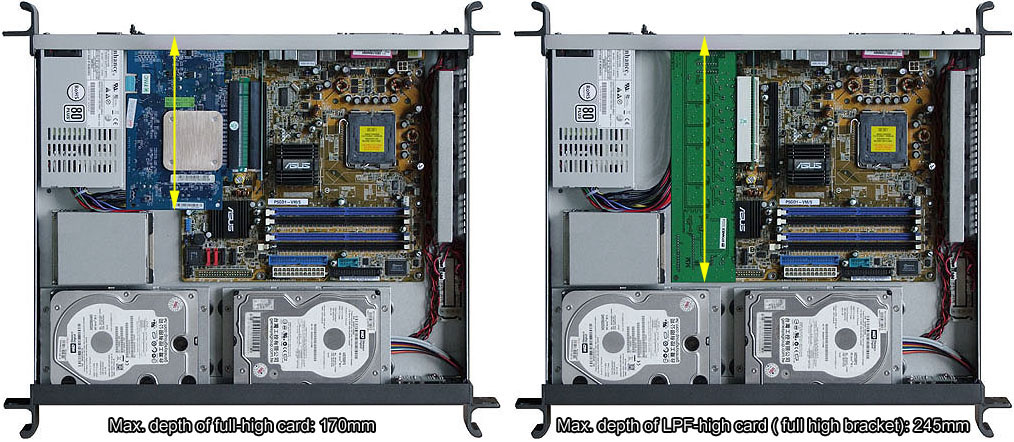

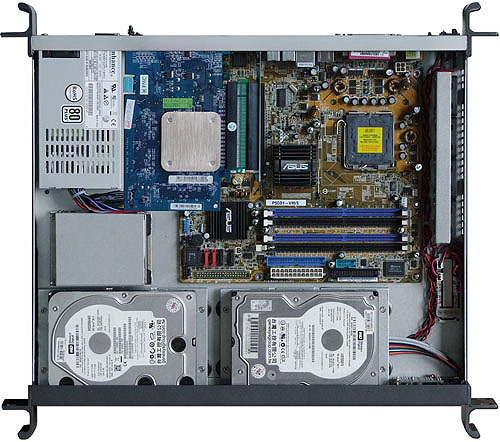

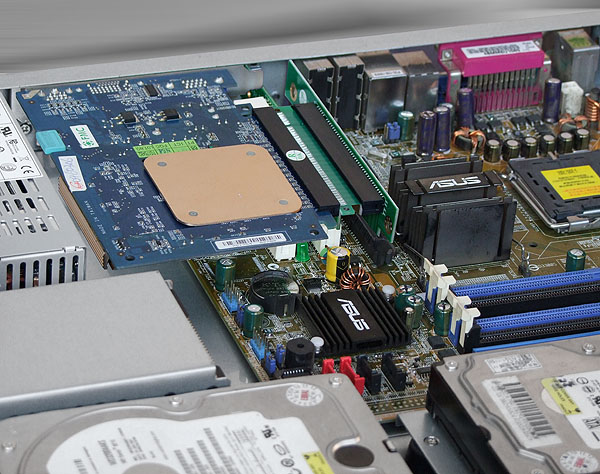

* Support 1 slot full high expansion card (max. 170mm~245mm long)
* Standard paint: scratch-resistant Black textured
* Genesys Group chassis with build-in electronics in global 3 years warranty
* Chassis dimension: 19" x 1U x 366mm (14.4" deep)
* Package: NW 4.1 KG, GW 5.5 KG, 1.51 CUFT (carton size at 49.5x56.5x14.5cm)

Model#

:

C136B

1U black MicroATX server chassis

Option A

:

ENP-7130B

1U FlexATX 300W power supply with PFC (psu size 81.5 x 40.5 x 150/mm)

Option B-1

:

NJ-600

600mm 2-layer 3-travel universal rail (cabinet internal depth 600~1200mm compliant)

Option B-2

:

1234U-RMK

1234U rear mounting kit (part# is 1 pair)

Option C

:

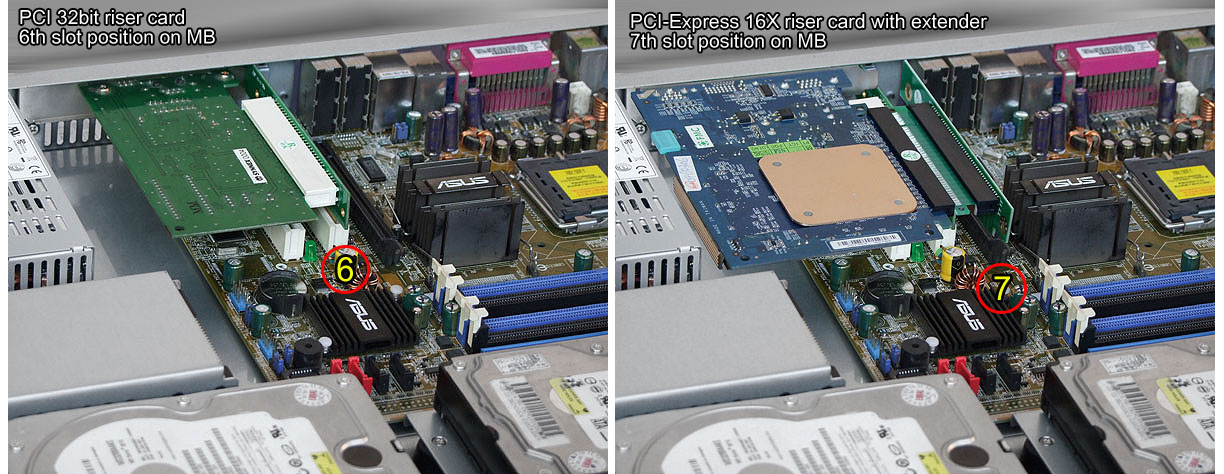

1U1PCIE16XL

1U1PCIE16XL+1U1PCIE16XL-EXT (or the other riser card)

Option D

:

1UIO******* -B

1U black I/O shield

Option E

:

25-35-BK

1x5.25" to 1x3.5" HDD or 1x3.5" to two 2.5" SSD bracket

Option F-1

:

1MSAS-4SATA-500MM

SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option F-2

:

SFF-8643-4SATA-500MM

SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable

Option G-1

:

JB18A

1U Intel LGA115x Xeon 1230 active CPU cooler

Option G-2

:

JB15C-8080

1U Intel LGA2011 LGA2066 active CPU cooler

Option G-3

:

1U3647A-R73

1U Intel LGA3647 active CPU cooler Narrow

Option G-4

:

1U1700A-V12

1U Intel LGA1700 active CPU cooler
