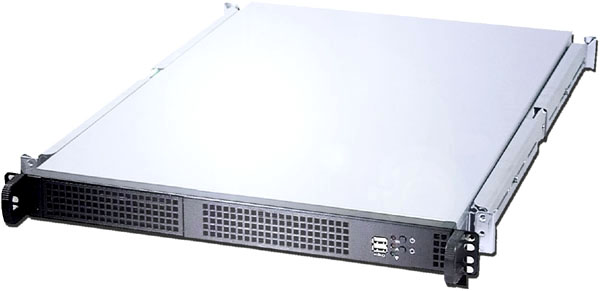

C155L 1U eATX ULTRA COOL SERVER
CHASSIS
webpage updated on August 19, 2011
Combined the strongest mechanism design and the friendly installation feature,
it meets the entry level of server system environment which is the most competitive and
quality certified 1U rackmount server platform in the market, the chassis depth
has only 660mm short that can also support maximum 12"x13" Intel
EEB 3.61 eATX
MB very well, standard equipped with four high speed 40mm x 28mm fans in the fan wall of
middle of chassis.
|
 |
* Totally

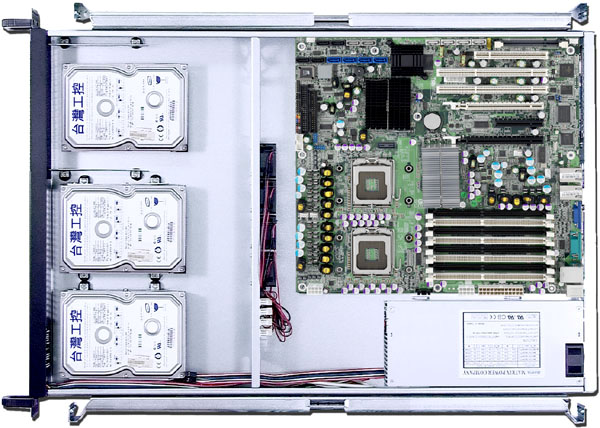

3 drive bay:
1 x 5.25" CD and 2 x 3.5" HDD bay (or 0 x 5.25" but 3 x
3.5" HDD)
* drive bay equipped with anti-vibration function
* two USB 2.0 ports at front bezel

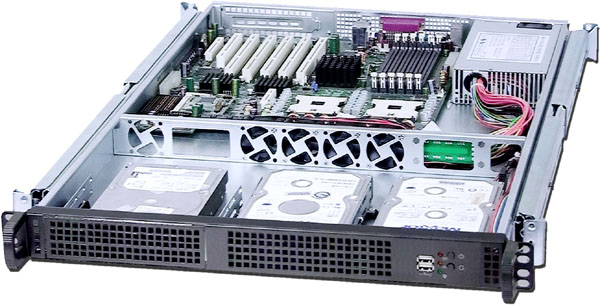

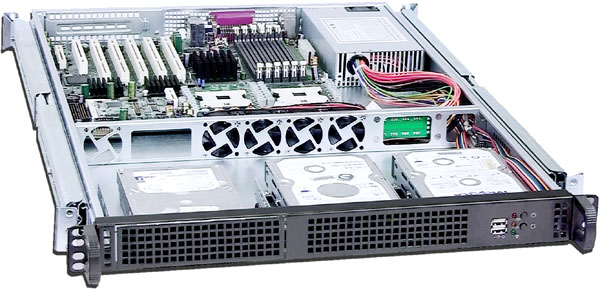

* four 40mm x 28mm high speed intake fans in middle of chassis
* all in one fan wire PCB to keep fast system maintenance
* MB:
eATX EEB3.61(12"×13")‧ATX(12"x9.6")‧MicroATX(9.6"x9.6")‧Mini-ITX(6.7"x6.7")
* support standard 1U 300W~500W
power supply (max. psu depth: 250mm)
* support 1 slot full high expansion card (max. 342mm long)
* standard paint: black or beige
* chassis dimension: 19" x 1U x 660mm (25.98" deep)
* package: NW 7 KG, GW 9 KG, 2.54 CUFT (79x57x16cm, single box packed) |
|
Model# |
: |
C155LB |
1U black eATX ultra cool server
chassis |
|
Option 1 |
: |
PSU |
1U 300W~500W single power supply
with PFC (max. psu
depth 250mm) |
|
Option 2 |
: |
NJ-600 |
600mm 2-layer
3-travel universal slide rail , full travel extension up to 1100mm
deep (part# is 1 pair) |
|
Option 2-1 |
: |
1234U-RMK |
1234U rear mounting kit
(part# is 1 pair) |
|
Option 3 |
: |
1U riser card |
Various 1U riser card |
|
Option 4 |
: |
1U CPU cooler |
Various 1U CPU cooler |
|
Option 5 |
: |
1UIO-******* |
1U I/O shield |
|
Option 6 |
: |
PMD1204PQB1-A |
Additional two Sunon 40mm x 28mm fans (original four 40mm x 28mm fans
installed,
part# is 1 pcs) |
| |
|
|
|
| |
|
|
Dimension
Drawing (new version since July, 2011)
1U
accessory |
|
