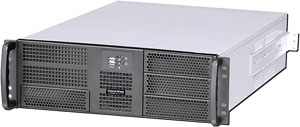

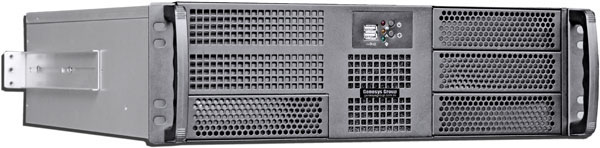

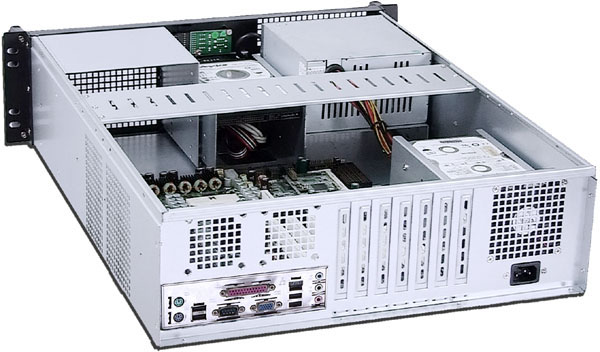

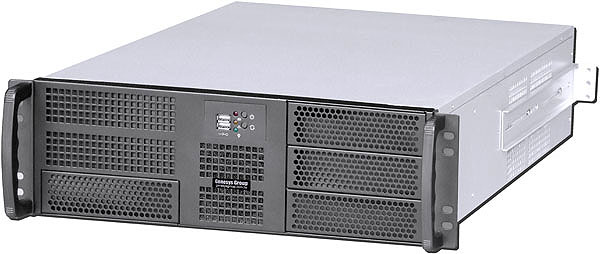

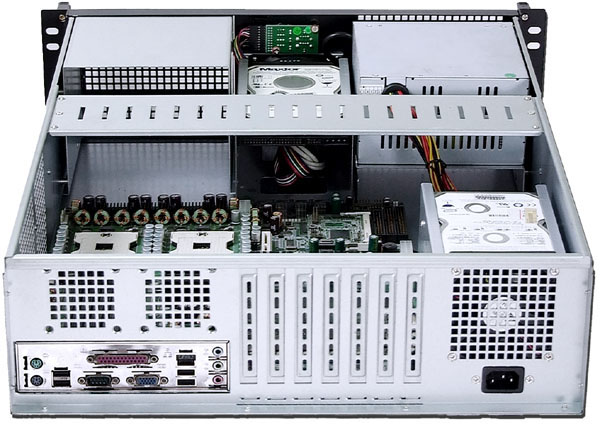

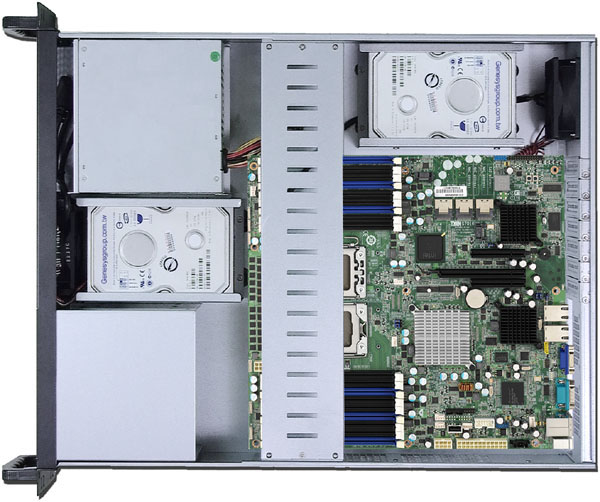

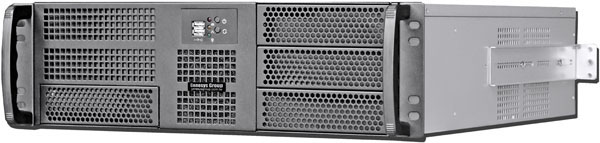

C355F 3U eATX ULTRA COOL CHASSIS
webpage updated on July 24, 2012
The major feature of this new design is the chassis depth has 550mm only but can be also supported with standard EEB 3.61 12”x13” dual processors serverboard as well, additionally, it is also compatible with standard PS2 power supply and four 5.25” CD bay and six 3.5” HDD bay, which is the most competitive server system that can save the construction cost of your server system in enterprises, welcome worldwide distribution.

* Totally 10 drive bay: 4 x 5.25" CD and 6 x 3.5" HDD bay
* HDD bay with anti-vibration function supported

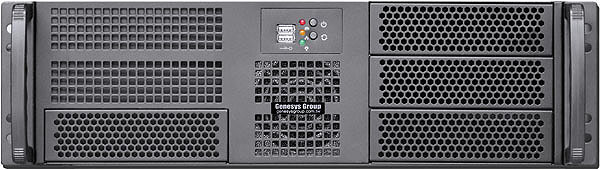

* two USB 2.0 port at front bezel
* one Sunon EE80251B1-000C-G99 80mmx25mm intake fan with air filter at front bezel

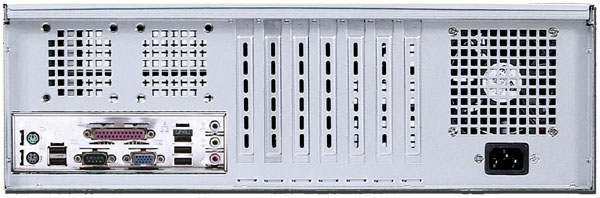

* one Sunon EE80251B1-000C-G99 80mmx25mm exhaust fan at rear panel
* MB: eATX EEB3.61(12"×13")‧ATX(12"x9.6")‧MicroATX(9.6"x9.6")‧Mini-ITX(6.7"x6.7")
* support PS2 power supply with 80mm fan version (max. psu depth: 190mm)
* support 7 slot full height expansion cards (max. 330mm long)
* standard paint: black
* Genesys Group branded server chassis model (with build-in fans) global 3 years warranty
* chassis dimension: 19" x 3U x 550mm (21.65" deep)
* package: NW 8 KGM, GW 11 KGM, 2.96 CUFT (68x56x22cm, single box packed)
Model# : C355FB 3U black eATX ultra cool chassis
Option 1 : PSU PS2 power supply with PFC and with 80mm fan version (support psu depth 190mm maximum)
Option 2 : SUNON6025 60mm x 25mm exhaust fan installed above the I/O shield of rear panel (part# is 1pcs)
Option 3 :

3U4U-MIDDLEFAN

one fan bracket with one Sunon 80mm x 25mm intake fan installed above MB (part# is 1pcs)
Option 4-0 : NJ-600 600mm 2-layer 3-travel universal slide rail , full travel extension up to 1100mm deep (part# is 1 pair)
Option 4-1 : 1234U-RMK 1234U rear mounting kit (part# is 1 pair)

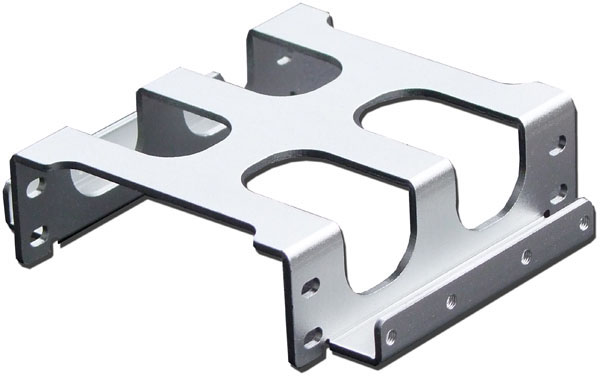

Option 5

:

135TO225BK

1x3.5" HDD space to 2x2.5" aluminum heatsink-like bracket

Option 6-0

:

2525TO3HDBK

2x5.25" ODD space to 3x3.5" bracket

Option 6-1

:

3525TO5HDBK

3x5.25" ODD space to 5x3.5" bracket

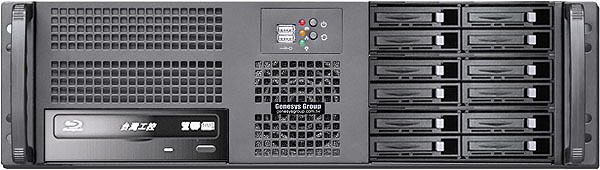

Option 6-2

:

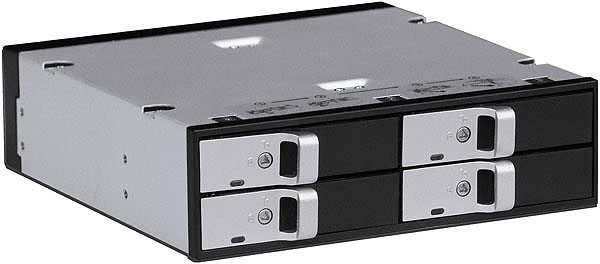

425IN525

1x5.25" ODD space to 4x2.5" hotswap mobile rack module

Option 6-3

:

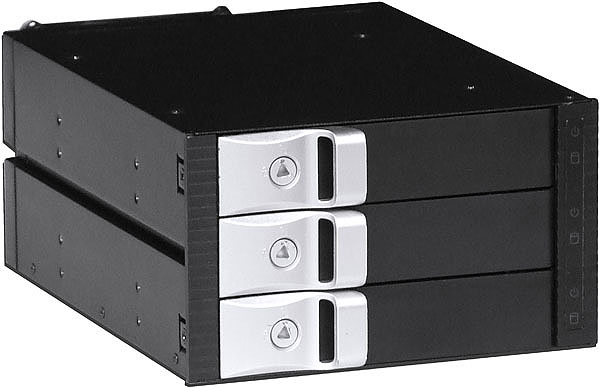

335IN2525

2x5.25" ODD space to 3x3.5" hotswap mobile rack module

Option 6-4

:

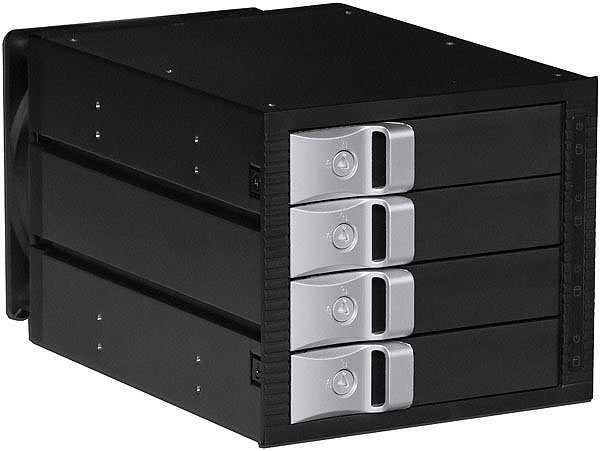

435IN3525

3x5.25" ODD space to 4x3.5" hotswap mobile rack module
