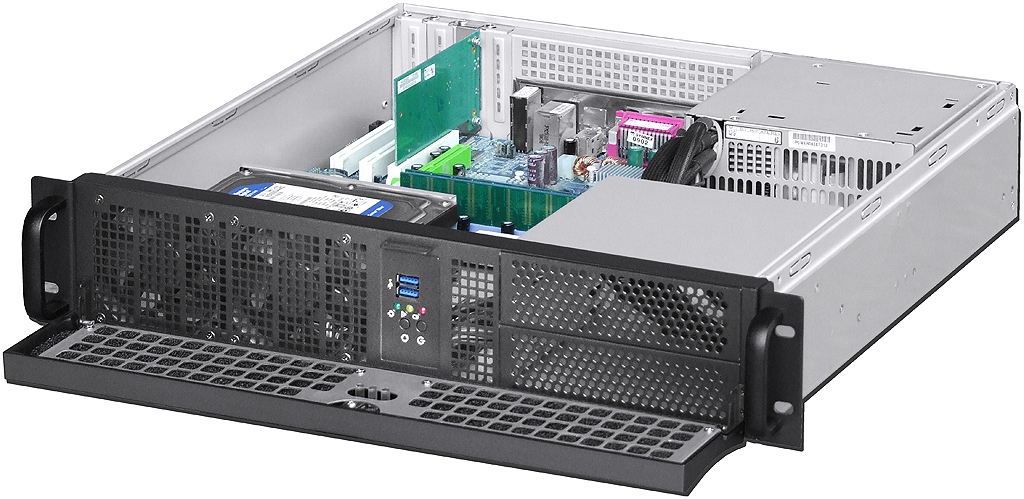

E243B-mATX 2U BLACK MICRO ATX ENTERPRISE SERVER CHASSIS
Product announcement or 1st production dated on May 05, 2020, webpage updated on June 01, 2020



In line with the installation of MicroATX motherboard, but also in line with the server and storage system or cloud requirement nowadays, the depth of this chassis is only 430mm, the robust mechanism strength, the optional hotswap HDD mobile rack can be installed at front side of chassis, and optional hotswap redundant power supply can be installed at rear side of chassis, two sides of chassis can be also installed with durable strength slide rails as option, convenient and rapid implementation of system maintenance and maintenance. This server combines the advantages of multi - functional, price also absolutely has the advantage of competition, welcome world distribution.











* Storage capacity: 2 x 5.25" ODD, 2 x 3.5" HDD

* HDD bay equipped with damping function reduces vibration & improve storage life

* Equipped with high strength aluminum die-casting handles as standard

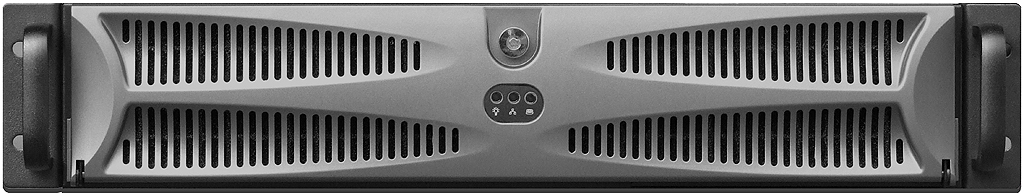

* Front bezel equipped with two USB 3.0 ports and LAN/HDD/Power LED

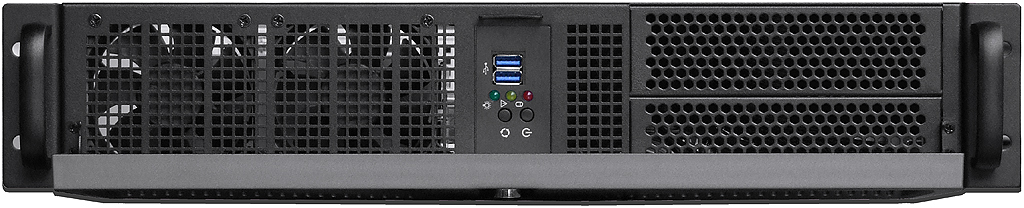

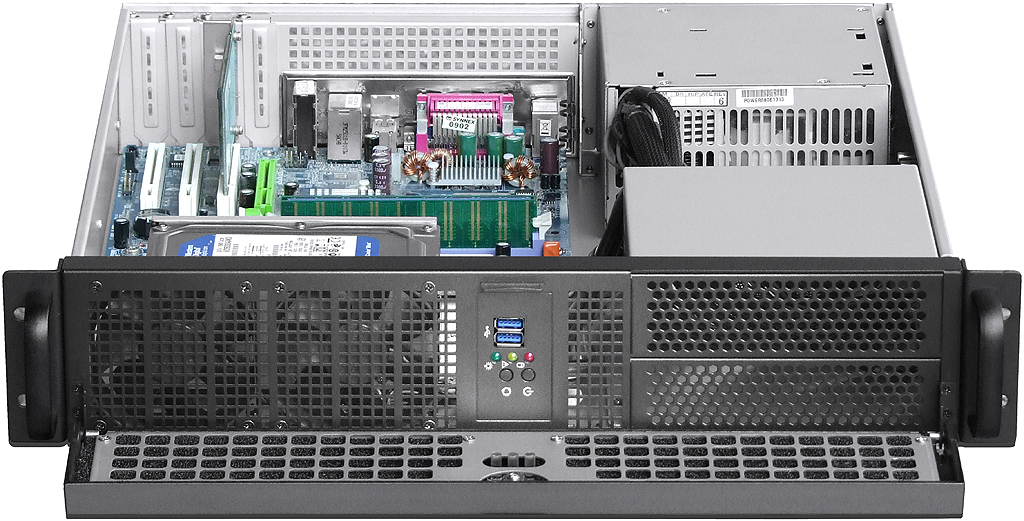

* Removable front door with security keylock and air filter function

* Two brand new low noise 80mmx25mm intake fans at front (part# D80SM-12)
* Compatible motherboard: MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")

* Support 4-slot low profile height expansion cards at maximum 255mm deep

* Front-Right without 5.25" installed, max. 250mm deep PSU supported
* Front-Right with 210mm deep 5.25" installed, max. 200mm deep PSU supported

* 8cm or 12cm~14cm fan version standard PS2 PSU compatible

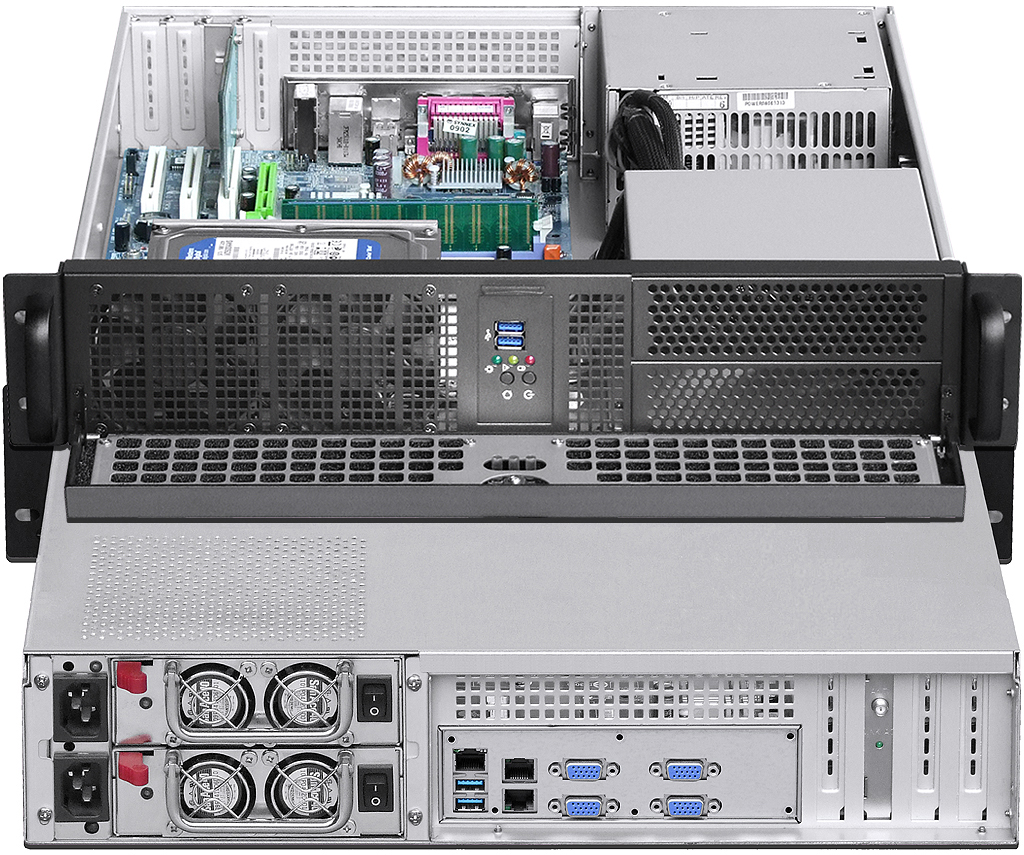

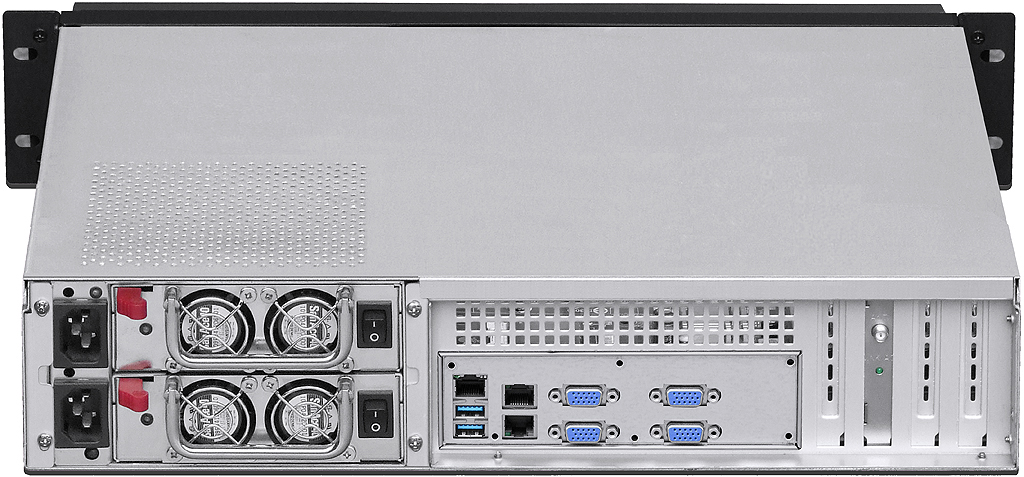

* Support SureStar R4S series 400W~500W PS2 Mini Redundant PS (depth 174mm)
* Support Zippy MRT & MRW series 300W~600W PS2 Mini Redundant PS (depth 185mm)
* Support SureStar R4B series 600W~800W PS2 Mini Redundant PS (depth 199mm)
* Support Zippy MRG series 500W~800W PS2 Mini Redundant PS (depth 200mm)

* Sheet metal by SECC 1.2mm~2.0mm thickness with no burr & sharp corner design

* Standard paint: scratch-resistant black textured at front

* Genesys Group server chassis including fan & electronics in global 3 years warranty

* Chassis dimension: 19" x 2U x 430mm (16.93" deep)

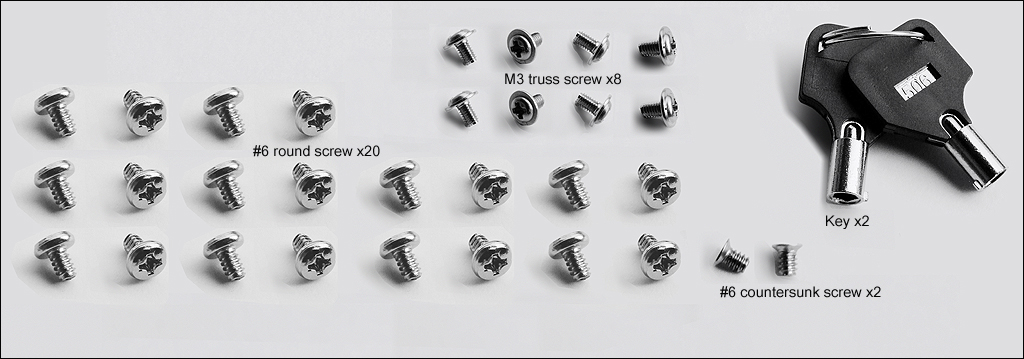

* Accessory: #6 round x20, M3 truss x8, #6 countersunk x2, key x2
* Package: NW 5.50 KGM, GW 7.20 KGM, 1.88 CUFT (carton size at 56x56x17cm)

Model#

:

E243B-mATX

2U black MicroATX enterprise server chassis

Option A-1

:

PS2 PSU

8cm & 12cm & 14cm fan version PS2 power supply

Option A-2

:

PS2 RPS

SureStar R4S series 400W/500W PS2 Mini Redundant PS (depth at 174mm)

Option A-3

:

PS2 RPS

Zippy MRT & MRW series 300W~600W PS2 Mini Redundant power supply (depth at 185mm)

Option A-4

:

PS2 RPS

SureStar R4B series 600W/700W/800W PS2 Mini Redundant PS (depth at 199mm)

Option A-5

:

PS2 RPS

Zippy MRG series 500W~800W PS2 Mini Redundant power supply (depth at 200mm)

Option B-1

:

NJ-600

600mm 2-layer 3-travel universal rail (cabinet internal depth 600mm~1200mm compliant)

Option B-2

:

NJ-2020-18

18-inch full extension slide rail (cabinet internal depth 456.7mm~810mm compliant)

Option B-3

:

1234U-RMK

1234U rear mounting kit

Option C

:

25-35-BK

5.25" 3.5" 2.5" multiple HDD bracket

Option D-1

:

2525TO3HDBK

2x5.25" to 3x3.5" bracket

Option D-2

:

RW135-12G

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 12G

Option D-3

:

RW135

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 6G

Option D-4

:

TL135-12G

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option D-5

:

TL135

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option D-6

:

RW225-12G

1x5.25" to 2x2.5" HotSwap Cage SATA/SAS 12G

Option D-7

:

RW625-12G

1x5.25" to 6x2.5" HotSwap Cage SATA/SAS 12G

Option D-8

:

RW825-1525

1x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option D-9

:

RW425-12G-MS

1x5.25" to 4x2.5" HotSwap Cage SFF-8643 12G

Option D-10

:

RW425-12G

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 12G

Option D-11

:

RW425

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 6G

Option D-12

:

RW825

2x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option D-13

:

RW335-12G

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 12G

Option D-14

:

RW335

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 6G

Option D-15

:

TL335-12G

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option D-16

:

TL335

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option E-1

:

1MSAS-4SATA-500MM

SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option E-2

:

SFF-8643-500MM

SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option E-3

:

4SATA-SFF-8643-500MM

Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option E-4

:

SFF-8643-4SATA-500MM

SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable

Option F-1

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (2U 3U 4U chassis compatible)

Option F-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option F-3

:

2U1150A

2U Intel LGA115x Xeon 1230 active CPU cooler (2U 3U 4U chassis compatible)

Option F-4

:

2U4094A

2U AMD EPYC SP3 LGA4094 active CPU cooler (2U 3U 4U chassis compatible)

Option F-5

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (2U 3U 4U chassis compatible)

Option F-6

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (2U 3U 4U chassis compatible)
