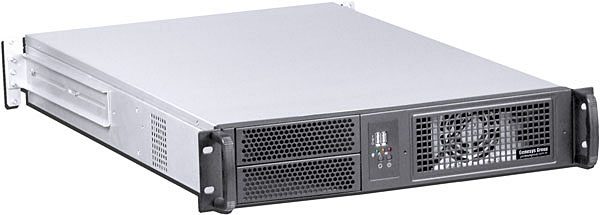

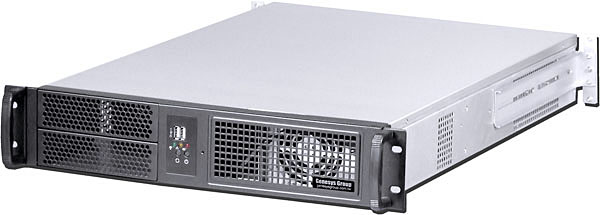

E266LB 2U BLACK eATX ULTRA COOL SERVER CHASSIS
2U universal rear panel patent & copyright officially announced in Taiwan, China, Thailand, Korea, Japan, USA,

England, EU, Russia, India. Official Taiwan patent number M366272

Product announcement & 1st production dated on January 06, 2009, webpage updated on June 16, 2022

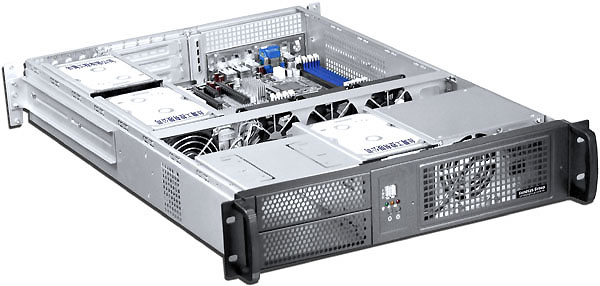

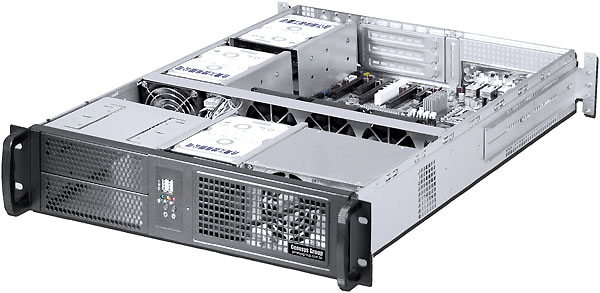

The brand new 2U multifunctional server chassis has been officially launched today, its rear panel can be compatible to 3 slot riser card or 7 slot low profile card (patented) at the same time, user can select which version to use without changing rear panel at all, the chassis depth has 660mm only but also supports maximum 12"x13" eATX serverboard very well, standard equipped with four high qualified and stable 2ball bearing 80mm x 25mm fans in the middle fan wall of chassis, the quality perfect and cost effective brand new model, welcome worldwide distribution.





* Totally 11 drive bay: 2 x 5.25" ODD and 9 x 3.5" HDD bay

* The main sheet metal constructed by 1.2mm~2.0mm SGCC mechanism
* HDD drive bay equipped with anti-vibration function

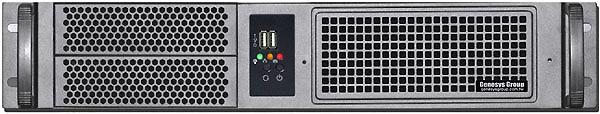

* Two USB 2.0 ports and LAN/HDD/Power LED at front bezel (two USB 3.0 as option)
* Four brand new 80mmx25mm intake 2-ball bearing fans (fan part# SunTai8025)
* With fan connector PCB in the middle fan wall

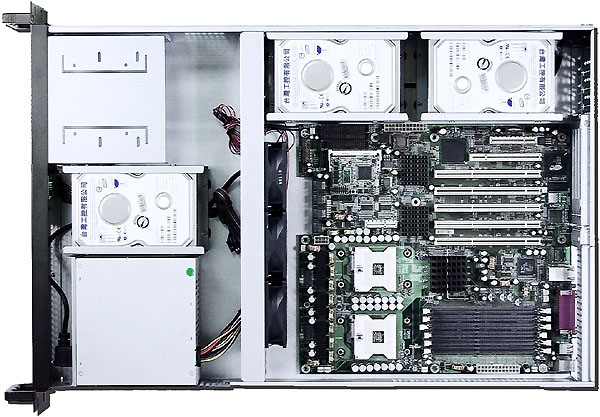

* MB: eATX EEB3.61(12"×13"), ATX(12"x9.6"), MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")
* Support
PS2 power supply with 80mm fan version (max. psu depth: 160mm)
* Support patented 3 slot full high risers or 7 slot Low Profile cards (max. 342mm long)
* Standard paint: scratch-resistant black textured at front
* Genesys Group chassis with build-in electronics in global 3 years warranty
* Chassis dimension: 19" x 2U x 660mm (25.98" deep)

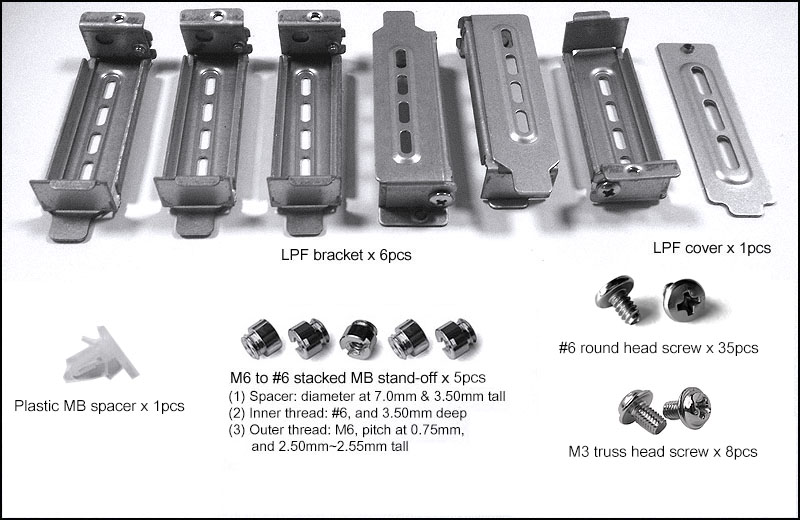

* Accessory: Screw x43, #6 stand-off x5, plastic stand-off x1, LPF bk x6, LPF cover x1

* Package: NW 9 KGM, GW 12 KGM, 2.81 CUFT (carton size at 80x56.8x17.5cm)

Model#

:

E266LB

2U black eATX ultra cool server chassis

Option A

:

2U riser card

2U riser card (please inform MB & interface card model# in order to recommend proper riser)

Option B

:

PS2 PSU

8cm & 12cm & 14cm fan version PS2 power supply (max. depth at 160mm)

Option C-1

:

NJ-600

600mm 2-layer 3-travel universal rail (cabinet internal depth 600~1200mm compliant)

Option C-2

:

1234U-RMK

1234U rear mounting kit

Option D-1

:

25-35-BK

1x5.25" to 1x3.5" HDD or 1x3.5" to two 2.5" SSD bracket

Option D-2

:

RW135-12G

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 12G

Option D-3

:

RW135

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 6G

Option D-4

:

TL135-12G

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option D-5

:

TL135

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option D-6

:

RW225-NVMe-U

1x5.25" to 2xUSB3 2x2.5" SSD Removable Cage U.2 NVMe 32G

Option D-7

:

RW225-NVMe

1x5.25" to 2x2.5" SSD Removable Cage U.2 NVMe 32G

Option D-8

:

RW225-12G

1x5.25" to 2x2.5" HotSwap Cage SATA/SAS 12G

Option D-9

:

RW625-12G

1x5.25" to 6x2.5" HotSwap Cage SATA/SAS 12G

Option D-10

:

RW825-1525

1x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option D-11

:

RW425-NVMe

1x5.25" to 4x2.5" SSD Removable Cage U.2 NVMe 32G

Option D-12

:

RW425-12G-MS

1x5.25" to 4x2.5" HotSwap Cage SFF-8643 12G

Option D-13

:

RW425-12G

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 12G

Option D-14

:

RW425

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 6G

Option E-1

:

2525TO3HDBK

2x5.25" to 3x3.5" bracket

Option E-2

:

RW335-12G

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 12G

Option E-3

:

RW335

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 6G

Option E-4

:

TL335-12G

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-5

:

TL335

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option F-1

:

1MSAS-4SATA-500MM

SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option F-2

:

SFF-8643-500MM

SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option F-3

:

4SATA-SFF-8643-500MM

Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option F-4

:

SFF-8643-4SATA-500MM

SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable

Option G-1

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (2U 3U 4U chassis compatible)

Option G-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option G-3

:

2U115XA

2U Intel LGA115x Xeon 1230 active CPU cooler (2U 3U 4U chassis compatible)

Option G-4

:

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3 (2U 3U 4U chassis compatible)

Option G-5

:

2U1331A-AM4

2U AMD LGA1331 active CPU cooler AM4 (2U 3U 4U chassis compatible)

Option G-6

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (2U 3U 4U chassis compatible)

Option G-7

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option G-8

:

2U4189A-M82

2U Intel LGA4189 active CPU cooler (2U 3U 4U chassis compatible)

Option G-9

:

2U1700A-V15

2U Intel LGA1700 active CPU cooler (2U 3U 4U chassis compatible)
