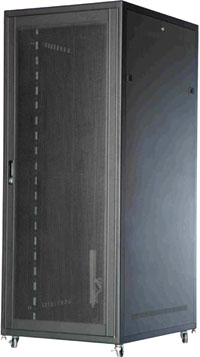

JR800 high level
server rack cabinet
Webpage updated on June 09, 2020
JR800 designed with 800mm external width but
19" rackmount internal width as standard, the two side of cabinet can be
installed
optional aluminum

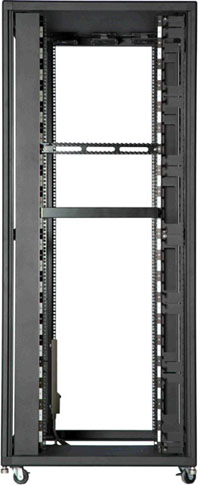

vertical cable fixture, it's suitable for Cable TV's cable
routing solution, at two side of spaces they can be built with two more 100mm
aluminum vertical cable fixtures (JR800 wide cabinet's optional part), the
cabinet's depth has three types (900mm~1000mm~1100mm),
four side comes with air flow vent holes in order to dissipate heat out of
cabinet, the main construction comes with bottom cover plate, aluminum made
ADC-12 three-way connection, top and bottom

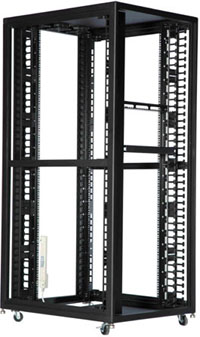

frame, major frame with aluminum extrusion, rackmount square mounting hole
holdings, each U display label that helps rackmount server chassis installation
with cabinet, horizontal enhanced holdings to make the whole mechanism
stronger, AC110V~220V-15A
eight inlet power strip as standard, main frame stainless steel screws, removable front
and rear door and side panels with honey comb vent holes
and helps the cooling very well, all front and rear door
equipped with keylock, active wheels
with brake, level foot, M5（M6）capture nuts and rackmount panel
screws as standard parts.
|
|
FEATURES:
JR800 series has specially designed with two 120mm x 25mm high speed but low noise AC 110V or 220V
fans (maximum can be installed with
totally 8 fans). The front and rear door are designed with honey comb air vent holes
with elegant and durable
mechanism that
helps the heat out of the cabinet inside. The removable side panels are also
designed with air vent holes that can quickly help the air flow from inside to
outside (cool air in and hot air out). The brand new style design, high durable
quality but light weight.
SPECIFICATION:
* Two 120mm x 25mm high speed / low noise AC 110V~220V
fans (max. 8 fans)
* Industrial grade aluminum main frame mechanism design
*
With every U display label
that helps rackmount chassis installation
* Front and rear door with honey comb vent
holes,
air
permeability at 65%
* Compatible with IBM, COMPAQ, HP, DELL, NEC, ACER rackmount chassis
* UL and CE approval certified
* EMC approval certifided (EMC compatibility passed)
* Military vibration test MIL-STD-810E certified (by 47U 1200mm deep
cabinet)
* Military vibration test MIL-STD-167 certified (by 47U 1200mm deep
cabinet)
* Cabinet heavy durability test 2000KG certified (by SGS laboratory)
* Cabinet Shelf heavy durability test 200KG certified (by SGS
laboratory) |
|
19" cabinet / Model No |
inside
H (mm) |
outside H (mm) |
inside D (mm) |
outside D (mm) |
outside W (mm) |
U |
|
JR800-45U-90/100/110 |
2001 |
2166 |
811/911/1011 |
900/1000/1100 |
800 |
45U |
|
JR800-42U-90/100/110 |
1867 |
2033 |
811/911/1011 |
900/1000/1100 |
800 |
42U |
|
JR800-41U-90/100/110 |
1823 |
1989 |
811/911/1011 |
900/1000/1100 |
800 |
41U |
|
JR800-35U-90/100/110 |
1556 |
1722 |
811/911/1011 |
900/1000/1100 |
800 |
35U |
|
JR800-30U-90/100/110 |
1333 |
1499 |
811/911/1011 |
900/1000/1100 |
800 |
30U |
|
JR800-25U-90/100/110 |
1112 |
1278 |
811/911/1011 |
900/1000/1100 |
800 |
25U |
|
JR800-20U-90/100/110 |
889 |
1055 |
811/911/1011 |
900/1000/1100 |
800 |
20U |
|
JR800-15U-90/100/110 |
667 |
833 |
811/911/1011 |
900/1000/1100 |
800 |
15U |
|
