4SATA-1MSAS-500MM
 |
Four SATA (Host) to SFF-8087 Mini-SAS (Device) cable
* Four SATA
(Host) to One
SFF-8087
Mini-SAS 6G (Device)
* RAID card or MB as SATA, hotswap backplane as SFF-8087 Mini-SAS
* Cable at 440mm, total length at 500mm (connectors at two sides
included)
* Global 3 years warranty
* Four to One, reverse data transfer |
|
.......................................................................................................................................................................................................................................................................................... |
|
1MSAS-4SATA-500MM
 |
SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable
* One
SFF-8087
Mini-SAS 6G (Host) to Four SATA
(Device)
* RAID card or MB as SFF-8087 Mini-SAS, hotswap backplane or HDD as SATA
* Cable at 440mm, total length at 500mm (connectors at two sides
included)
* Global 3 years warranty
* One to Four,
obverse data transfer |
|
.......................................................................................................................................................................................................................................................................................... |
|
1MSAS-1MSAS-500MM
 |
SFF-8087 Mini-SAS (Host) to Mini-SAS (Device) cable
* One
SFF-8087
Mini-SAS 6G (Host) to One
SFF-8087
Mini-SAS 6G (Device)
* RAID card or MB as SFF-8087 Mini-SAS, hotswap backplane as
SFF-8087 Mini-SAS
* Cable at 440mm, total length at 500mm (connectors at two sides
included)
* Global 3 years warranty
* One to One,
2way data transfer |
|
.......................................................................................................................................................................................................................................................................................... |
|
SFF-8643-500MM
 |
SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device)
cable
* One
SFF-8643
Mini-SAS HD 12G (Host) to One
SFF-8643
Mini-SAS HD 12G
(Device)
* RAID card or MB as SFF-8643 Mini-SAS HD, hotswap backplane as
SFF-8643 Mini-SAS HD
* Cable at 440mm, total length at 500mm (connectors at two sides
included)
* Global 3 years warranty
* One to One,
2way data transfer |
|
.......................................................................................................................................................................................................................................................................................... |
|
4SATA-SFF-8643-500MM
 |
Four SATA (Host) to SFF-8643 Mini-SAS HD (Device)
cable
* Four SATA
(Host) to One
SFF-8643
Mini-SAS HD 12G
(Device)
* RAID card or MB as SATA, hotswap backplane as
SFF-8643 Mini-SAS HD
* Cable at 440mm, total length at 500mm (connectors at two sides
included)
* Global 3 years warranty,
datasheet
* Four to One, reverse data transfer |
|
.......................................................................................................................................................................................................................................................................................... |
|
SFF-8643-4SATA-500MM
 |
SFF-8643 Mini-SAS HD (Host) to Four SATA (Device)
cable
* One
SFF-8643
Mini-SAS HD 12G (Host) to Four SATA
(Device)
* RAID card or MB as SFF-8643 Mini-SAS HD, hotswap backplane or HDD as SATA
* Cable at 440mm, total length at 500mm (connectors at two sides
included)
* Global 3 years warranty
* One to Four,
obverse data transfer |
|
.......................................................................................................................................................................................................................................................................................... |

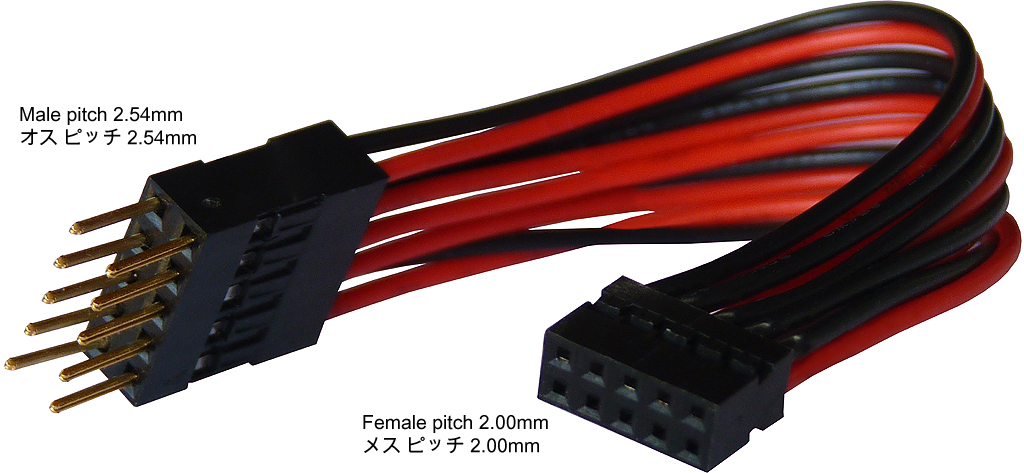

Male2.54-Female2.00
|
USB 2.0 Male2.54mm to Female2.00mm cable at 100mm
* Adapter when peripheral is USB 2.54mm connector but MB is USB
2.00mm interface
* Cable length at 100mm |
|
.......................................................................................................................................................................................................................................................................................... |

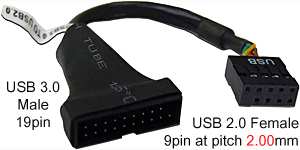

USB3-USB2-P2.00mm
|
USB3 male to USB2 female pitch 2.00mm at 200mm cable
* USB 3.0 19pin male
to USB 2.0 female 9pin at pitch 2.00mm
* Cable length at 200mm
* Note: data transmission speed maintains USB 2.0 |
|
.......................................................................................................................................................................................................................................................................................... |

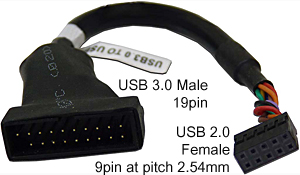

USB3-USB2-P2.54mm
|
USB3 male to USB2 female pitch 2.54mm at 150mm cable
* USB 3.0 19pin male
to USB 2.0 female 9pin at pitch 2.54mm
* Cable length at 150mm
* Note: data transmission speed maintains USB 2.0 |
|
.......................................................................................................................................................................................................................................................................................... |

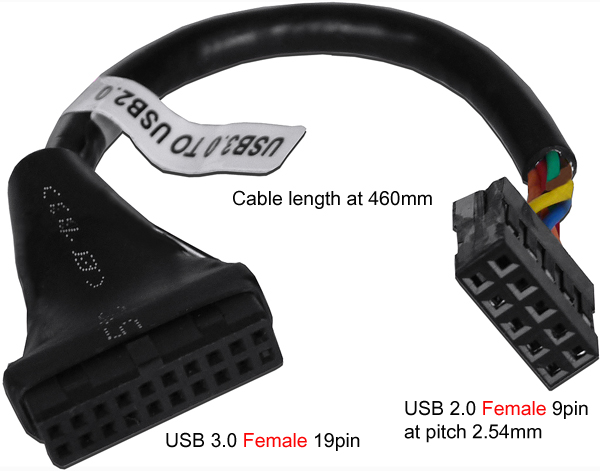

USB3-USB2-P2.54mm-460
|
USB3
Female to USB2 female pitch 2.54mm at
460mm cable
* USB 3.0 19pin
female
to USB 2.0 female 9pin at pitch 2.54mm
* Cable length at 460mm
* Note: data transmission speed maintains USB 2.0 |
|
.......................................................................................................................................................................................................................................................................................... |

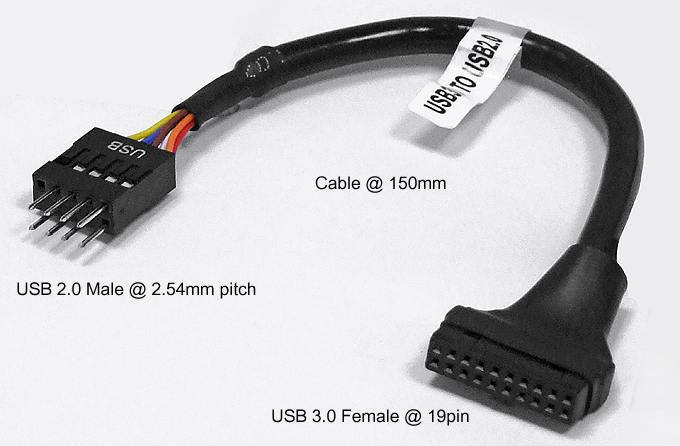

U2-P2.54-U3-150MM
|
USB2 2.54mm male to USB3 female 150mm cable
* USB 2.0 pitch 2.54mm male to USB3.0 19pin female
connector
* Application:
peripheral is USB 2.0 female at 2.54mm pitch, and MB is USB
3.0 19pin male
*
Cable length at 150mm
* Note: data transmission speed maintains USB 2.0 |
|
.......................................................................................................................................................................................................................................................................................... |

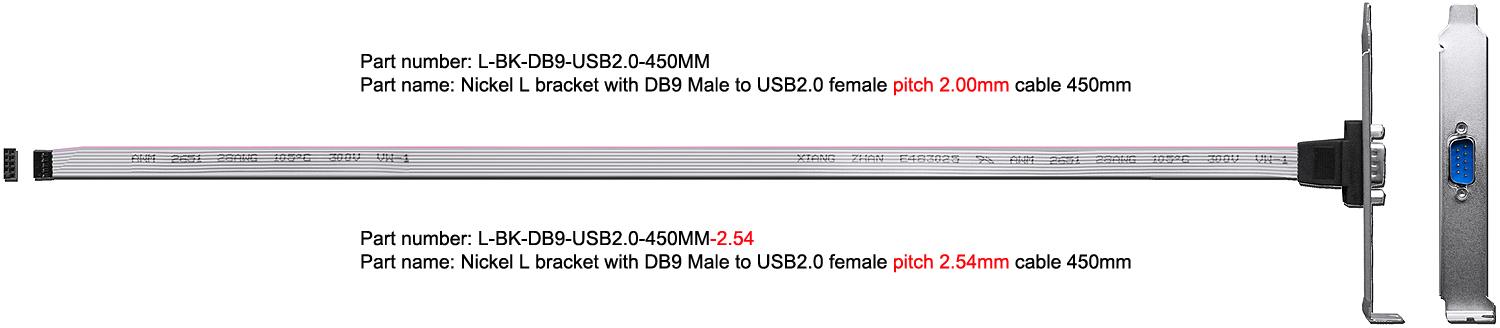

L-BK-DB9-USB2.0-450MM
|
Nickel L bracket with DB9 Male to
USB2.0 female pitch 2.00mm cable 450mm
* DB9 male connector
at full height plugin card bracket
* USB 2.0 female 9pin at pitch 2.00mm
* Cable length at 450mm (length is without two ends of connector)
* Note: part# for pitch 2.54mm is
L-BK-DB9-USB2.0-450MM-2.54
* Note: MOQ 100pcs |
|
.......................................................................................................................................................................................................................................................................................... |

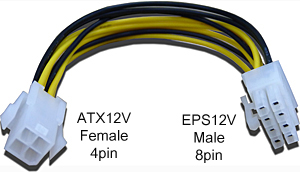

4TO8-150-ADAPTER
|
ATX12V 4-pin female to EPS12V 8-pin male adapter with 150mm
* Adapter when peripheral is ATX12V 4pin but MB is EPS12V 8pin interface
* Cable length at 150mm |
|
.......................................................................................................................................................................................................................................................................................... |

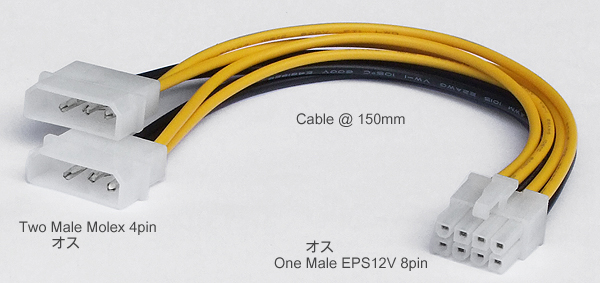

B4P-EPS8P-150MM
|
Molex 4pin Male to EPS12V 8pin Male adapter with 150mm
* Two Molex 4pin male to one EPS12V 8pin male connector
*
Application: peripheral is Molex 4pin female, and MB is EPS12V 8pin
female
* Cable length at 150mm |
|
.......................................................................................................................................................................................................................................................................................... |

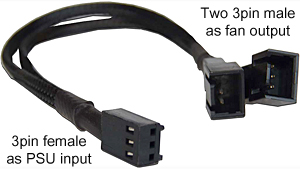

Y-CABLE-20191024
|
3 pin Female Y-Splitter to Dual 3 pin Male x2-fan-250mm
* One female 3pin as power input to two male 3pin as fan output
cable
* Cable length: 250mm |
|
.......................................................................................................................................................................................................................................................................................... |

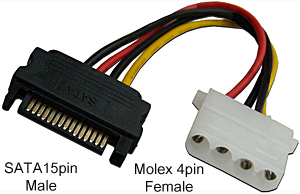

SATA-MALE-MOLEX-FEMALE-150MM
|
SATA 15pin Male to Molex 4pin Female adapter with 150mm
* One Male SATA15pin PSU input to One Female Molex 4pin PSU output
* Cable length: 150mm |
|
.......................................................................................................................................................................................................................................................................................... |
|

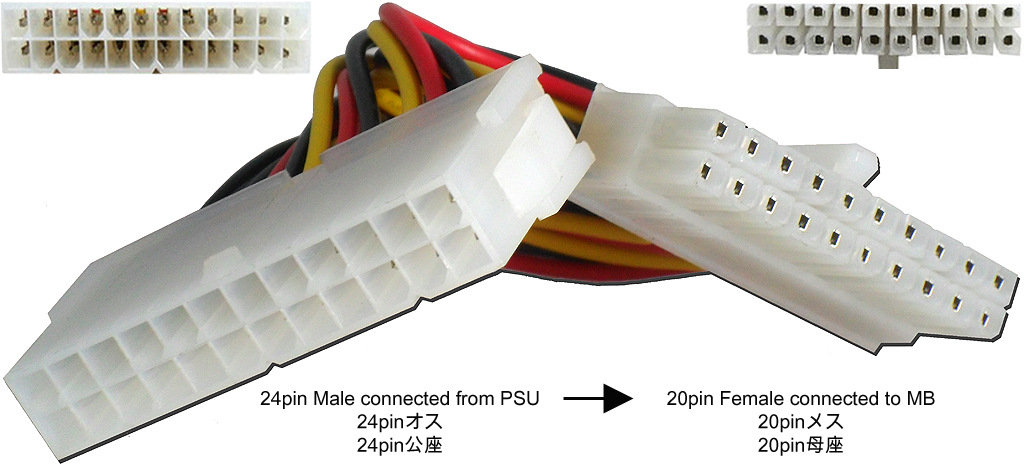

24TO20-150exted
 |
SSI 24pin Male to ATX12V 20pin Female converter
* SSI 24pin Male to ATX12V 20pin Female connector
* Cable length between 100mm~200mm
* Suitable when PSU
is 24pin but MB is 20pin on board |
|
.......................................................................................................................................................................................................................................................................................... |
|

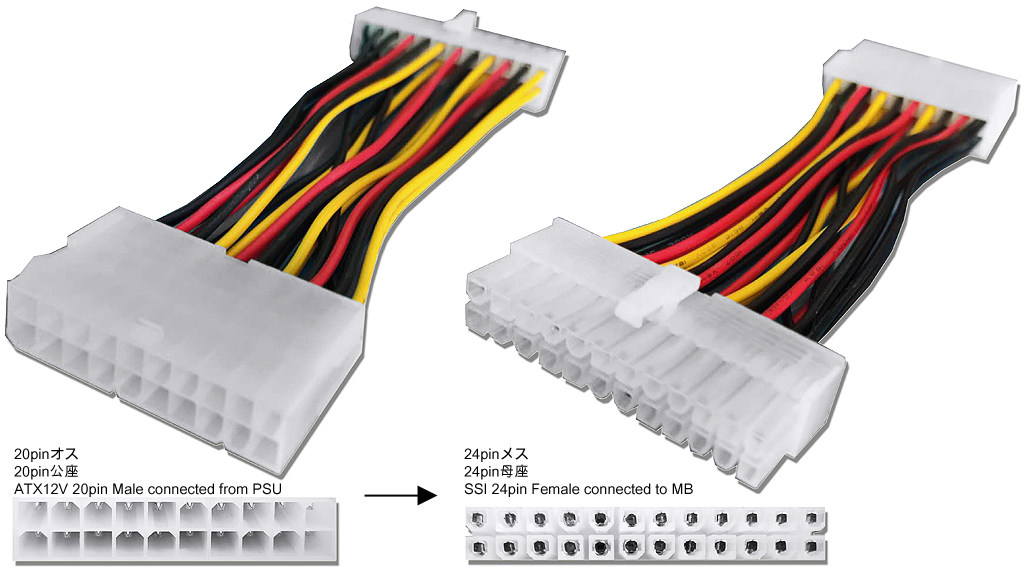

20TO24-150EXTEND
 |
ATX12V 20pin Male to SSI 24pin Female converter
* ATX12V 20pin Male to SSI 24pin Female connector
* Cable length between 100mm~200mm
* Suitable when PSU
is 20pin but MB is 24pin on board |
|
.......................................................................................................................................................................................................................................................................................... |
|

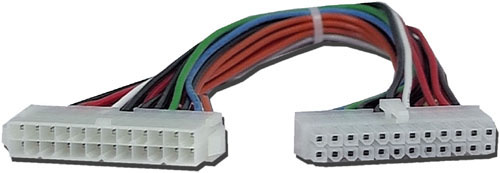

24TO24-300exted
 |
SSI 24pin 300mm extension
* SSI 24pin female to male connector extension
* cable length at 300mm
* suitable for inadequate
length of 24pin connector |
|
.......................................................................................................................................................................................................................................................................................... |
|

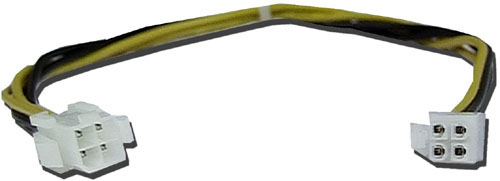

4TO4-300exted
 |
ATX12V 4pin 300mm extension
* ATX 12V 4pin female to male connector extension
* cable length at 300mm
* suitable for inadequate
length of ATX12V 4pin connector |
|
.......................................................................................................................................................................................................................................................................................... |
|

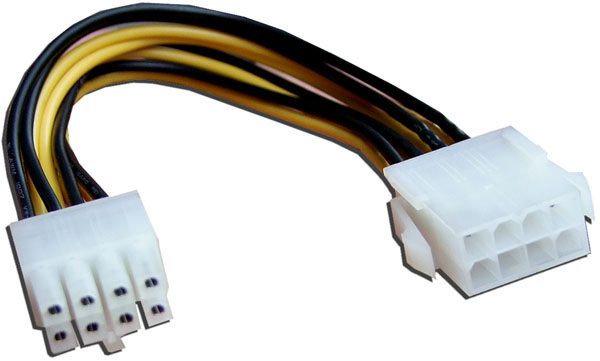

8TO8-150exted
 |
EPS 8pin to EPS 8pin 150mm extension
* EPS 12V 8pin female to male connector extension
* cable length at 150mm
* suitable for inadequate
length of EPS12V 8pin connector |
|
.......................................................................................................................................................................................................................................................................................... |
|

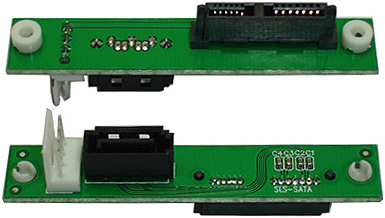

CLKF656
 |
SATA to SATA Slim ODD adapter
* Slim
CD-ROM/DVD/DVD-RW terminal: slim SATA (7pin+6pin)
* MB terminal: small 4pin as power input, SATA 7pin as data transfer
port |
|
.......................................................................................................................................................................................................................................................................................... |
|

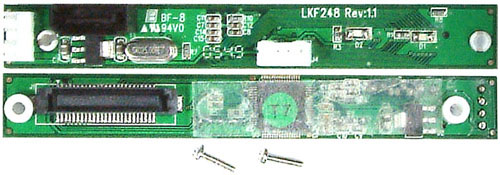

LKF248
 |
Slim ODD SATA2 adapter
* traditional Slim CD-ROM/DVD/DVD-RW interface into SATAII port on MB
* M2 screw x 2pcs included |
|
.......................................................................................................................................................................................................................................................................................... |
|

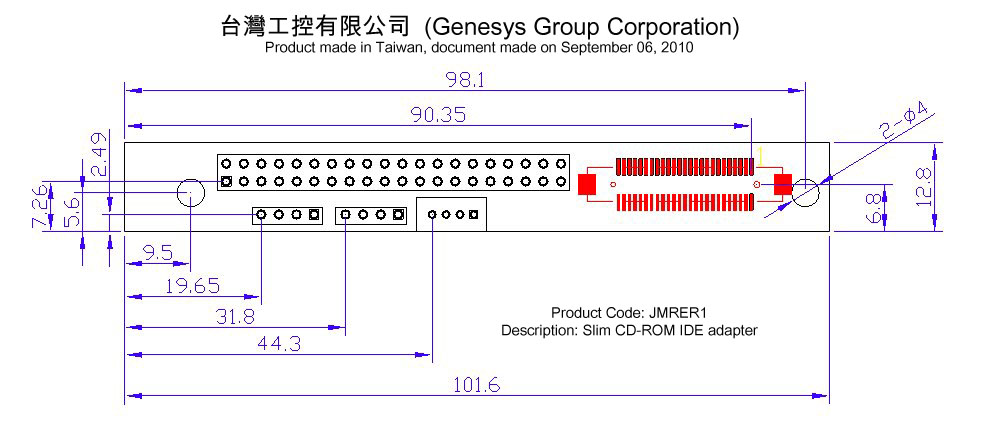

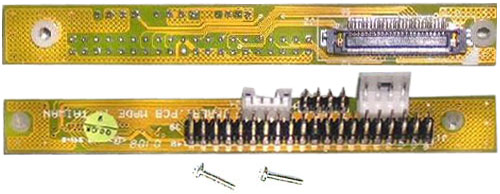

JMRER1
 |
Slim ODD IDE adapter
* traditional Slim CD-ROM/DVD/DVD-RW interface into IDE port on MB
* M2 screw x 2pcs included
*
drawing with dimensions |
|
.......................................................................................................................................................................................................................................................................................... |
|

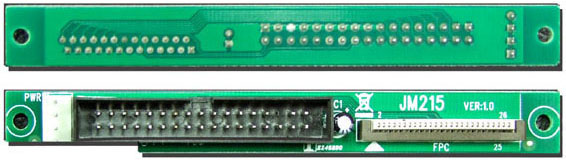

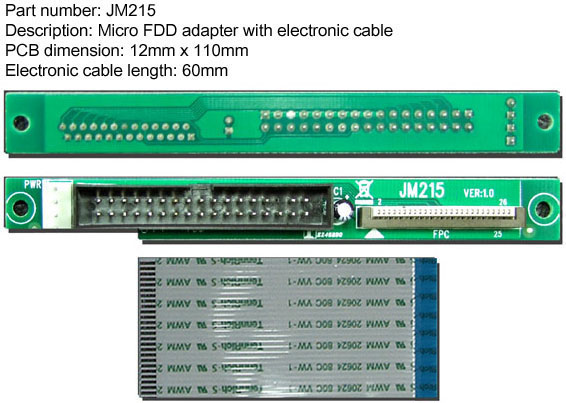

JM215
 |
Micro FDD adapter with electronic
cable
*
drawing with dimensions |
|
.......................................................................................................................................................................................................................................................................................... |
|
2525TO3HDBK
 |
2x5.25" to
3x3.5" bracket
* Two 5.25" drive space converting to three 3.5" HDD
* With 2 pieces as 1 pair (set) |
|
.......................................................................................................................................................................................................................................................................................... |
|

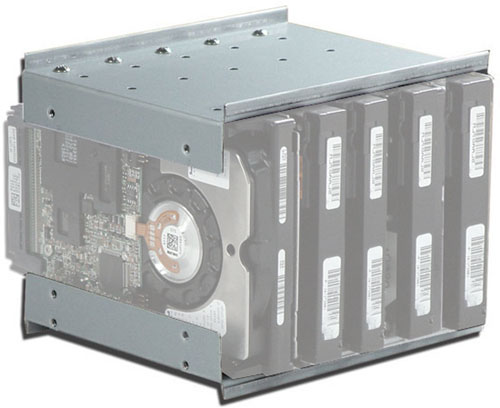

3525TO5HDBK
 |
3x5.25" to
5x3.5" bracket
* Three 5.25" drive space converting to five 3.5" HDD
* With 2 pieces as 1 pair (set)
* Design updated date:
December 03, 2014 |
|
.......................................................................................................................................................................................................................................................................................... |
|
25-35-BK
 |
5.25" 3.5" 2.5" multiple HDD bracket
* unique and universal design, 1x5.25" ODD space to 1x3.5" bracket
* 1x 3.5" HDD space to 2x2.5" bracket also compatible
* (7mm high 2.5" HDD x 2pcs compatible )
* (9.5mm high 2.5" HDD x 2pcs compatible)
* (12.5mm high 2.5" HDD x 2pcs compatible)
* (15mm high 2.5" HDD x only 1pcs compatible)
* one unit means one pair (installation
guide)
*

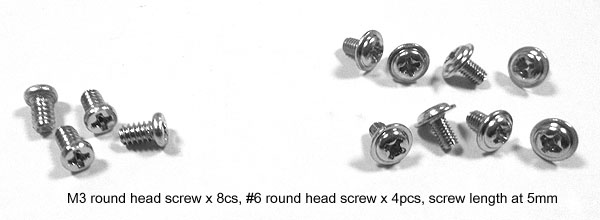

accessory pack:: M3 round head screw x 8cs, #6 round head screw x
4pcs (drawing with dimensions) |
|
|
