CABINET ACCESSORY
webpage updated on September 07, 2021

..........................................................................................................................................................................................................................................................................................

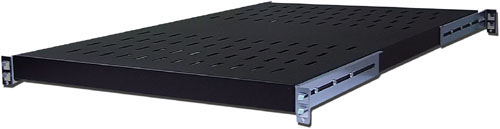

CR001

1U heavy duty component shelf
* durable for
80 kgs, heavy duty steel made shelf
* CR001B-390mm: suitable cabinet's external depth at 600mm
* CR001B-490mm: suitable cabinet's external depth at
750mm
* CR001B-690mm: suitable cabinet's external depth at 900mm, 1000mm, 1100mm

..........................................................................................................................................................................................................................................................................................

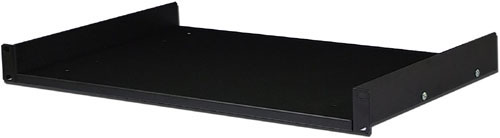

CR002

1U component shelf
* Depth at
11.81" (300mm), durable for 10 kgs
* Wallmount cabinet compatible as well
* Model number CR00
2 painted in beige, CR002B painted in black
* Package: 1 pcs / carton
*
Dimensional Drawing

..........................................................................................................................................................................................................................................................................................

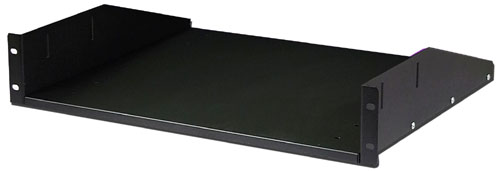

CR003

2U component shelf
* depth at
15.35" (390mm), durable for 25 kgs
* suitable to load light weight stuff such as computer peripheral or modem and printers
* all cabinet compatible
* package: 1 pcs / carton

..........................................................................................................................................................................................................................................................................................

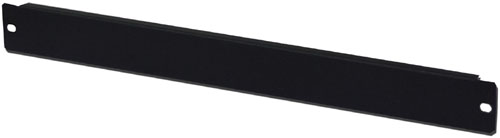

CR004

1U spacer blank
* SPCC steel sheet metal painted in beige or black
* all cabinet compatible

..........................................................................................................................................................................................................................................................................................

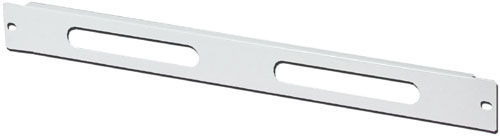

CR005

1U 2 hole brush strip panel
* SPCC steel sheet metal painted in beige or black
* all cabinet compatible

..........................................................................................................................................................................................................................................................................................

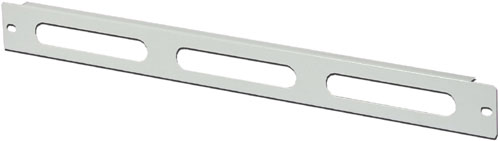

CR006

1U 3 hole brush strip panel
* SPCC steel sheet metal painted in beige or black
* all cabinet compatible

..........................................................................................................................................................................................................................................................................................

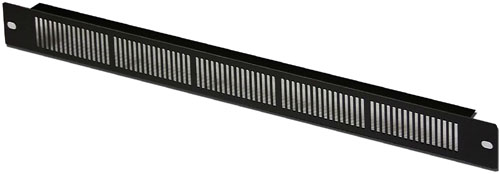

CR007

1U ventilated entry panel
* SPCC steel sheet metal painted in beige or black
* all cabinet compatible

..........................................................................................................................................................................................................................................................................................

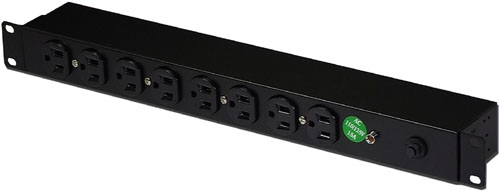

CR009

1U 8 port 110VAC/20A steel power strip
* SPCC steel sheet metal painted in beige or black
* AC inlet socket: NEMA-5-15R (UL plug and grounding
)
* plug type: NEMA 5-15P (UL plug and grounding
)
* compatible countries: Taiwan, Japan and USA
* can be fixed in front or rear side of cabinet

* remark: if 30A required, please inform when ordering

..........................................................................................................................................................................................................................................................................................

CR010

Aluminum 12 port 110VAC vertical power strip
* Aluminum sheet metal painted in beige or black
* AC inlet socket: NEMA-5-15R (UL plug and grounding
)
* plug type: NEMA 5-15P (UL plug and grounding
)
* compatible countries: Taiwan, Japan and USA (if 220~240VAC required, please inform when ordering)
* depth can be vertically installed in cabinet, model CR010 height at
1170mm

..........................................................................................................................................................................................................................................................................................

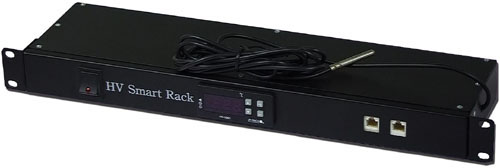

CR011

1U intelligent temperature sensor unit
* SPCC steel sheet metal painted in beige or black, temperature detected in 24 hours, wire length at 3 meters

* the 01~03 socket with 3-stage output/fan1/fan2/output alerm, the 04 socket requires software to work

* with overheat alert function, buffer and alert light equipped, temperature control can be adjusted
* build-in with
VAC 110V power cord at 3 meters long

* compatible countries: Taiwan, Japan and USA (if 220~240VAC required, please inform when ordering)
*
Rear Panel View

..........................................................................................................................................................................................................................................................................................

CR012

2U spacer blank
* SPCC steel sheet metal painted in beige or black
* all cabinet compatible

..........................................................................................................................................................................................................................................................................................

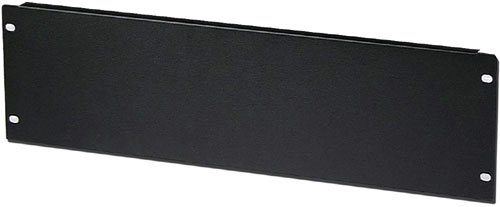

CR013

3U spacer blank
* SPCC steel sheet metal painted in beige or black
* all cabinet compatible

..........................................................................................................................................................................................................................................................................................

CR014

4U spacer blank
* SPCC steel sheet metal painted in beige or black
* all cabinet compatible

..........................................................................................................................................................................................................................................................................................

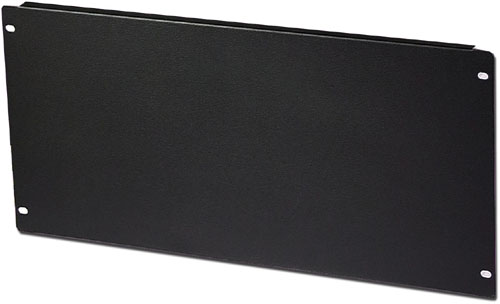

CR015

5U spacer blank
* SPCC steel sheet metal painted in beige or black
* all cabinet compatible

..........................................................................................................................................................................................................................................................................................

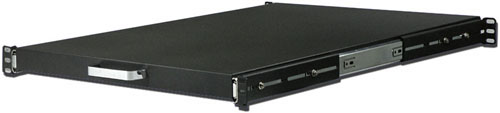

CR016

1U shelf drawer
* durable for
60 kgs, model depth has 550mm
* suitable cabinet's external depth at
750mm~1000mm



..........................................................................................................................................................................................................................................................................................

CR017

1U English keyboard & touchpad drawer
* 105 key (88+17), drawer depth
355mm
* with
180cm PS2 & USB keyboard and mouse connector
* with cable folder
*
front and rear view
* package: NW 5 KGM, GW 6 KGM, 1.1 CUFT (carton size: 525 x 460 x 130 mm)

..........................................................................................................................................................................................................................................................................................

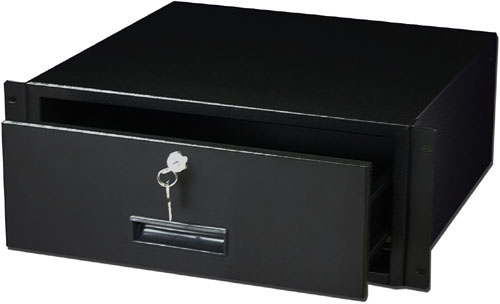

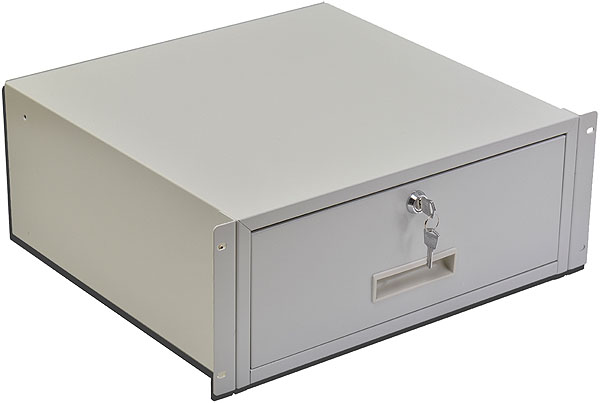

CR018

4U box drawer
* model depth at
412mm (16.22")
* all cabinet compatible

* CR018B is black painted, CR018 is beige painted

..........................................................................................................................................................................................................................................................................................

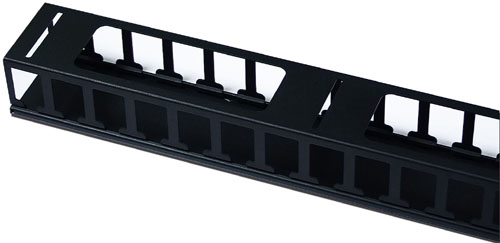

CR022

Aluminum 41U cable fixture
*
41U TM800 and SR800 wide cabinet compatible
* remark:
please inform while ordering if the form factor is beyond 41U

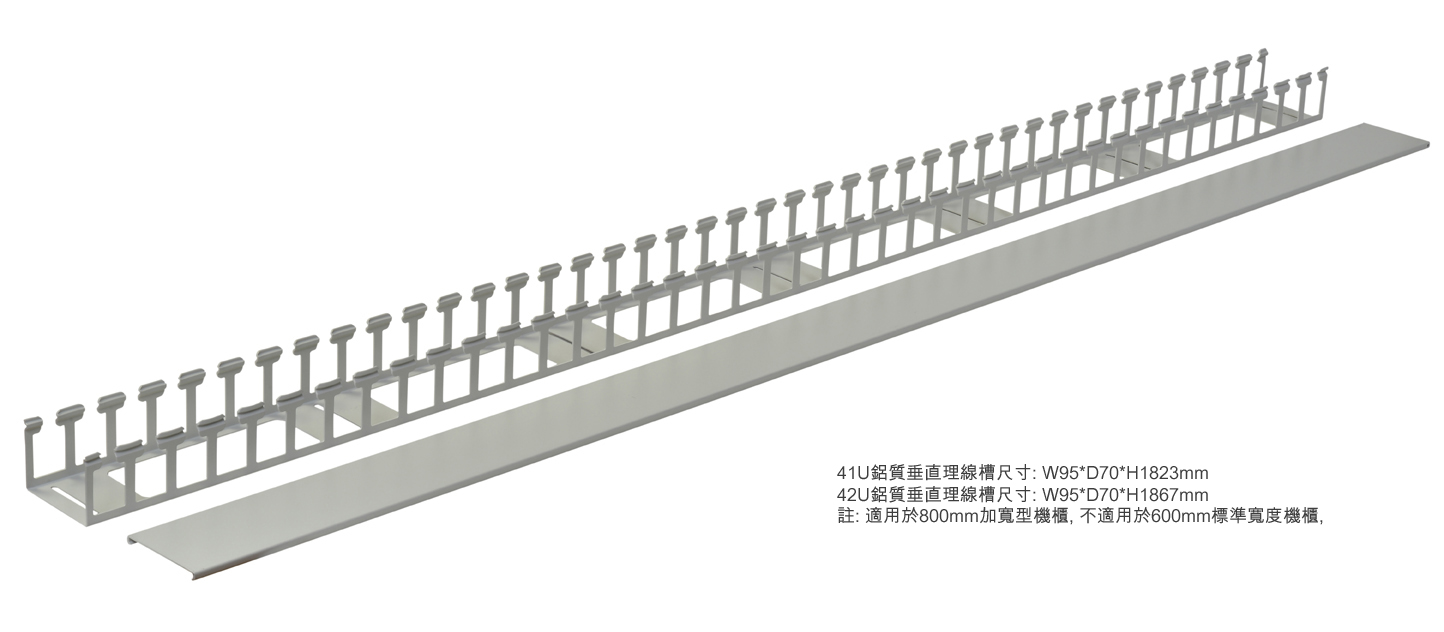

* full view

..........................................................................................................................................................................................................................................................................................

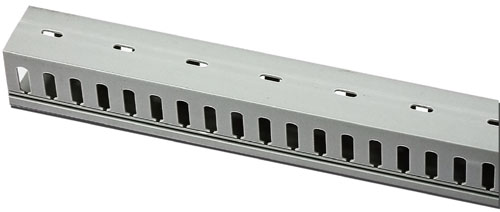

CR023

Plastic 41U cable fixture
*
41U TM series cabinet compatible
* remark:
please inform while ordering if the form factor is beyond 41U

..........................................................................................................................................................................................................................................................................................

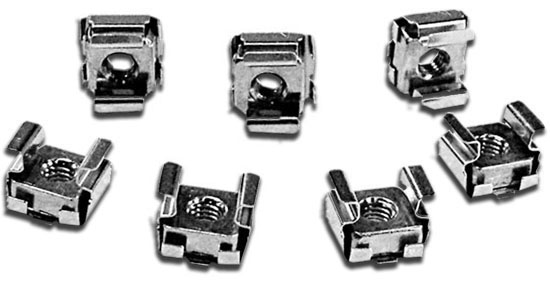

CR026

M5 Cage nuts
* 50 pcs / pack

* Part number as CR026M6 if it's M6 thread

..........................................................................................................................................................................................................................................................................................

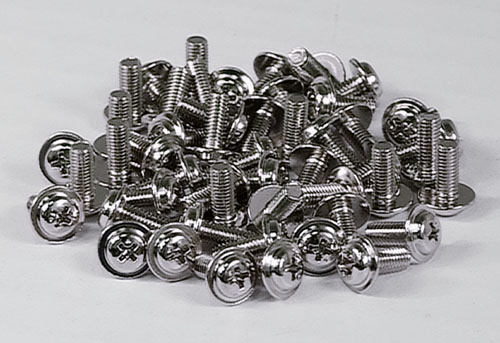

CR027

M5 Torx screw
* 50 pcs / pack

* Part number as CR027M6 if it's M6 thread

..........................................................................................................................................................................................................................................................................................

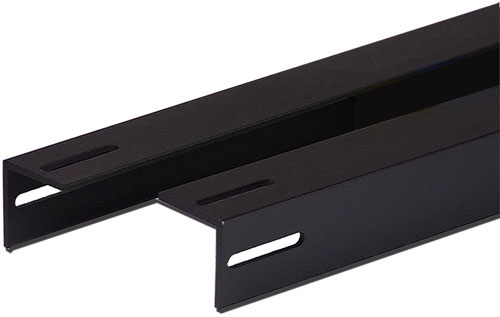

CR036

Aluminum L angles
* aluminum material by
AL6063T5

* each unit: pair
* CR036B-390mm: 1U black aluminum L angles, suitable cabinet's external depth at 600mm
* CR036B-480mm: 1U black aluminum L angles, suitable cabinet's external depth at
750mm
* CR036B-690mm: 1U black aluminum L angles, suitable cabinet's external depth at 900mm

..........................................................................................................................................................................................................................................................................................

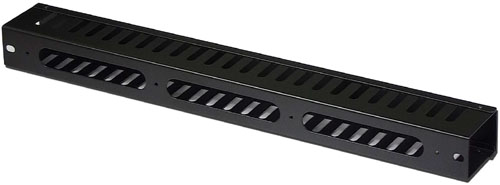

CR041

1U managed cable minder
* 24 cable routing ports, depth at 60mm
* SPCC steel sheet metal painted in beige or black
* all cabinet compatible

..........................................................................................................................................................................................................................................................................................

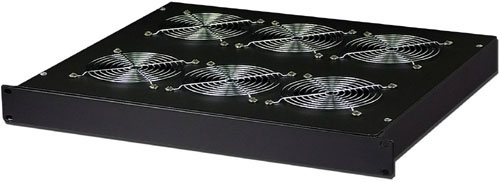

CR043

1U 110VAC 6fan module
* model depth at
15.75" (400mm), 120mm x 25mm AC fans
* compatible countries: Taiwan, Japan and USA (if 220~240VAC required, please inform when ordering)

..........................................................................................................................................................................................................................................................................................

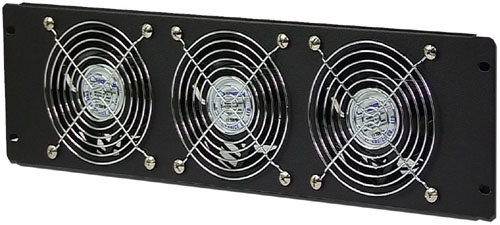

CR046

3U 110VAC 3fan module
* SPCC steel sheet metal painted in beige or black, 120mm x 25mm AC fans
* compatible countries: Taiwan, Japan and USA (if 220~240VAC required, please inform when ordering)

..........................................................................................................................................................................................................................................................................................
