E239B 2U ENTERPRISE SERVER CHASSIS

Design and 1st production and shipment launched on May 25, 2015, webpage updated on August 31, 2021

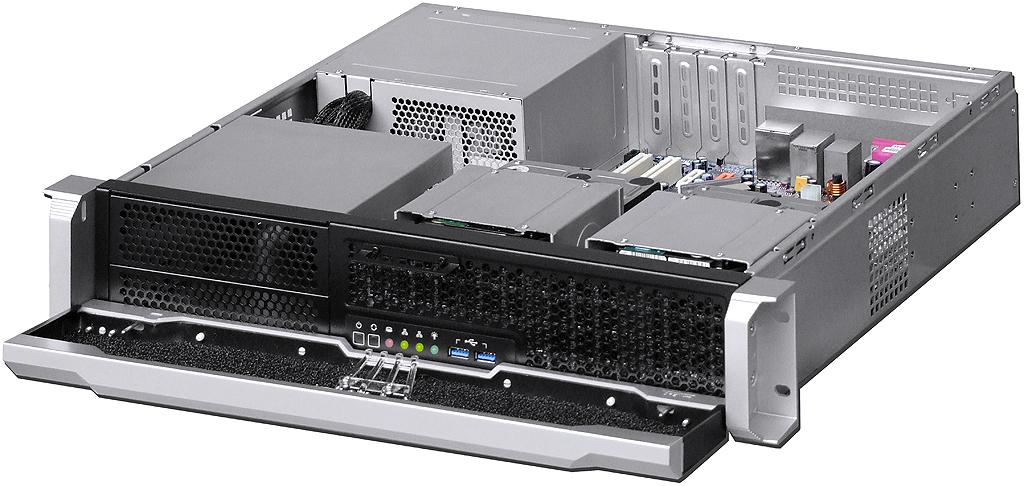

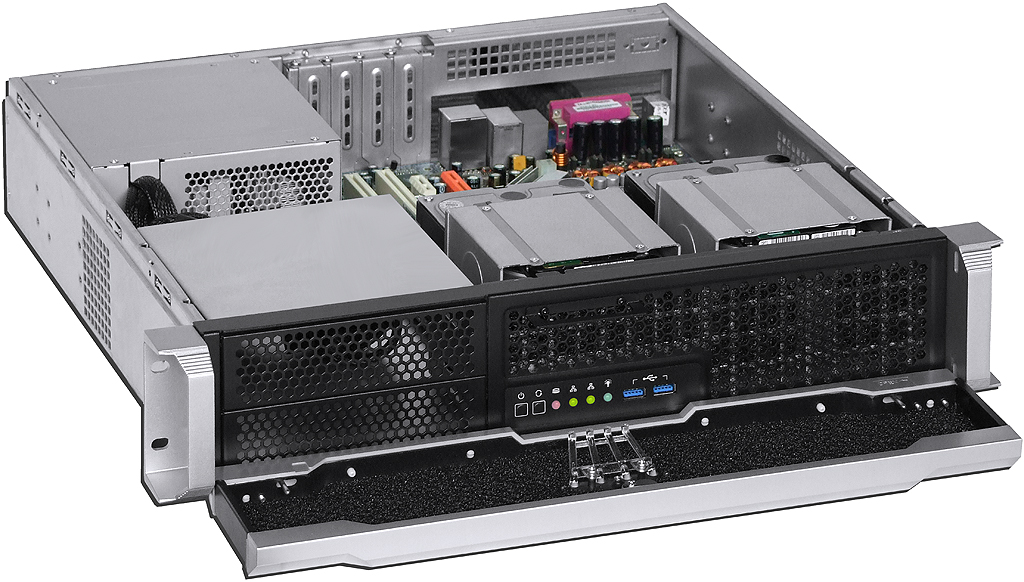

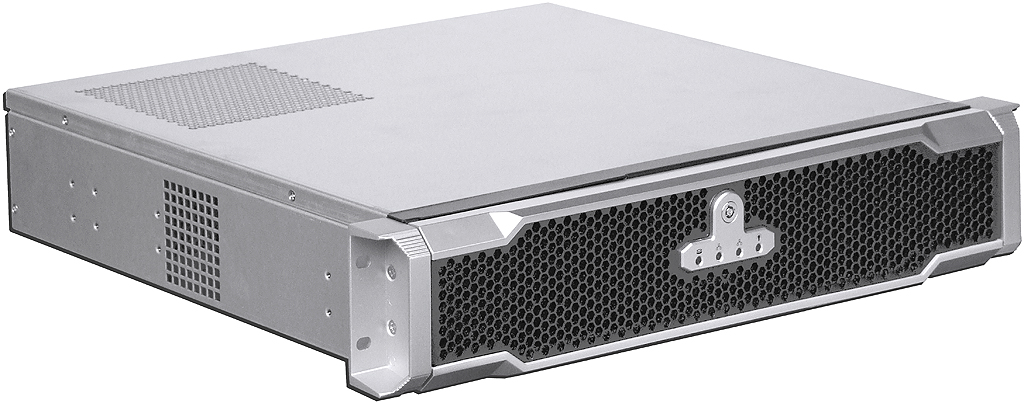

The most obvious feature of this E239B chassis is its depth 385mm only. In addition, its unique stylish mechanism and excellent ventilation as well as the dust-proof design are also the major characteristics. The main structure made by 1.2mm SGCC ultra high strength sheet metal plate with no sharp corners and burrs. The front security door design also ensure data security and avoid improper burning discs or USB drive to copy data security vulnerabilities caused. This model can be installed in addition to the regular standard MicroATX 9.6" x9.6" motherboard, also compatible with the smaller size of server motherboard such as Mini-ITX form factor, for a variety of system environments, the good price competition and the advantage of this chassis design, welcome worldwide distribution.

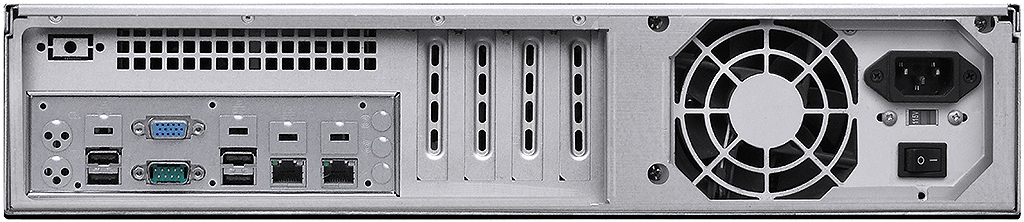

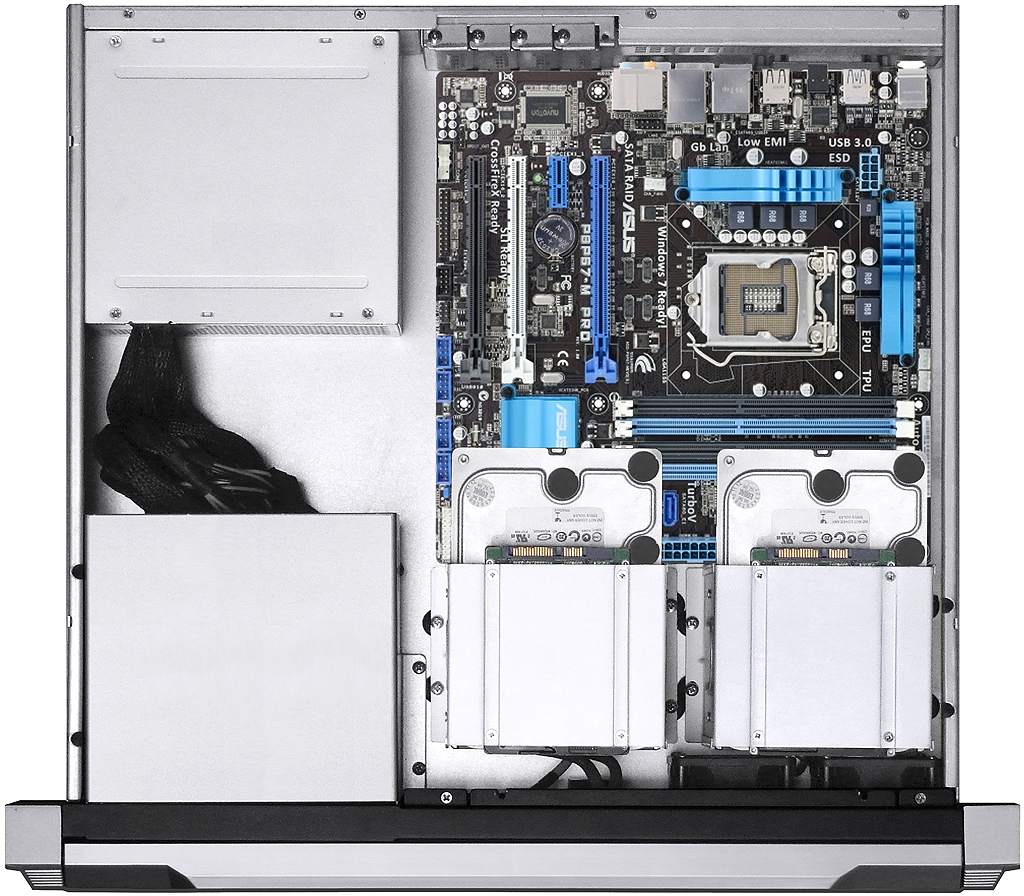

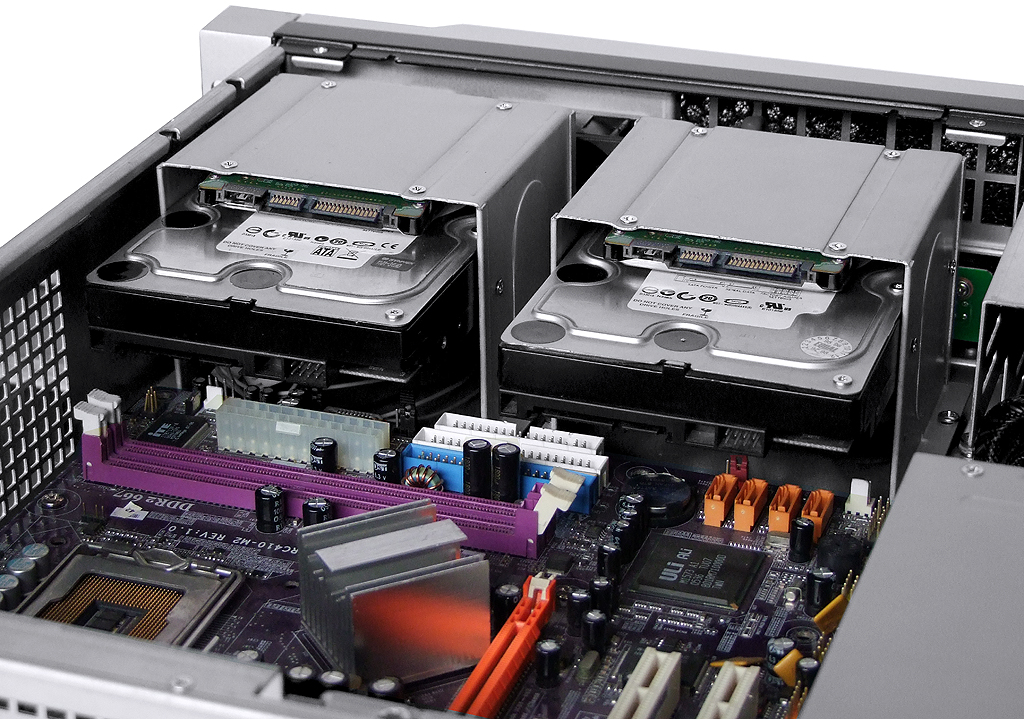

* Totally 6 drive bays: 2 x 5.25" ODD, 2 x 3.5" HDD, 2 x 2.5" HDD (max. height at 9.5mm)
* Drive bay equipped with anti-vibration function, extend storage appliance life

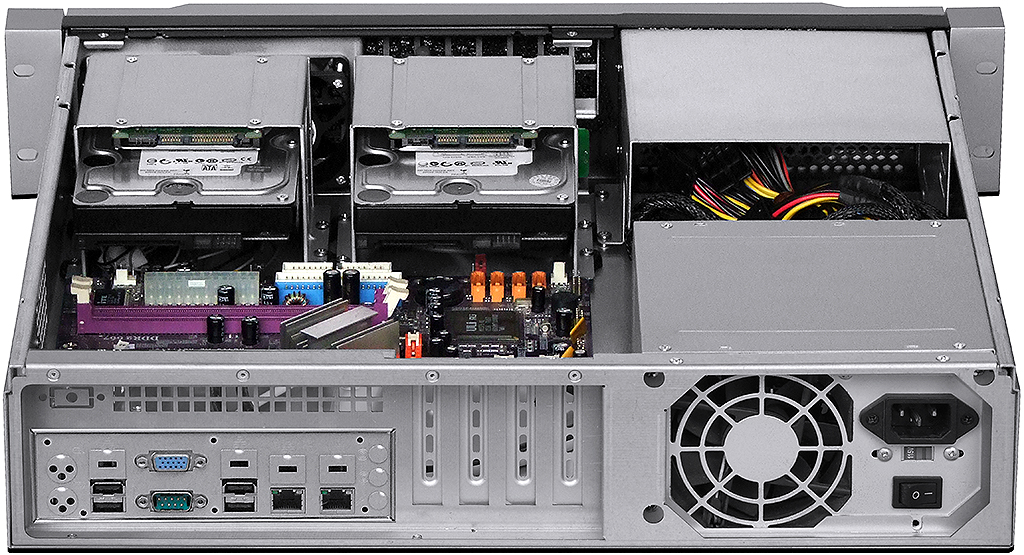

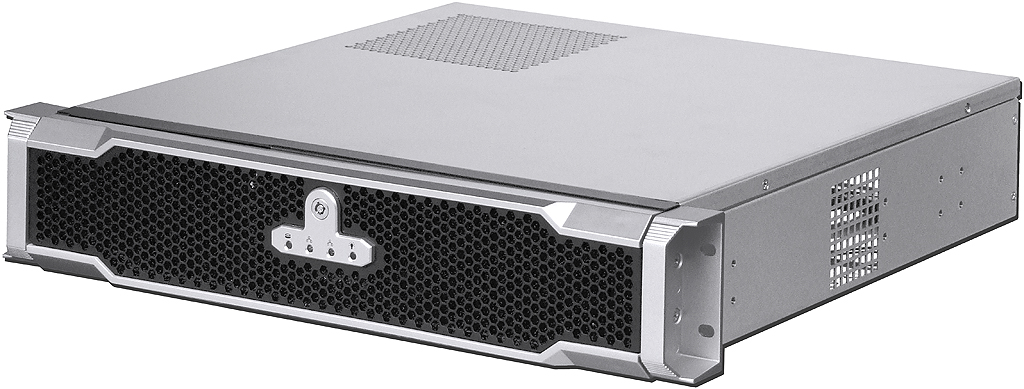

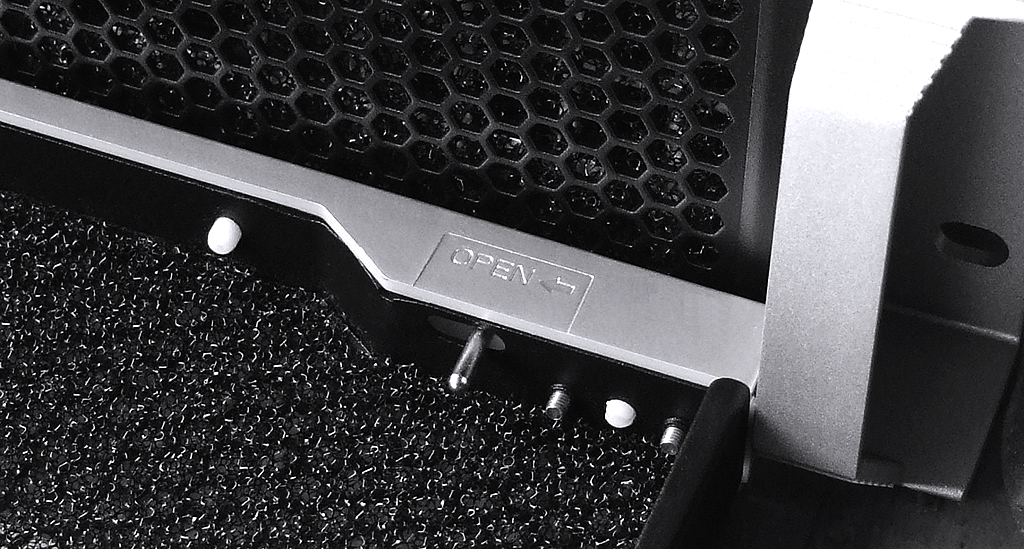

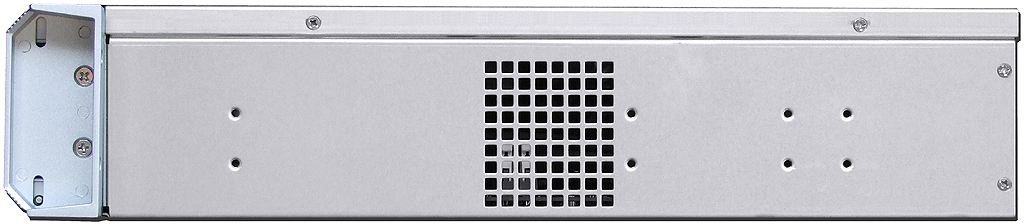

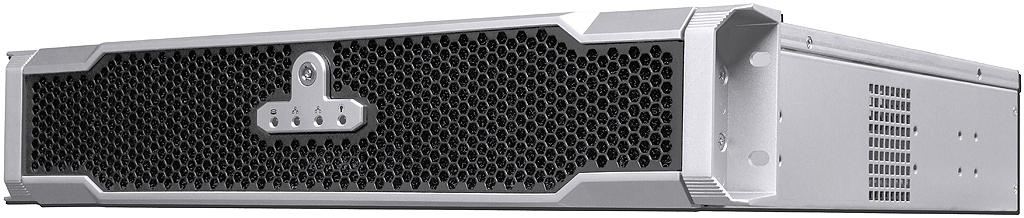

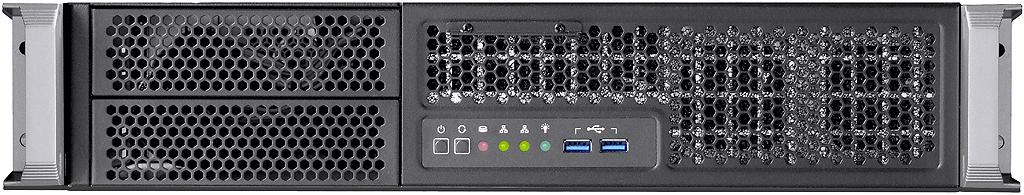

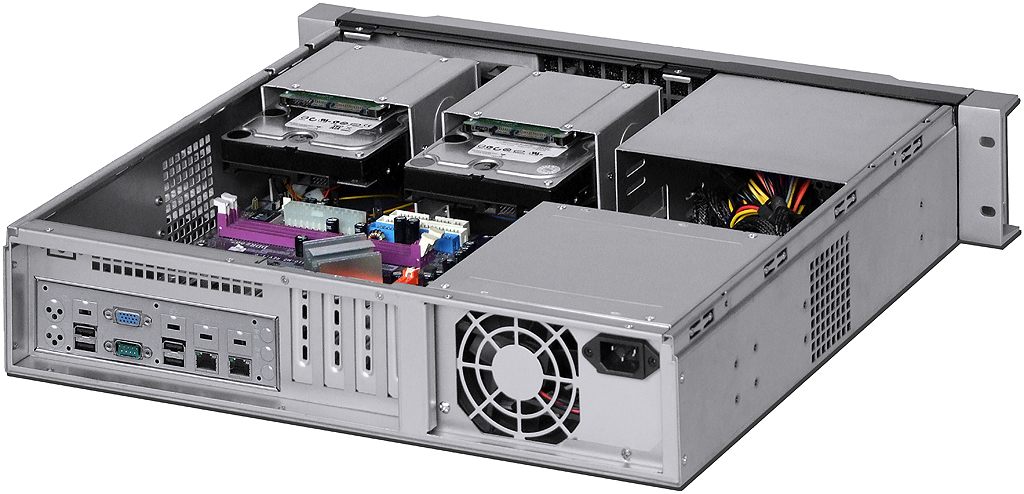

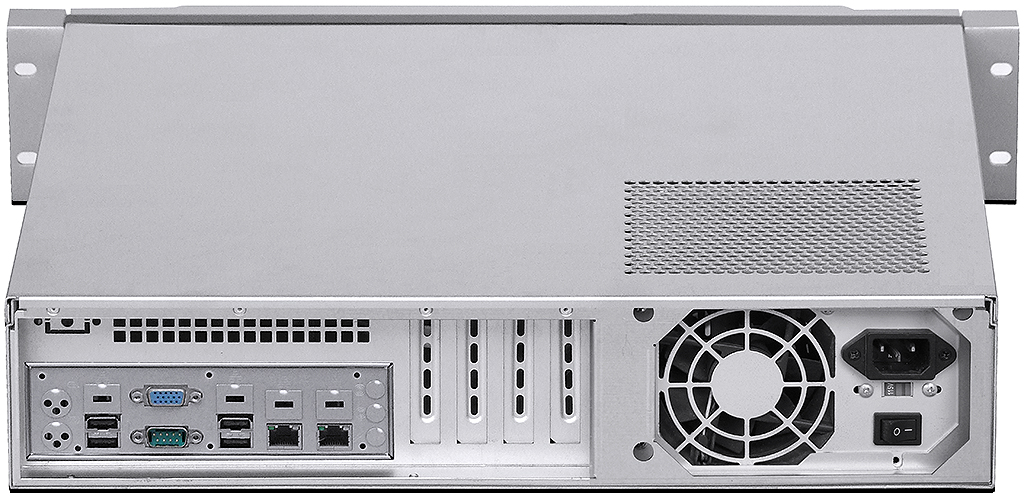

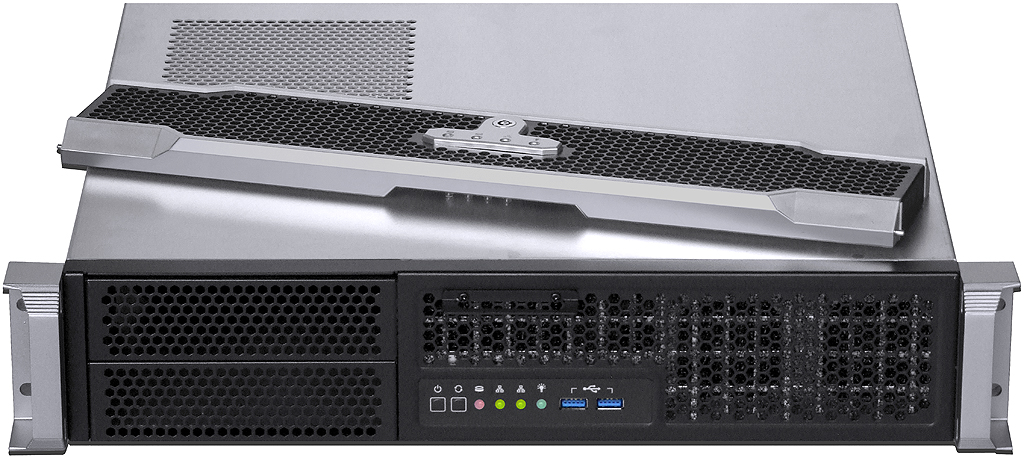

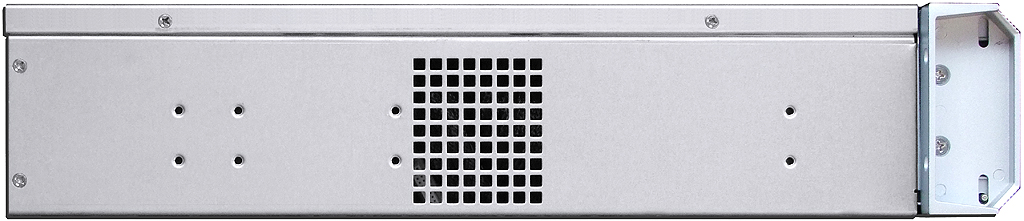

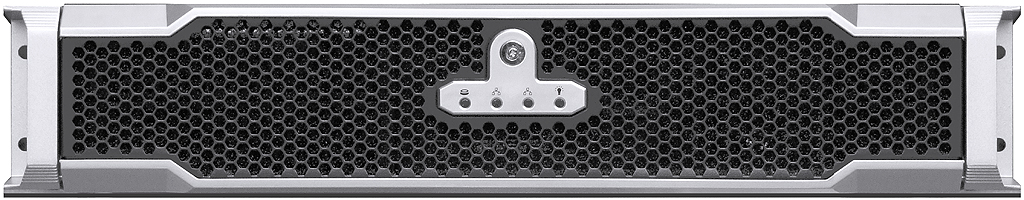

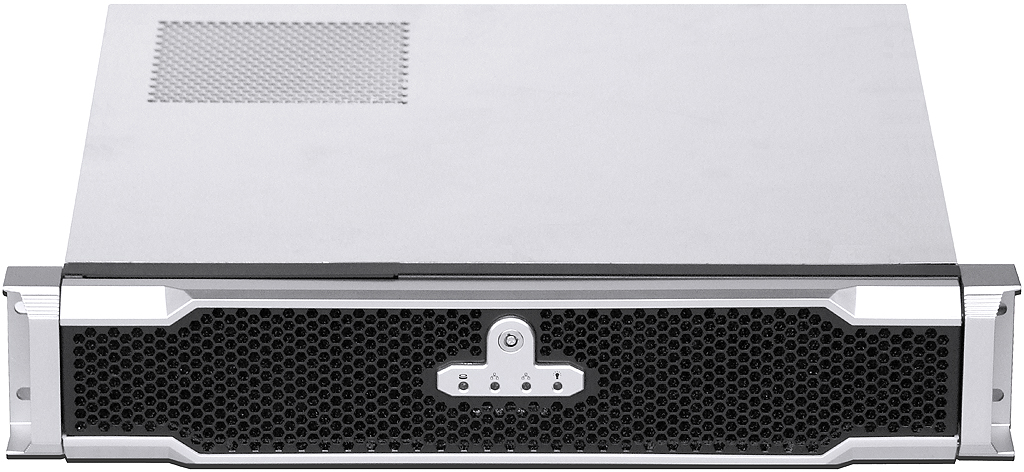

* Removable front keylock security door with dustproof filter

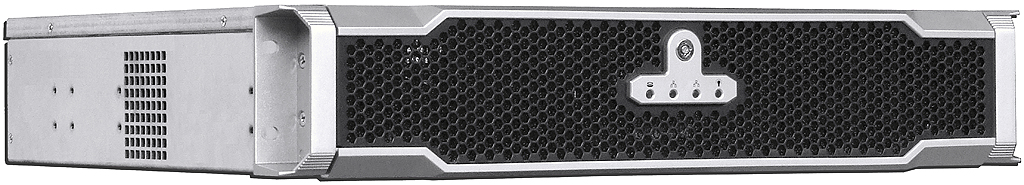

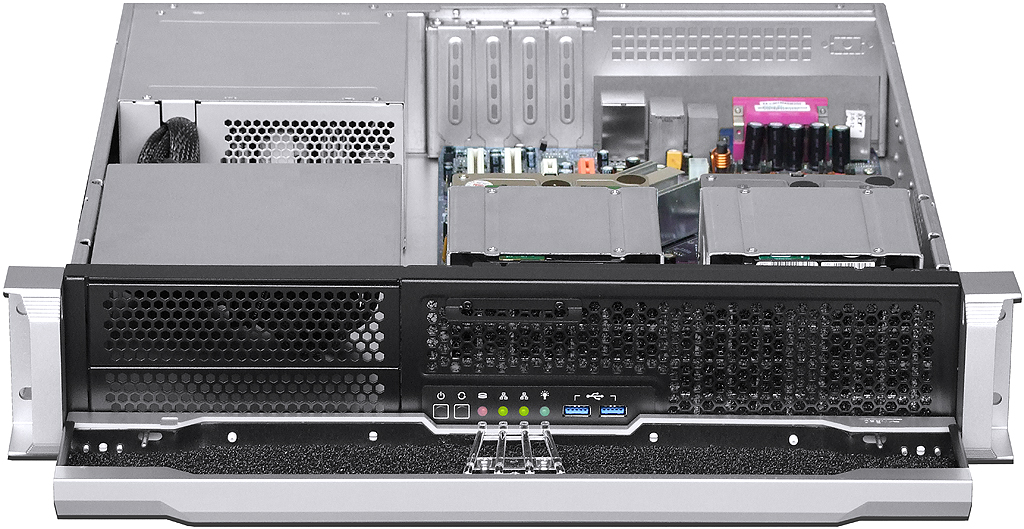

* Two USB 3.0 ports behind the front keylock security door (USB 2.0 also compatible)

* Main structure of SGCC sheet metal thickness at 1.2mm with protective sheet on surface
* Two 60mmx25mm intake 2ball fans with dustproof filter at front (fan part# DF6025HB1)

* Compatible motherboard: MicroATX(9.6"x9.6"), Mini-ITX(6.7"x6.7")
* Support PS2 8cm or 12cm~14cm fan version psu (max. psu depth at 140mm~180mm)

* If 140mm deep PS2 psu installed, 5.25" ODD device by 220mm deep also compatible

* If 180mm deep PS2 psu installed, 5.25" ODD device by 170mm deep also compatible

* If front fixed with 3.5" HDD, 4 slot low profile plugin cards (max. depth 170mm)

* If front fixed w/o 3.5" HDD & bracket, 4 slot low profile plugin cards (max. depth 330mm)
* Standard paint: scratch-resistant black textured at front

* Genesys Group chassis with build-in electronics in global 3 years warranty
* Chassis dimension: 19" x 2U x 385mm (15.16" deep)

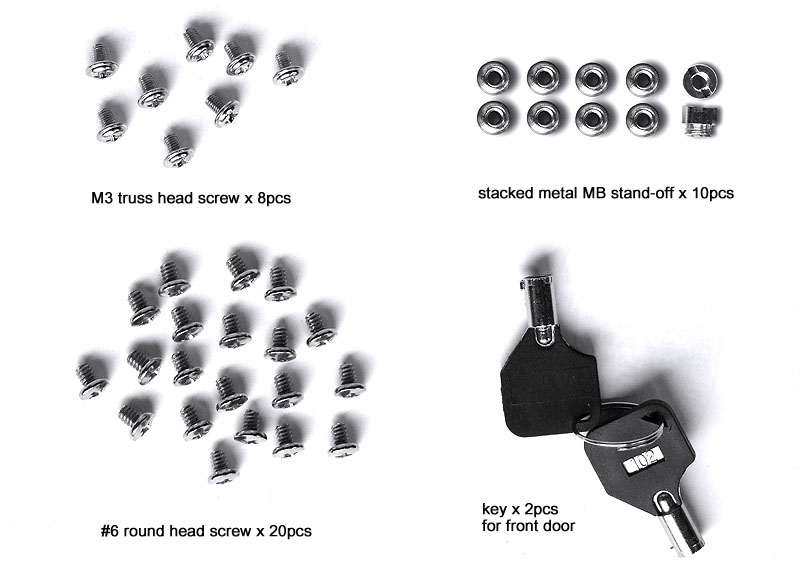

* Accessory: M3 truss x8, #6 round x20, metal stand-off x10, key x2
* Package: NW 6.5 KGM, GW 8 KGM, 1.71 CUFT (carton size at 55x55x16cm)

Model#

:

E239B

2U black MicroATX enterprise server chassis

Option A

:

PSU

PS2 8cm or 12cm~14cm fan version power supply (max. psu depth at 140mm~180mm)

Option B-1

:

NJ-600

600mm 2-layer 3-travel universal rail (cabinet internal depth 600~1200mm compliant)

Option B-2

:

NJ-2020-18

18-inch full extension slide rail (cabinet internal depth 456.7mm~810mm compliant)

Option B-3

:

1234U-RMK

1234U rear mounting kit

Option C

:

25-35-BK

1x5.25" to 1x3.5" HDD or 1x3.5" to two 2.5" SSD bracket

Option D-1

:

RW135-12G

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 12G

Option D-2

:

RW135

1x5.25" to 1x3.5" HotSwap Cage SATA/SAS 6G

Option D-3

:

TL135-12G

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option D-4

:

TL135

1x5.25" to 1x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option D-5

:

RW225-12G

1x5.25" to 2x2.5" HotSwap Cage SATA/SAS 12G

Option D-6

:

RW625-12G

1x5.25" to 6x2.5" HotSwap Cage SATA/SAS 12G

Option D-7

:

RW825-1525

1x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option D-8

:

RW425-NVMe

1x5.25" to 4x2.5" SSD Removable Cage U.2 NVMe 32G

Option D-9

:

RW425-12G-MS

1x5.25" to 4x2.5" HotSwap Cage SFF-8643 12G

Option D-10

:

RW425-12G

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 12G

Option D-11

:

RW425

1x5.25" to 4x2.5" HotSwap Cage SATA/SAS 6G

Option E-1

:

2525TO3HDBK

2x5.25" to 3x3.5" bracket

Option E-2

:

RW825

2x5.25" to 8x2.5" HotSwap Cage SATA/SAS 6G

Option E-3

:

RW335-12G

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 12G

Option E-4

:

RW335

2x5.25" to 3x3.5" HotSwap Cage SATA/SAS 6G

Option E-5

:

TL335-12G

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 12G

Option E-6

:

TL335

2x5.25" to 3x3.5" TrayLess HotSwap Cage SATA/SAS 6G

Option F-1

:

1MSAS-4SATA-500MM

SFF-8087 Mini-SAS (Host) to Four SATA (Device) cable

Option F-2

:

SFF-8643-500MM

SFF-8643 Mini-SAS HD (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option F-3

:

4SATA-SFF-8643-500MM

Four SATA (Host) to SFF-8643 Mini-SAS HD (Device) cable

Option F-4

:

SFF-8643-4SATA-500MM

SFF-8643 Mini-SAS HD (Host) to Four SATA (Device) cable

Option G-1

:

2U2011A-8080

2U Intel LGA2011 LGA2066 active CPU cooler Square (2U 3U 4U chassis compatible)

Option G-2

:

2U2011A-5694

2U Intel LGA2011 active CPU cooler Narrow (2U 3U 4U chassis compatible)

Option G-3

:

2U115XA

2U Intel LGA115x Xeon 1230 active CPU cooler (2U 3U 4U chassis compatible)

Option G-4

:

2U4094A-SP3

2U AMD EPYC LGA4094 active CPU cooler SP3 (2U 3U 4U chassis compatible)

Option G-5

:

2U1331A-AM4

2U AMD LGA1331 active CPU cooler AM4 (2U 3U 4U chassis compatible)

Option G-6

:

2U3647A-S82

2U Intel LGA3647 active CPU cooler Square (2U 3U 4U chassis compatible)

Option G-7

:

2U3647A-R82-1

2U Intel LGA3647 active CPU cooler Narrow (2U 3U 4U chassis compatible)

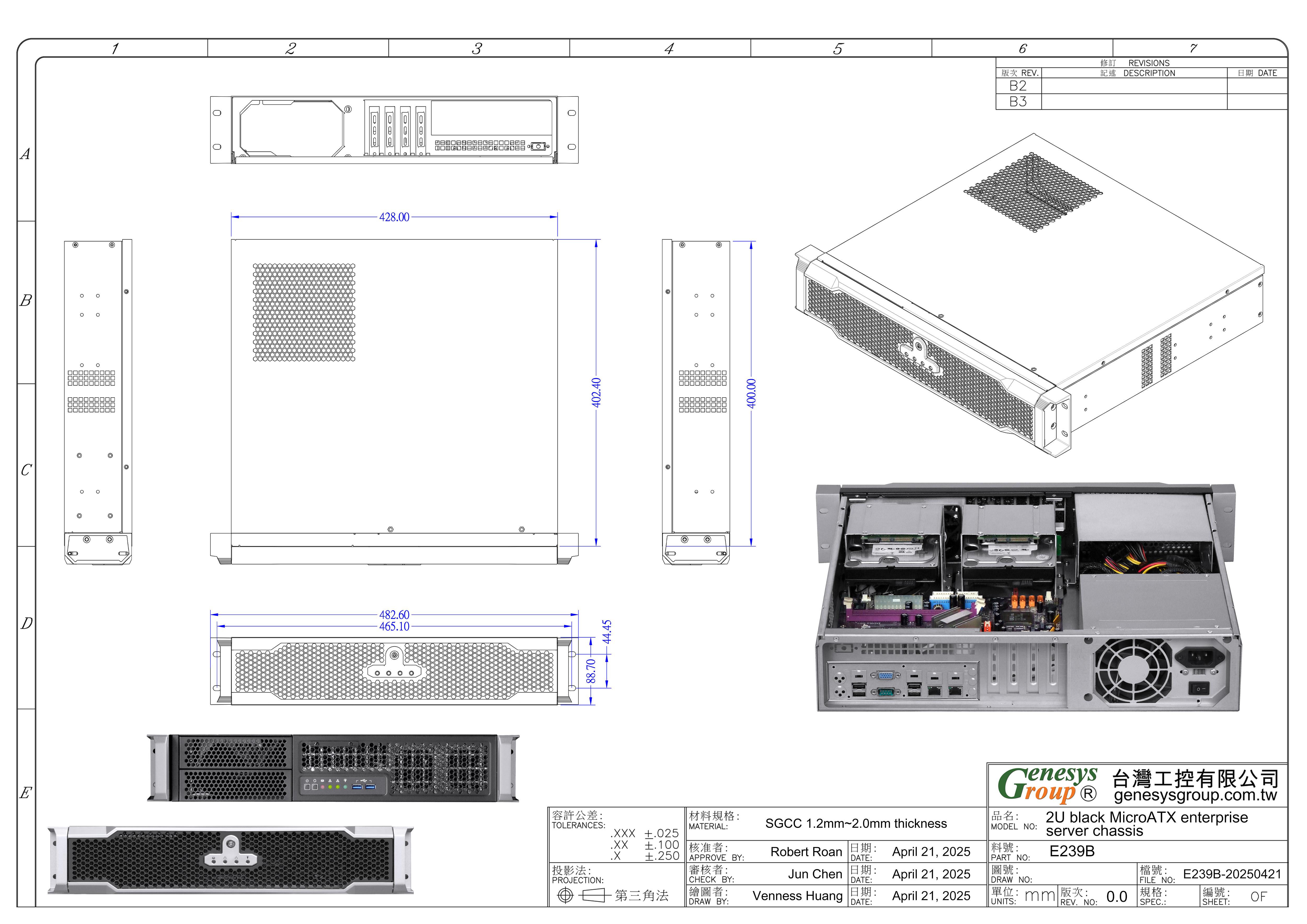

Catalogue        Dimension Drawing        2U accessory       Chassis Quick Assembly Manual       PCB
