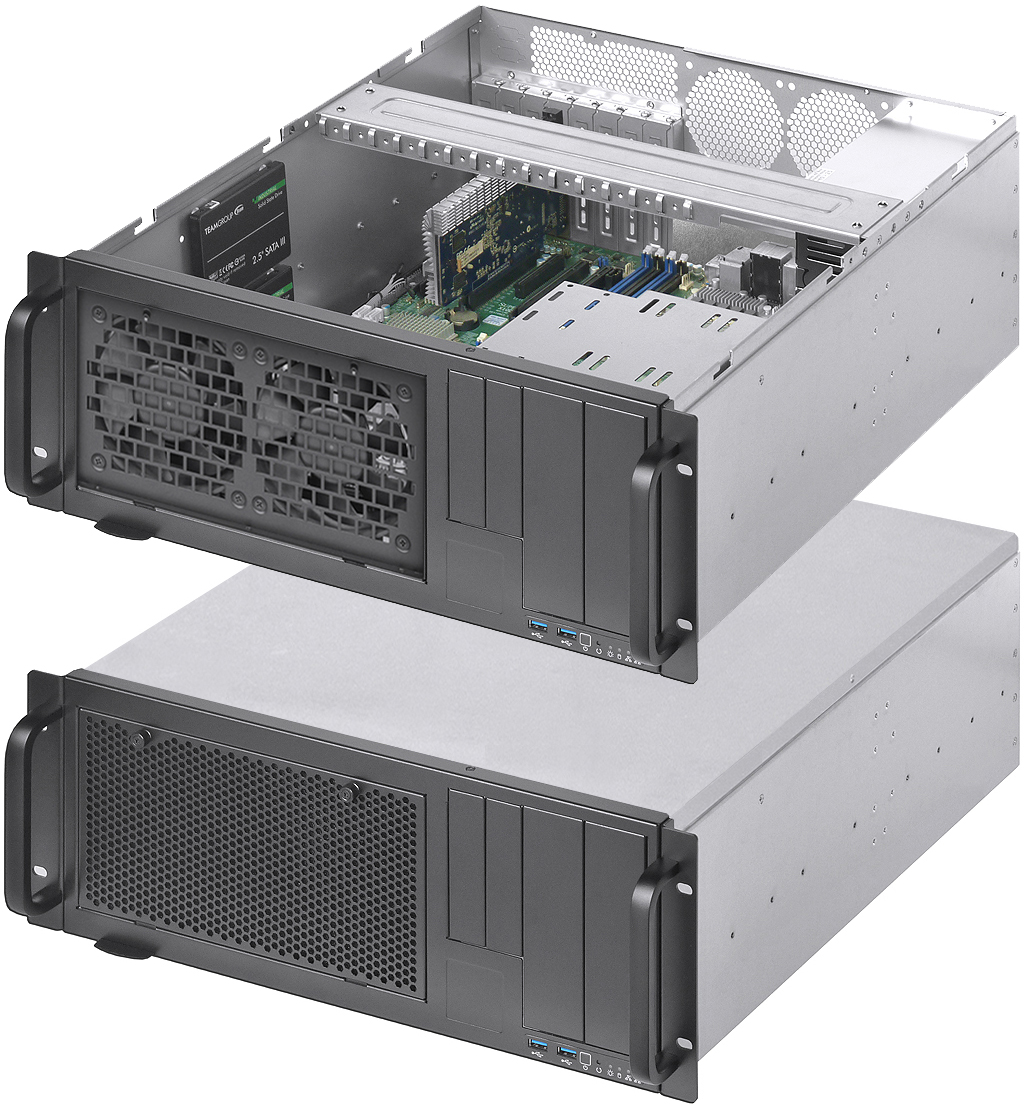

C480G 4U high-performance edge AI server chassis

Product announcement or 1st production dated on December 26, 2025, webpage updated on December 30, 2025

The C480G is a professional-grade 4U chassis engineered specifically for the demands of Edge AI and Inference. With a compact 480mm depth and massive GPU clearance, it bridges the gap between industrial durability and high-end computing power. It meets rigorous Edge AI standards, providing a stable environment for physical AI edge computing and real-time inference, spacious internal layout accommodates high-wattage NVIDIA series and other top-tier AI accelerators with ease. At only 480mm deep, this chassis fits into short-depth racks and space-constrained work environments without sacrificing performance, it supports the MB form factor from standard ATX to eATX SSI EEB (12" x 13"), and even ultra-large specialty motherboards up to 12.638" x 16.15". A versatile design that adapts to your environment such as 4U Rackmount (Standard Server Racks) or Mid-Tower (Vertical Workstation) or Desktop/Horizontal (Lab & Benchtop). Cooling device installed with two 120mm x 38mm high-flow fans at front as standard, and two 80mm fans at rear as option, also most 240mm Water-Cooling Radiators would be compatible as an option. Drive Bays for 2x 5.25" ODD & 2x 3.5" HDD & 2x 2.5" SSD. Backed by a 3-year global warranty, ensuring peace of mind for international deployments, we are currently seeking global distributors and strategic partners to expand the reach of our high-performance AI infrastructure. Join us in powering the future of Edge Computing.

* Storage spaces: 2 x 5.25” ODD, 2 x 3.5” HDD/FDD, 2 x 2.5” SSD

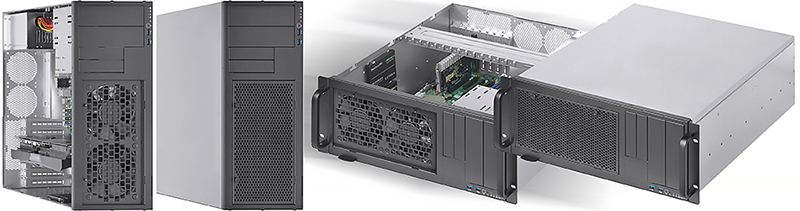

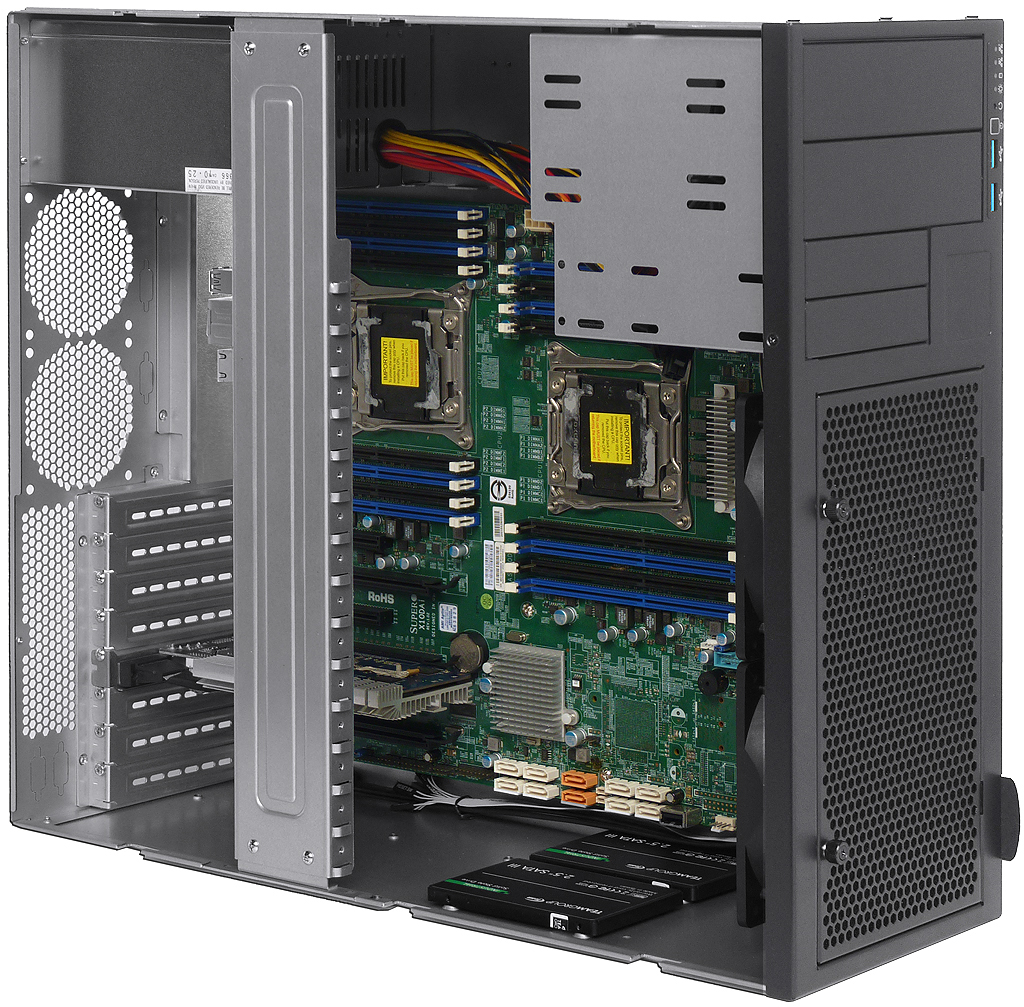

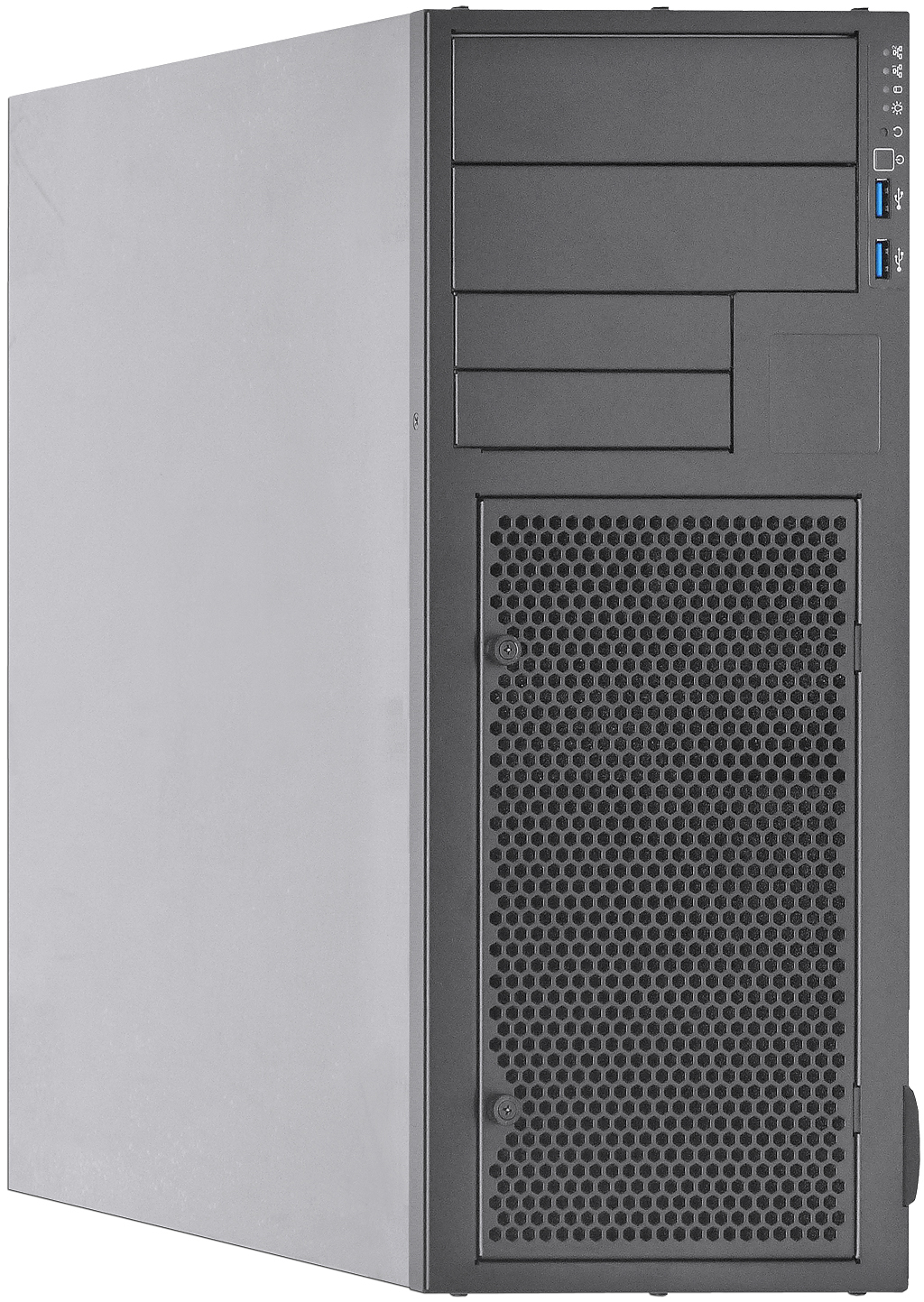

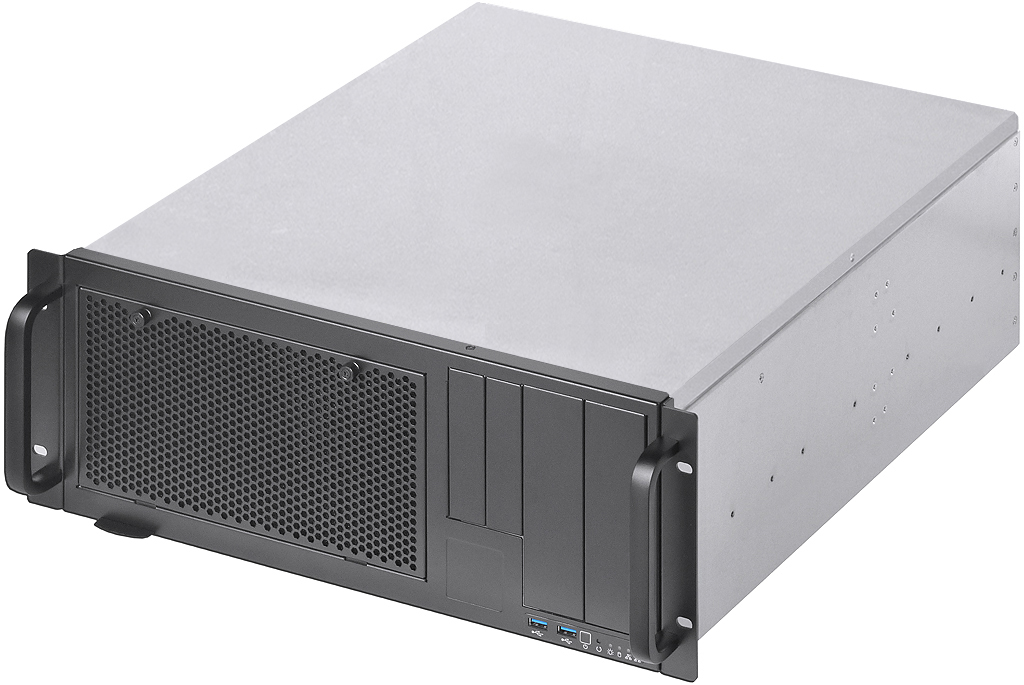

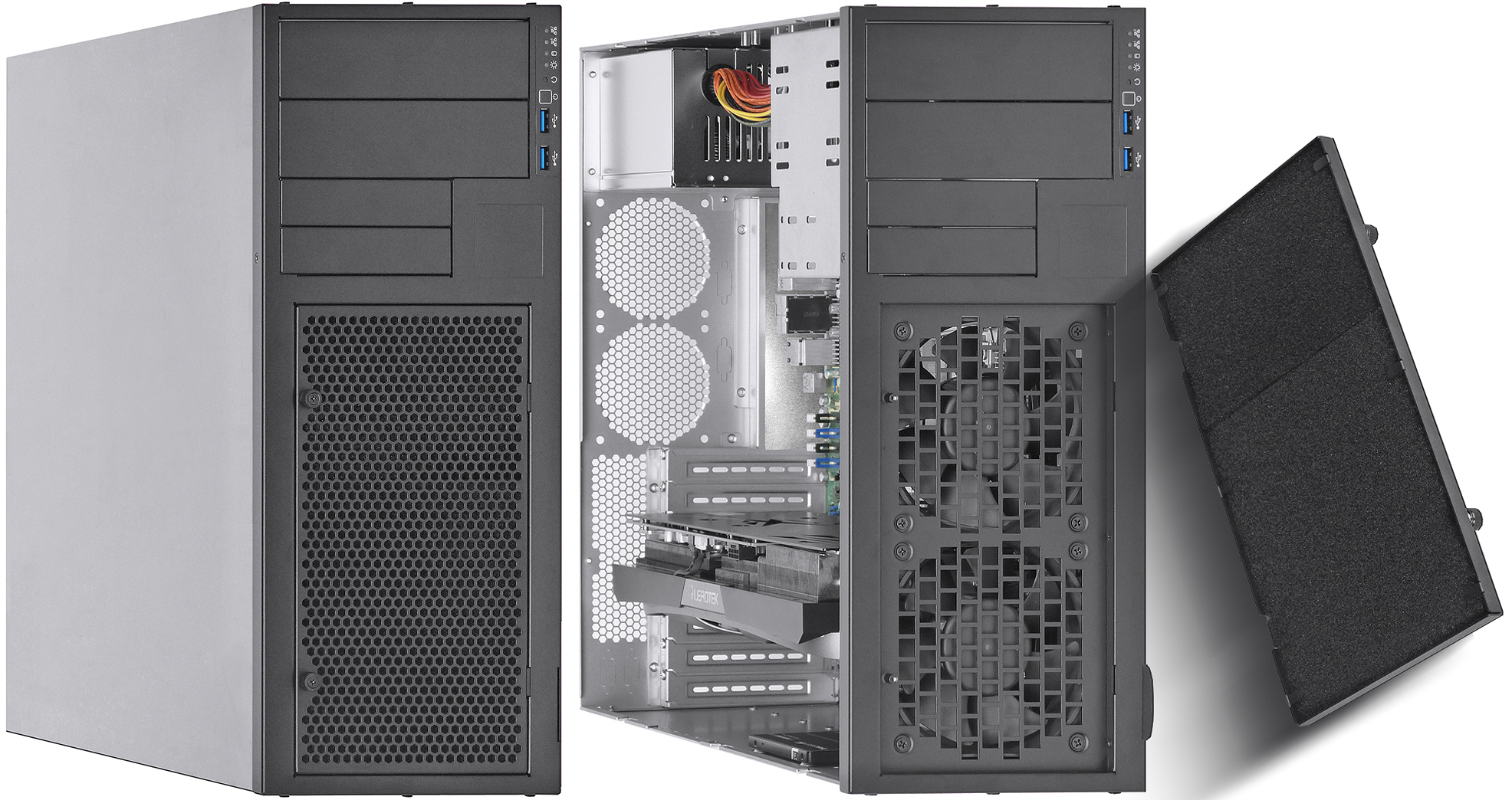

* Suitable for 4U rackmount, mid-tower, desktop/horizontal configurations
* Front panel features two USB 3.0 ports (USB part# E200B-USB)
* High-strength die-cast aluminum alloy handles ensure secure and stable mounting
* Major sheet metal by 1.2mm~2.0mm thick SGCC ultra-high-strength mechanism

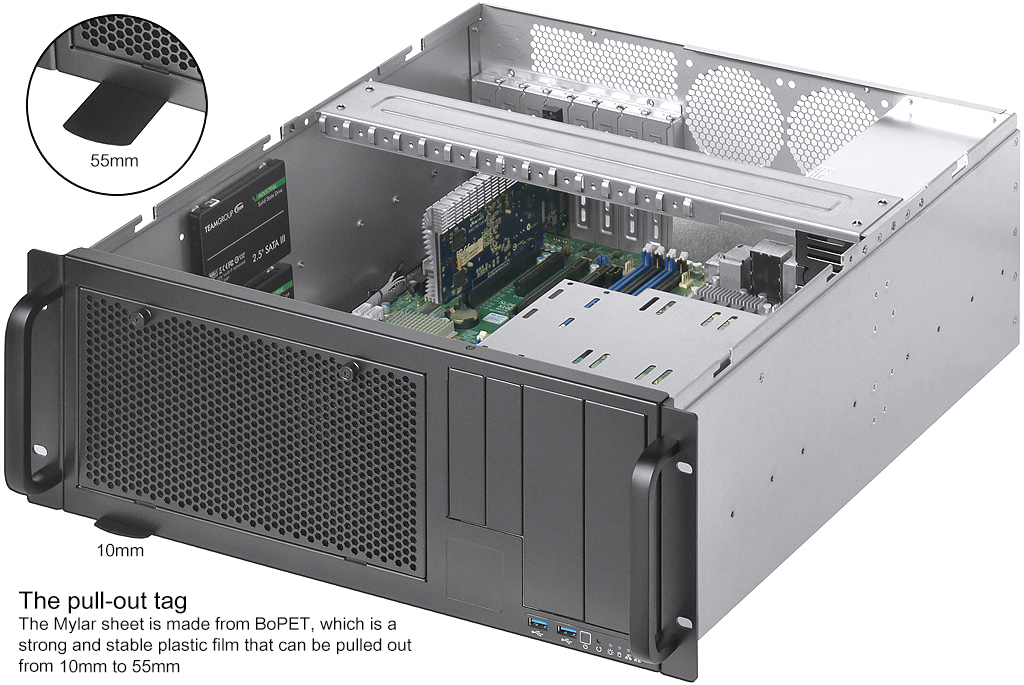

* Front panel includes a pull-out asset / serial number identification tag

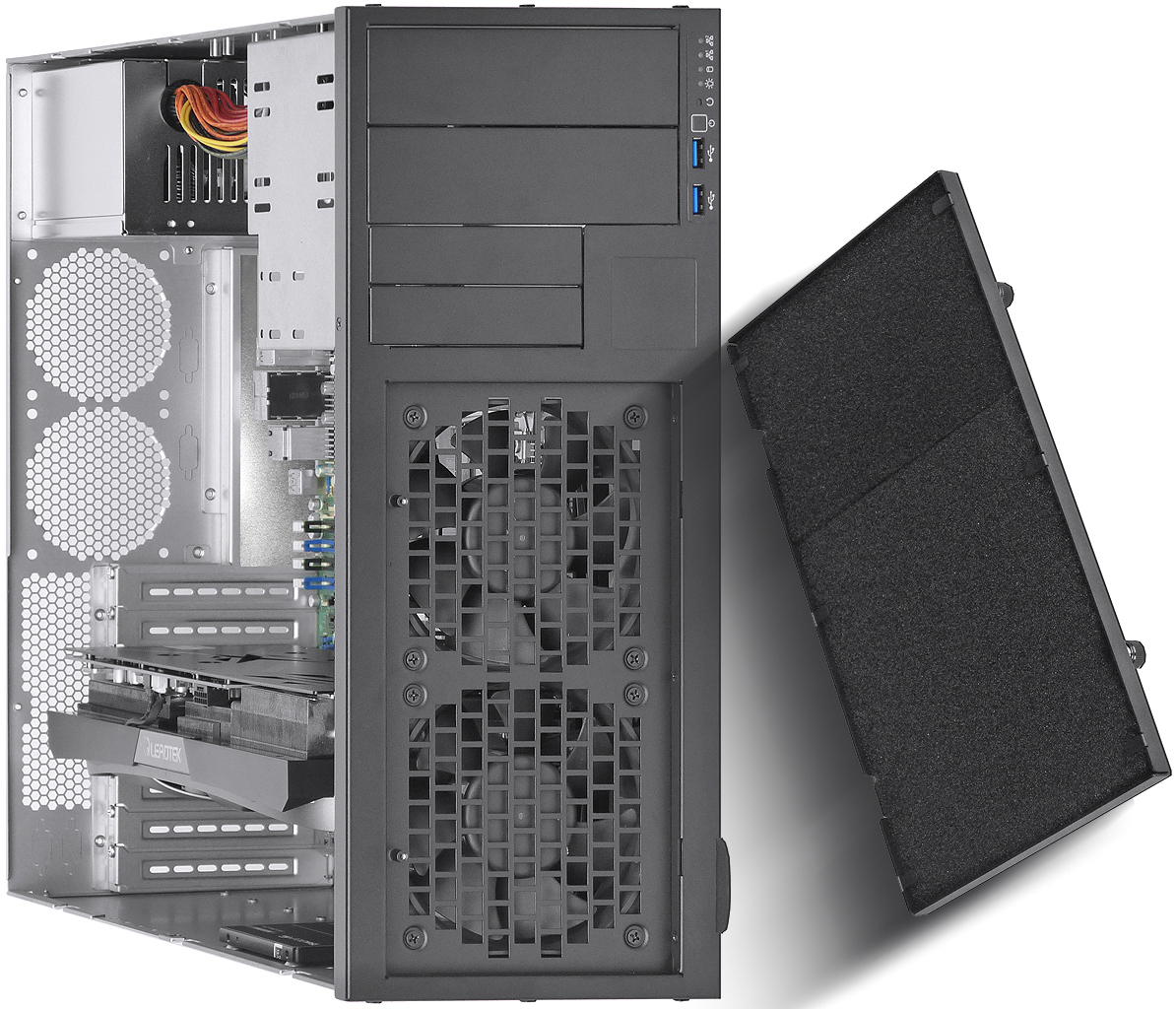

* Front panel includes a dust filter to reduce dust entry into the system
* Optional front panel 120mmx38mm fan duct (customizable based on GPU and MB)
* Two 120mm x 38mm intake fans on the front panel (fan part# SUNTAi12038)
* Optional two 80mm x 25mm / 38mm exhaust fans at rear (fan part# SUNTAi8025/38)

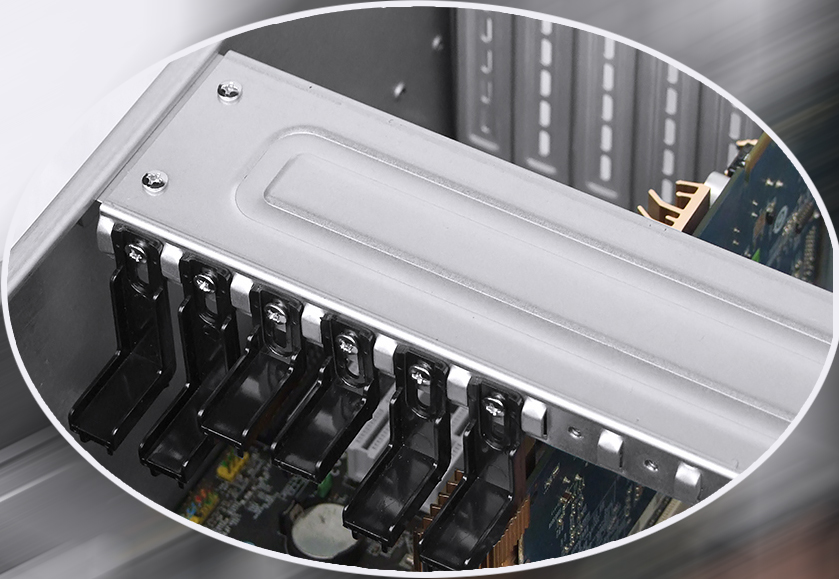

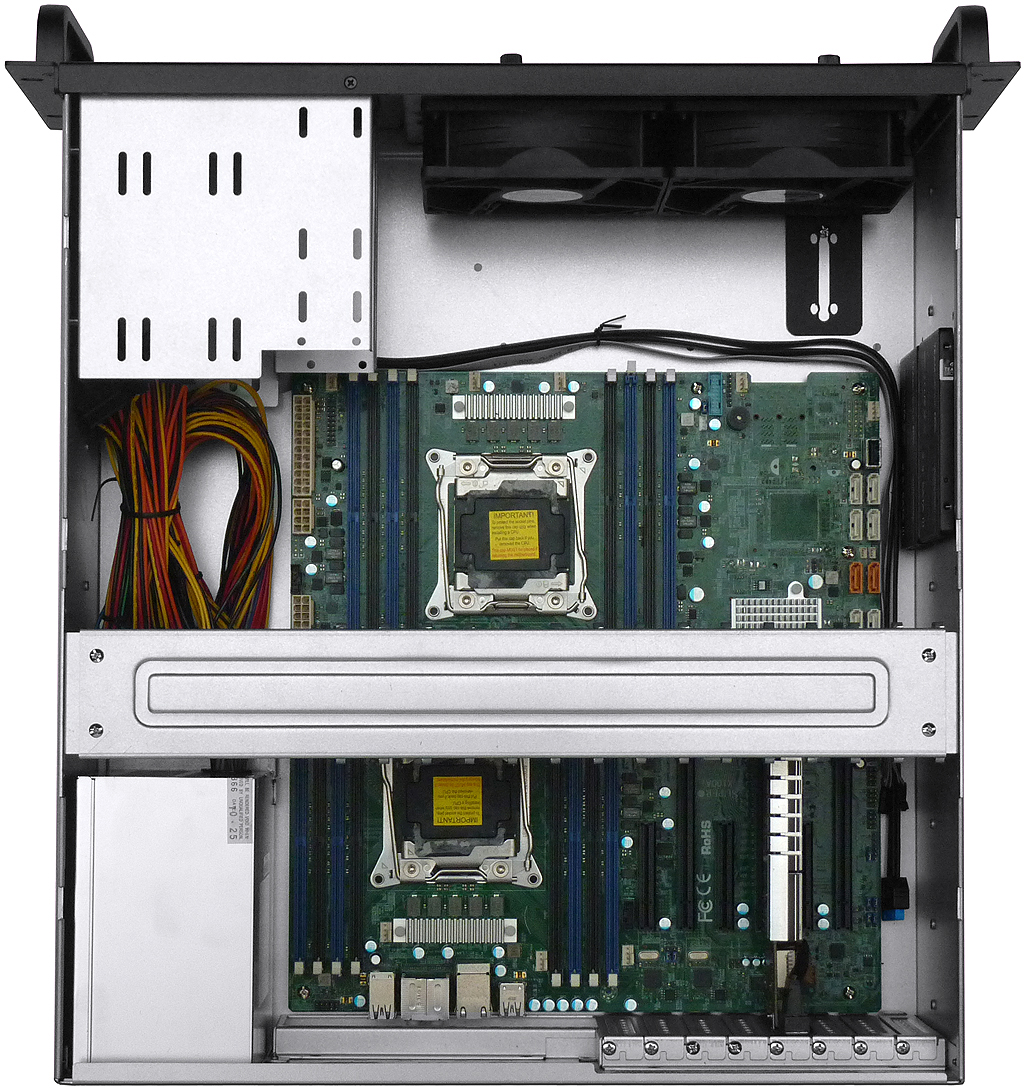

* Forward & backward & height adjustable hold-down card clamps equipped

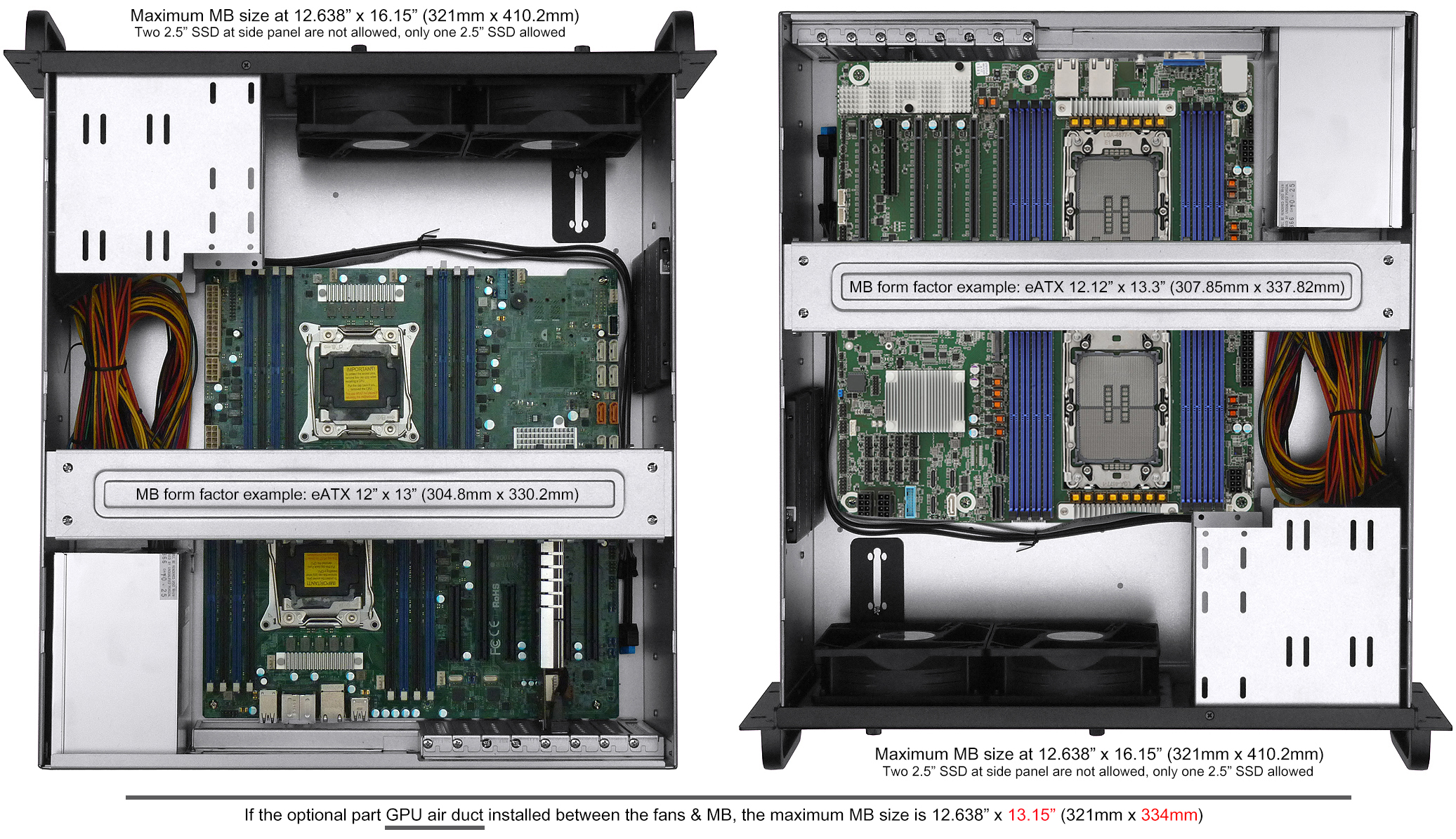

* MB factor: 12.638" x 16.15", eATX SSI EEB (12" x 13"), CEB, ATX, mATX, Mini-ITX
* 8cm or 12cm~14cm fan version standard PS2 PSU compatible (depth at 140~250mm)
* Compatible with SureStar R4S 400W/500W PS2 Mini RPS (RPS depth at 174mm)
* Compatible with SureStar R4B 600W/700W/800W PS2 Mini RPS (RPS depth at 199mm)
* Compatible with Zippy and other brands of PS2 Mini RPS (140mm or 250mm deep)

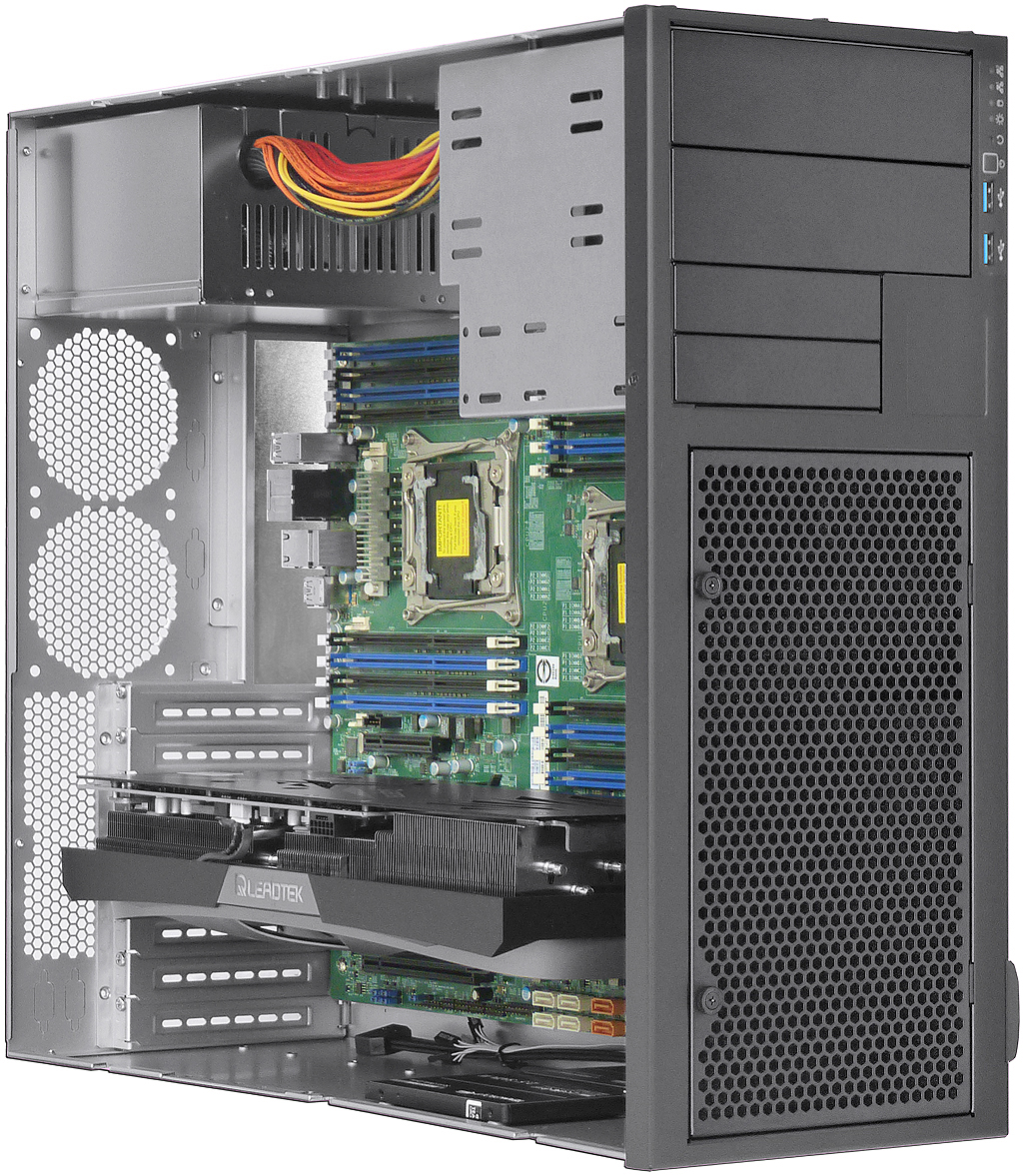

* 8-slot rear panel supports 7-slot NVIDIA or other brand GPU max. 400mm deep allowed
* Standard paint: scratch-resistant black textured at front side of chassis
* Genesys Group chassis with build-in electronics in global 3 years warranty
* Chassis dimension: 19" x 4U x 480mm (18.89" deep)

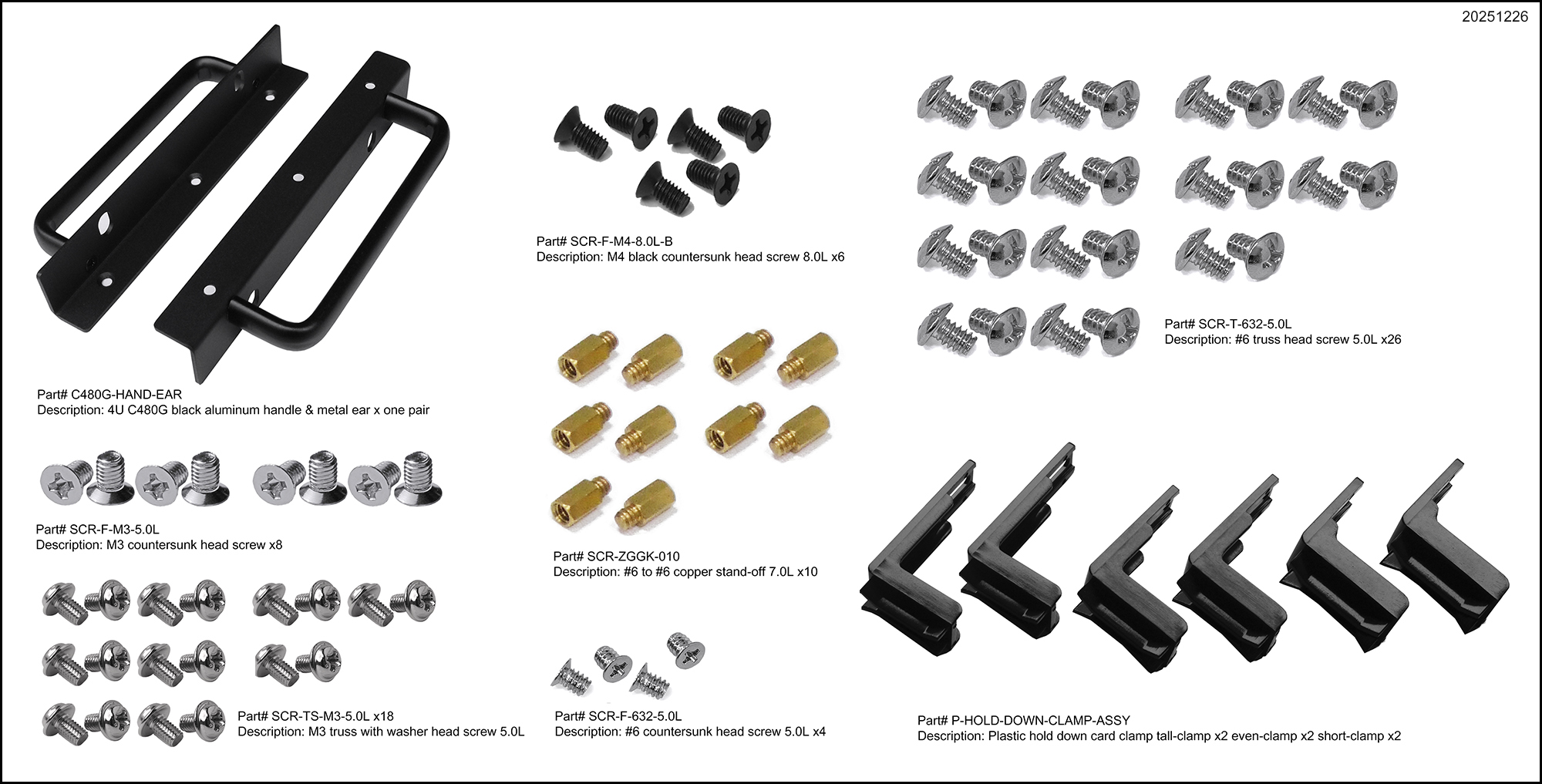

* Accessory: MB stand-off x10, Ear & handle x1 pair, hold-down card clamp x6, screw x62
* Package: NW 10 KGM, GW 11.1 KGM, 3.03 CUFT (carton size at 60x55x26cm)

Model#	:	C480G	4U high-performance edge AI server chassis

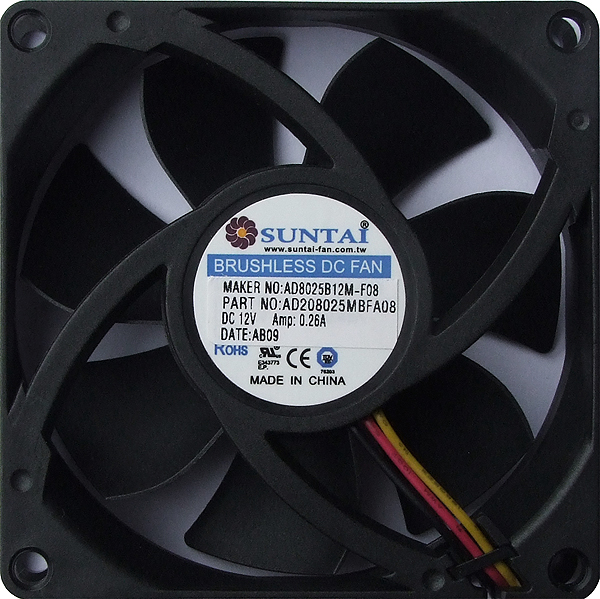

Option A-1	:	SUNTAi8025	SUNTAi 80mm x 25mm two-ball bearing fan CFM 41.89 each (2pcs installable at rear panel)
Option A-2	:	SUNTAi8038	SUNTAi 80mm x 38mm two-ball bearing fan CFM 50.00 each (2pcs installable at rear panel)
Option B-1	:	PS2 PSU	8cm or 12cm~14cm fan version standard PS2 PSU compatible (PSU depth at 140~250mm)
Option B-2	:	PS2 RPS	SureStar R4S 400W/500W PS2 Mini Redundant power supply (RPS depth at 174mm)
Option B-3	:	PS2 RPS	SureStar R4B 600W/700W/800W PS2 Mini Redundant power supply (RPS depth at 199mm)
Option B-4	:	PS2 RPS	Zippy and other brands of PS2 Mini RPS (RPS depth at 140mm or 250mm deep)
Option C-1	:	NJ-600	600mm 2-layer 3-travel universal rail (cabinet internal depth 600~1200mm compliant)
Option C-2	:	1234U-RMK	1234U rear mounting kit
Option D-1	:	AIR-DUCT-SLOT2	C480G 120mmx38mm fan duct slot 2nd
Option D-2	:	AIR-DUCT-SLOT5	C480G 120mmx38mm fan duct slot 5th
Option E	:	3.5" mobile rack	3.5" FDD space HotSwap SSD / HDD mobile rack
Option F	:	5.25" mobile rack	5.25" space HotSwap SSD / HDD mobile rack
Option G	:	Storage cable	Storage cable
Option H	:	2U CPU COOLER	2U CPU coolers (2U 3U 4U chassis compatible)

			Catalogue Dimension Drawing in PDF Dimension Drawing in JPG
